In which are explained
The causes of that which occurs
In REFLEXION, & in REFRACTION

And particularly
In the strange REFRACTION
OF ICELAND CRYSTAL

By

CHRISTIAAN HUYGENS

Rendered into English

By

SILVANUS P. THOMPSON

University of Chicago Press

PREFACE

One may ask why I have so long delayed to bring this work to the light. The reason is that I wrote it rather carelessly in the Language in which it appears, with the intention of translating it into Latin, so doing in order to obtain greater attention to the thing. After which I proposed to myself to give it out along with another Treatise on Dioptrics, in which I explain the effects of Telescopes and those things which belong more to that Science. But the pleasure of novelty being past, I have put off from time to time the execution of this design, and I know not when I shall ever come to an end if it, being often turned aside either by business or by some new study. Considering which I have finally judged that it was better worth while to publish this writing, such as it is, than to let it run the risk, by waiting longer, of remaining lost.

There will be seen in it demonstrations of those kinds which do not produce as great a certitude as those of Geometry, and which even differ much therefrom, since whereas the Geometers prove their Propositions by fixed and incontestable Principles, here the Principles are verified by the conclusions to be drawn from them; the nature of these things not allowing of this being done otherwise.

Contained in this Treatise

TREATISE ON LIGHT

ON RAYS PROPAGATED IN STRAIGHT LINES

s happens in all the sciences in which Geometry is applied to matter, the demonstrations concerning Optics are founded on truths drawn from experience. Such are that the rays of light are propagated in straight lines; that the angles of reflexion and of incidence are equal; and that in refraction the ray is bent according to the law of sines, now so well known, and which is no less certain than the preceding laws.

I shall therefore essay in this book, to give, in accordance with the principles accepted in the Philosophy of the present day, some clearer and more probable reasons, firstly of these properties of light propagated rectilinearly; secondly of light which is reflected on meeting other bodies. Then I shall explain the phenomena of those rays which are said to suffer refraction on passing through transparent bodies of different sorts; and in this part I shall also explain the effects of the refraction of the air by the different densities of the Atmosphere.

It is inconceivable to doubt that light consists in the motion of some sort of matter. For whether one considers its production, one sees that here upon the Earth it is chiefly engendered by fire and flame which contain without doubt bodies that are in rapid motion, since they dissolve and melt many other bodies, even the most solid; or whether one considers its effects, one sees that when light is collected, as by concave mirrors, it has the property of burning as a fire does, that is to say it disunites the particles of bodies. This is assuredly the mark of motion, at least in the true Philosophy, in which one conceives the causes of all natural effects in terms of mechanical motions. This, in my opinion, we must necessarily do, or else renounce all hopes of ever comprehending anything in Physics.

And as, according to this Philosophy, one holds as certain that the sensation of sight is excited only by the impression of some movement of a kind of matter which acts on the nerves at the back of our eyes, there is here yet one reason more for believing that light consists in a movement of the matter which exists between us and the luminous body.

We know that by means of the air, which is an invisible and impalpable body, Sound spreads around the spot where it has been produced, by a movement which is passed on successively from one part of the air to another; and that the spreading of this movement, taking place equally rapidly on all sides, ought to form spherical surfaces ever enlarging and which strike our ears. Now there is no doubt at all that light also comes from the luminous body to our eyes by some movement impressed on the matter which is between the two; since, as we have already seen, it cannot be by the transport of a body which passes from one to the other. If, in addition, light takes time for its passage—which we are now going to examine—it will follow that this movement, impressed on the intervening matter, is successive; and consequently it spreads, as Sound does, by spherical surfaces and waves: for I call them waves from their resemblance to those which are seen to be formed in water when a stone is thrown into it, and which present a successive spreading as circles, though these arise from another cause, and are only in a flat surface.

Let A be the place of the sun, BD a part of the orbit or annual path of the Earth: ABC a straight line which I suppose to meet the orbit of the Moon, which is represented by the circle CD, at C.

It is true that we are here supposing a strange velocity that would be a hundred thousand times greater than that of Sound. For Sound, according to what I have observed, travels about 180 Toises in the time of one Second, or in about one beat of the pulse. But this supposition ought not to seem to be an impossibility; since it is not a question of the transport of a body with so great a speed, but of a successive movement which is passed on from some bodies to others. I have then made no difficulty, in meditating on these things, in supposing that the emanation of light is accomplished with time, seeing that in this way all its phenomena can be explained, and that in following the contrary opinion everything is incomprehensible. For it has always seemed tome that even Mr. Des Cartes, whose aim has been to treat all the subjects of Physics intelligibly, and who assuredly has succeeded in this better than any one before him, has said nothing that is not full of difficulties, or even inconceivable, in dealing with Light and its properties.

But that which I employed only as a hypothesis, has recently received great seemingness as an established truth by the ingenious proof of Mr. Römer which I am going here to relate, expecting him himself to give all that is needed for its confirmation. It is founded as is the preceding argument upon celestial observations, and proves not only that Light takes time for its passage, but also demonstrates how much time it takes, and that its velocity is even at least six times greater than that which I have just stated.

Now in quantities of observations of these Eclipses, made during ten consecutive years, these differences have been found to be very considerable, such as ten minutes and more; and from them it has been concluded that in order to traverse the whole diameter of the annual orbit KL, which is double the distance from here to the sun, Light requires about 22 minutes of time.

The movement of Jupiter in his orbit while the Earth passed from B to C, or from D to E, is included in this calculation; and this makes it evident that one cannot attribute the retardation of these illuminations or the anticipation of the eclipses, either to any irregularity occurring in the movement of the little planet or to its eccentricity.

Now if one examines what this matter may be in which the movement coming from the luminous body is propagated, which I call Ethereal matter, one will see that it is not the same that serves for the propagation of Sound. For one finds that the latter is really that which we feel and which we breathe, and which being removed from any place still leaves there the other kind of matter that serves to convey Light. This may be proved by shutting up a sounding body in a glass vessel from which the air is withdrawn by the machine which Mr. Boyle has given us, and with which he has performed so many beautiful experiments. But in doing this of which I speak, care must be taken to place the sounding body on cotton or on feathers, in such a way that it cannot communicate its tremors either to the glass vessel which encloses it, or to the machine; a precaution which has hitherto been neglected. For then after having exhausted all the air one hears no Sound from the metal, though it is struck.

And this last point is demonstrated even more clearly by the celebrated experiment of Torricelli, in which the tube of glass from which the quicksilver has withdrawn itself, remaining void of air, transmits Light just the same as when air is in it. For this proves that a matter different from air exists in this tube, and that this matter must have penetrated the glass or the quicksilver, either one or the other, though they are both impenetrable to the air. And when, in the same experiment, one makes the vacuum after putting a little water above the quicksilver, one concludes equally that the said matter passes through glass or water, or through both.

As regards the different modes in which I have said the movements of Sound and of Light are communicated, one may sufficiently comprehend how this occurs in the case of Sound if one considers that the air is of such a nature that it can be compressed and reduced to a much smaller space than that which it ordinarily occupies. And in proportion as it is compressed the more does it exert an effort to regain its volume; for this property along with its penetrability, which remains notwithstanding its compression, seems to prove that it is made up of small bodies which float about and which are agitated very rapidly in the ethereal matter composed of much smaller parts. So that the cause of the spreading of Sound is the effort which these little bodies make in collisions with one another, to regain freedom when they are a little more squeezed together in the circuit of these waves than elsewhere.

When one takes a number of spheres of equal size, made of some very hard substance, and arranges them in a straight line, so that they touch one another, one finds, on striking with a similar sphere against the first of these spheres, that the motion passes as in an instant to the last of them, which separates itself from the row, without one's being able to perceive that the others have been stirred. And even that one which was used to strike remains motionless with them. Whence one sees that the movement passes with an extreme velocity which is the greater, the greater the hardness of the substance of the spheres.

Now in applying this kind of movement to that which produces Light there is nothing to hinder us from estimating the particles of the ether to be of a substance as nearly approaching to perfect hardness and possessing a springiness as prompt as we choose. It is not necessary to examine here the causes of this hardness, or of that springiness, the consideration of which would lead us too far from our subject. I will say, however, in passing that we may conceive that the particles of the ether, notwithstanding their smallness, are in turn composed of other parts and that their springiness consists in the very rapid movement of a subtle matter which penetrates them from every side and constrains their structure to assume such a disposition as to give to this fluid matter the most overt and easy passage possible. This accords with the explanation which Mr. Des Cartes gives for the spring, though I do not, like him, suppose the pores to be in the form of round hollow canals. And it must not be thought that in this there is anything absurd or impossible, it being on the contrary quite credible that it is this infinite series of different sizes of corpuscles, having different degrees of velocity, of which Nature makes use to produce so many marvellous effects.

Equality of size seems to be more necessary, because otherwise there ought to be some reflexion of movement backwards when it passes from a smaller particle to a larger one, according to the Laws of Percussion which I published some years ago.

However, one will see hereafter that we have to suppose such an equality not so much as a necessity for the propagation of light as for rendering that propagation easier and more powerful; for it is not beyond the limits of probability that the particles of the ether have been made equal for a purpose so important as that of light, at least in that vast space which is beyond the region of atmosphere and which seems to serve only to transmit the light of the Sun and the Stars.

I have then shown in what manner one may conceive Light to spread successively, by spherical waves, and how it is possible that this spreading is accomplished with as great a velocity as that which experiments and celestial observations demand. Whence it may be further remarked that although the particles are supposed to be in continual movement (for there are many reasons for this) the successive propagation of the waves cannot be hindered by this; because the propagation consists nowise in the transport of those particles but merely in a small agitation which they cannot help communicating to those surrounding, notwithstanding any movement which may act on them causing them to be changing positions amongst themselves.

But as the percussions at the centres of these waves possess no regular succession, it must not be supposed that the waves themselves follow one another at equal distances: and if the distances marked in the figure appear to be such, it is rather to mark the progression of one and the same wave at equal intervals of time than to represent several of them issuing from one and the same centre.

There is the further consideration in the emanation of these waves, that each particle of matter in which a wave spreads, ought not to communicate its motion only to the next particle which is in the straight line drawn from the luminous point, but that it also imparts some of it necessarily to all the others which touch it and which oppose themselves to its movement. So it arises that around each particle there is made a wave of which that particle is the centre. Thus if DCF is a wave emanating from the luminous point A, which is its centre, the particle B, one of those comprised within the sphere DCF, will have made its particular or partial wave KCL, which will touch the wave DCF at C at the same moment that the principal wave emanating from the point A has arrived at DCF; and it is clear that it will be only the region C of the wave KCL which will touch the wave DCF, to wit, that which is in the straight line drawn through AB. Similarly the other particles of the sphere DCF, such as bb, dd, etc., will each make its own wave. But each of these waves can be infinitely feeble only as compared with the wave DCF, to the composition of which all the others contribute by the part of their surface which is most distant from the centre A.

And hence one sees the reason why light, at least if its rays are not reflected or broken, spreads only by straight lines, so that it illuminates no object except when the path from its source to that object is open along such lines.

For if, for example, there were an opening BG, limited by opaque bodies BH, GI, the wave of light which issues from the point A will always be terminated by the straight lines AC, AE, as has just been shown; the parts of the partial waves which spread outside the space ACE being too feeble to produce light there.

Now, however small we make the opening BG, there is always the same reason causing the light there to pass between straight lines; since this opening is always large enough to contain a great number of particles of the ethereal matter, which are of an inconceivable smallness; so that it appears that each little portion of the wave necessarily advances following the straight line which comes from the luminous point. Thus then we may take the rays of light as if they were straight lines.

It appears, moreover, by what has been remarked touching the feebleness of the particular waves, that it is not needful that all the particles of the Ether should be equal amongst themselves, though equality is more apt for the propagation of the movement. For it is true that inequality will cause a particle by pushing against another larger one to strive to recoil with a part of its movement; but it will thereby merely generate backwards towards the luminous point some partial waves incapable of causing light, and not a wave compounded of many as CE was.

ON REFLEXION

aving explained the effects of waves of light which spread in a homogeneous matter, we will examine next that which happens to them on encountering other bodies. We will first make evident how the Reflexion of light is explained by these same waves, and why it preserves equality of angles.

If one considers further the other pieces H of the wave AC, it appears that they will not only have reached the surface AB by straight lines HK parallel to CB, but that in addition they will have generated in the transparent air, from the centres K, K, K, particular spherical waves, represented here by circumferences the semi-diameters of which are equal to KM, that is to say to the continuations of HK as far as the line BG parallel to AC. But all these circumferences have as a common tangent the straight line BN, namely the same which is drawn from B as a tangent to the first of the circles, of which A is the centre, and AN the semi-diameter equal to BC, as is easy to see.

Now it is apparent here that the angle of reflexion is made equal to the angle of incidence. For the triangles ACB, BNA being rectangular and having the side AB common, and the side CB equal to NA, it follows that the angles opposite to these sides will be equal, and therefore also the angles CBA, NAB. But as CB, perpendicular to CA, marks the direction of the incident ray, so AN, perpendicular to the wave BN, marks the direction of the reflected ray; hence these rays are equally inclined to the plane AB.

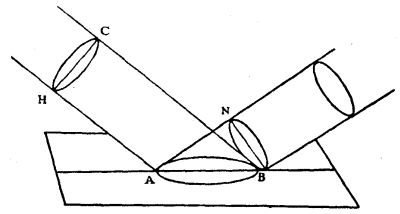

One sees also that the said spheres of the partial waves cannot have any common tangent plane other than the circle BN; so that it will be this plane where there will be more reflected movement than anywhere else, and which will therefore carry on the light in continuance from the wave CH.

ON REFRACTION

n the same way as the effects of Reflexion have been explained by waves of light reflected at the surface of polished bodies, we will explain transparency and the phenomena of refraction by waves which spread within and across diaphanous bodies, both solids, such as glass, and liquids, such as water, oils, etc. But in order that it may not seem strange to suppose this passage of waves in the interior of these bodies, I will first show that one may conceive it possible in more than one mode.

One can then in this way conceive of transparency in a solid without any necessity that the ethereal matter which serves for light should pass through it, or that it should find pores in which to insinuate itself. But the truth is that this matter not only passes through solids, but does so even with great facility; of which the experiment of Torricelli, above cited, is already a proof. Because on the quicksilver and the water quitting the upper part of the glass tube, it appears that it is immediately filled with ethereal matter, since light passes across it. But here is another argument which proves this ready penetrability, not only in transparent bodies but also in all others.

The second mode then of explaining transparency, and one which appears more probably true, is by saying that the waves of light are carried on in the ethereal matter, which continuously occupies the interstices or pores of transparent bodies. For since it passes through them continuously and freely, it follows that they are always full of it. And one may even show that these interstices occupy much more space than the coherent particles which constitute the bodies. For if what we have just said is true: that force is required to impress a certain horizontal velocity on bodies in proportion as they contain coherent matter; and if the proportion of this force follows the law of weights, as is confirmed by experiment, then the quantity of the constituent matter of bodies also follows the proportion of their weights. Now we see that water weighs only one fourteenth part as much as an equal portion of quicksilver: therefore the matter of the water does not occupy the fourteenth part of the space which its mass obtains. It must even occupy much less of it, since quicksilver is less heavy than gold, and the matter of gold is by no means dense, as follows from the fact that the matter of the vortices of the magnet and of that which is the cause of gravity pass very freely through it.

This is no small difficulty. It may, however, be resolved by saying that the very violent and rapid motion of the subtle matter which renders water liquid, by agitating the particles of which it is composed, maintains this liquidity in spite of the pressure which hitherto any one has been minded to apply to it.

The rarity of transparent bodies being then such as we have said, one easily conceives that the waves might be carried on in the ethereal matter which fills the interstices of the particles. And, moreover, one may believe that the progression of these waves ought to be a little slower in the interior of bodies, by reason of the small detours which the same particles cause. In which different velocity of light I shall show the cause of refraction to consist.

Before doing so, I will indicate the third and last mode in which transparency may be conceived; which is by supposing that the movement of the waves of light is transmitted indifferently both in the particles of the ethereal matter which occupy the interstices of bodies, and in the particles which compose them, so that the movement passes from one to the other. And it will be seen hereafter that this hypothesis serves excellently to explain the double refraction of certain transparent bodies.

Furthermore, if the particles of transparent bodies have a recoil a little less prompt than that of the ethereal particles, which nothing hinders us from supposing, it will again follow that the progression of the waves of light will be slower in the interior of such bodies than it is outside in the ethereal matter.

Whence then, one will say, does their opacity come? Is it because the particles which compose them are soft; that is to say, these particles being composed of others that are smaller, are they capable of changing their figure on receiving the pressure of the ethereal particles, the motion of which they thereby damp, and so hinder the continuance of the waves of light? That cannot be: for if the particles of the metals are soft, how is it that polished silver and mercury reflect light so strongly? What I find to be most probable herein, is to say that metallic bodies, which are almost the only really opaque ones, have mixed amongst their hard particles some soft ones; so that some serve to cause reflexion and the others to hinder transparency; while, on the other hand, transparent bodies contain only hard particles which have the faculty of recoil, and serve together with those of the ethereal matter for the propagation of the waves of light, as has been said.

Let us pass now to the explanation of the effects of Refraction, assuming, as we have done, the passage of waves of light through transparent bodies, and the diminution of velocity which these same waves suffer in them.

Another property, similar to this, is that the refractions are reciprocal between the rays entering into a transparent body and those which are leaving it. That is to say that if the ray AB in entering the transparent body is refracted into BC, then likewise CB being taken as a ray in the interior of this body will be refracted, on passing out, into BA.

Now all these circumferences have for a common tangent the straight line BN; namely the same line which is drawn as a tangent from the point B to the circumference SNR which we considered first. For it is easy to see that all the other circumferences will touch the same BN, from B up to the point of contact N, which is the same point where AN falls perpendicularly on BN.

It is then BN, which is formed by small arcs of these circumferences, which terminates the movement that the wave AC has communicated within the transparent body, and where this movement occurs in much greater amount than anywhere else. And for that reason this line, in accordance with what has been said more than once, is the propagation of the wave AC at the moment when its piece C has reached B. For there is no other line below the plane AB which is, like BN, a common tangent to all these partial waves. And if one would know how the wave AC has come progressively to BN, it is necessary only to draw in the same figure the straight lines KO parallel to BN, and all the lines KL parallel to AC. Thus one will see that the wave CA, from being a straight line, has become broken in all the positions LKO successively, and that it has again become a straight line at BN. This being evident by what has already been demonstrated, there is no need to explain it further.

Whence it is easy to recognize this chief property of refraction, namely that the Sine of the angle DAE has always the same ratio to the Sine of the angle NAF, whatever be the inclination of the ray DA: and that this ratio is the same as that of the velocity of the waves in the transparent substance which is towards AE to their velocity in the transparent substance towards AF. For, considering AB as the radius of a circle, the Sine of the angle BAC is BC, and the Sine of the angle ABN is AN. But the angle BAC is equal to DAE, since each of them added to CAE makes a right angle. And the angle ABN is equal to NAF, since each of them with BAN makes a right angle. Then also the Sine of the angle DAE is to the Sine of NAF as BC is to AN. But the ratio of BC to AN was the same as that of the velocities of light in the substance which is towards AE and in that which is towards AF; therefore also the Sine of the angle DAE will be to the Sine of the angle NAF the same as the said velocities of light.

Hence one sees the reciprocal relation of the refractions of the ray on entering and on leaving one and the same transparent body: namely that if NA falling on the external surface AB is refracted into the direction AD, so the ray AD will be refracted on leaving the transparent body into the direction AN.

One sees also the reason for a noteworthy accident which happens in this refraction: which is this, that after a certain obliquity of the incident ray DA, it begins to be quite unable to penetrate into the other transparent substance. For if the angle DAQ or CBA is such that in the triangle ACB, CB is equal to 2/3 of AB, or is greater, then AN cannot form one side of the triangle ANB, since it becomes equal to or greater than AB: so that the portion of wave BN cannot be found anywhere, neither consequently can AN, which ought to be perpendicular to it. And thus the incident ray DA does not then pierce the surface AB.

But it might here be asked: since the meeting of the wave AC against the surface AB ought to produce movement in the matter which is on the other side, why does no light pass there? To which the reply is easy if one remembers what has been said before. For although it generates an infinitude of partial waves in the matter which is at the other side of AB, these waves never have a common tangent line (either straight or curved) at the same moment; and so there is no line terminating the propagation of the wave AC beyond the plane AB, nor any place where the movement is gathered together in sufficiently great quantity to produce light. And one will easily see the truth of this, namely that CB being larger than 2/3 of AB, the waves excited beyond the plane AB will have no common tangent if about the centres K one then draws circles having radii equal to 3/2 of the lengths LB to which they correspond. For all these circles will be enclosed in one another and will all pass beyond the point B.

And because a slight diminution of the angle of incidence DAQ causes the wave BN, however great it was, to be reduced to zero, (for this angle being 49 degrees 11 minutes in the glass, the angle BAN is still 11 degrees 21 minutes, and the same angle being reduced by one degree only the angle BAN is reduced to zero, and so the wave BN reduced to a point) thence it comes about that the interior reflexion from being obscure becomes suddenly bright, so soon as the angle of incidence is such that it no longer gives passage to the refraction.

Experience, moreover, teaches us that these two reflexions are of nearly equal force, and that in different transparent bodies they are so much the stronger as the refraction of these bodies is the greater. Thus one sees manifestly that the reflexion of glass is stronger than that of water, and that of diamond stronger than that of glass.

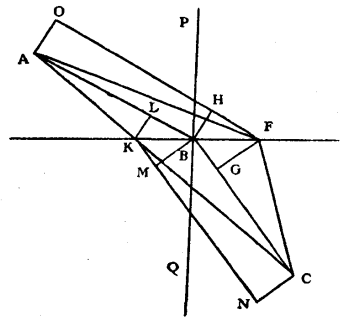

Since then the angle HBF is equal to PBA, and the angle BFG equal to QBC, it follows that the sine of the angle HBF will also have the same ratio to the sine of BFG, as the velocity of light in the medium A is to its velocity in the medium C. But these sines are the straight lines HF, BG, if we take BF as the semi-diameter of a circle. Then these lines HF, BG, will bear to one another the said ratio of the velocities. And, therefore, the time of the light along HF, supposing that the ray had been OF, would be equal to the time along BG in the interior of the medium C. But the time along AB is equal to the time along OH; therefore the time along OF is equal to the time along AB, BG. Again the time along FC is greater than that along GC; then the time along OFC will be longer than that along ABC. But AF is longer than OF, then the time along AFC will by just so much more exceed the time along ABC.

Now let us assume that the ray has come from A to C along AK, KC; the point of refraction K being nearer to A than the point B is; and let CN be the perpendicular upon BC, KN parallel to BC: BM perpendicular upon KN, and KL upon BA.

ON THE REFRACTION OF THE AIR

e have shown how the movement which constitutes light spreads by spherical waves in any homogeneous matter. And it is evident that when the matter is not homogeneous, but of such a constitution that the movement is communicated in it more rapidly toward one side than toward another, these waves cannot be spherical: but that they must acquire their figure according to the different distances over which the successive movement passes in equal times.

Let BC be the wave which brings the light to the spectator who is at B, and let BD be the straight line which intersects this wave at right angles. Now because the ray or straight line by which we judge the spot where the object appears to us is nothing else than the perpendicular to the wave that reaches our eye, as will be understood by what was said above, it is manifest that the point A will be perceived as being in the line BD, and therefore higher than in fact it is.

ON THE STRANGE REFRACTION OF ICELAND CRYSTAL

1.

2. The first knowledge which the public has had about it is due to Mr. Erasmus Bartholinus, who has given a description of Iceland Crystal and of its chief phenomena. But here I shall not desist from giving my own, both for the instruction of those who may not have seen his book, and because as respects some of these phenomena there is a slight difference between his observations and those which I have made: for I have applied myself with great exactitude to examine these properties of refraction, in order to be quite sure before undertaking to explain the causes of them.

3. As regards the hardness of this stone, and the property which it has of being easily split, it must be considered rather as a species of Talc than of Crystal. For an iron spike effects an entrance into it as easily as into any other Talc or Alabaster, to which it is equal in gravity.

5. Of the solid angles there are two opposite to one another, such as C and E, which are each composed of three equal obtuse plane angles. The other six are composed of two acute angles and one obtuse. All that I have just said has been likewise remarked by Mr. Bartholinus in the aforesaid treatise; if we differ it is only slightly about the values of the angles. He recounts moreover some other properties of this Crystal; to wit, that when rubbed against cloth it attracts straws and other light things as do amber, diamond, glass, and Spanish wax. Let a piece be covered with water for a day or more, the surface loses its natural polish. When aquafortis is poured on it it produces ebullition, especially, as I have found, if the Crystal has been pulverized. I have also found by experiment that it may be heated to redness in the fire without being in anywise altered or rendered less transparent; but a very violent fire calcines it nevertheless. Its transparency is scarcely less than that of water or of Rock Crystal, and devoid of colour. But rays of light pass through it in another fashion and produce those marvellous refractions the causes of which I am now going to try to explain; reserving for the end of this Treatise the statement of my conjectures touching the formation and extraordinary configuration of this Crystal.

6. In all other transparent bodies that we know there is but one sole and simple refraction; but in this substance there are two different ones. The effect is that objects seen through it, especially such as are placed right against it, appear double; and that a ray of sunlight, falling on one of its surfaces, parts itself into two rays and traverses the Crystal thus.

9. Now if one covers the surface AB, leaving there only a small aperture at the point K, situated in the straight line CG, and if one exposes it to the sun, so that his rays face it perpendicularly above, then the ray IK will divide itself at the point K into two, one of which will continue to go on straight by KL, and the other will separate itself along the straight line KM, which is in the plane GCFH, and which makes with KL an angle of about 6 degrees 40 minutes, tending from the side of the solid angle C; and on emerging from the other side of the Crystal it will turn again parallel to JK, along MZ. And as, in this extraordinary refraction, the point M is seen by the refracted ray MKI, which I consider as going to the eye at I, it necessarily follows that the point L, by virtue of the same refraction, will be seen by the refracted ray LRI, so that LR will be parallel to MK if the distance from the eye KI is supposed very great. The point L appears then as being in the straight line IRS; but the same point appears also, by ordinary refraction, to be in the straight line IK, hence it is necessarily judged to be double. And similarly if L be a small hole in a sheet of paper or other substance which is laid against the Crystal, it will appear when turned towards daylight as if there were two holes, which will seem the wider apart from one another the greater the thickness of the Crystal.

11. I recognized at first by these experiments and by some others that of the two refractions which the ray suffers in this Crystal, there is one which follows the ordinary rules; and it is this to which the rays KL and OQ belong. This is why I have distinguished this ordinary refraction from the other; and having measured it by exact observation, I found that its proportion, considered as to the Sines of the angles which the incident and refracted rays make with the perpendicular, was very precisely that of 5 to 3, as was found also by Mr. Bartholinus, and consequently much greater than that of Rock Crystal, or of glass, which is nearly 3 to 2.

13. Then one will know the length and position of the lines NH, EM, and of HE, which is the thickness of the Crystal: which lines being traced separately upon a plan, and then joining NE and NM which cuts HE at P, the proportion of the refraction will be that of EN to NP, because these lines are to one another as the sines of the angles NPH, NEP, which are equal to those which the incident ray ON and its refraction NE make with the perpendicular to the surface. This proportion, as I have said, is sufficiently precisely as 5 to 3, and is always the same for all inclinations of the incident ray.

15. But I found in this refraction that the ratio of FR to RS was not constant, like the ordinary refraction, but that it varied with the varying obliquity of the incident ray.

16. I found also that when QRE made a straight line, that is, when the incident ray entered the Crystal without being refracted (as I ascertained by the circumstance that then the point E viewed by the extraordinary refraction appeared in the line CD, as seen without refraction) I found, I say, then that the angle QRG was 73 degrees 20 minutes, as has been already remarked; and so it is not the ray parallel to the edge of the Crystal, which crosses it in a straight line without being refracted, as Mr. Bartholinus believed, since that inclination is only 70 degrees 57 minutes, as was stated above. And this is to be noted, in order that no one may search in vain for the cause of the singular property of this ray in its parallelism to the edges mentioned.

It was after having explained the refraction of ordinary transparent bodies by means of the spherical emanations of light, as above, that I resumed my examination of the nature of this Crystal, wherein I had previously been unable to discover anything.

18. As there were two different refractions, I conceived that there were also two different emanations of waves of light, and that one could occur in the ethereal matter extending through the body of the Crystal. Which matter, being present in much larger quantity than is that of the particles which compose it, was alone capable of causing transparency, according to what has been explained heretofore. I attributed to this emanation of waves the regular refraction which is observed in this stone, by supposing these waves to be ordinarily of spherical form, and having a slower progression within the Crystal than they have outside it; whence proceeds refraction as I have demonstrated.

20. The double emission of waves of light, which I had imagined, became more probable to me after I had observed a certain phenomenon in the ordinary [Rock] Crystal, which occurs in hexagonal form, and which, because of this regularity, seems also to be composed of particles, of definite figure, and ranged in order. This was, that this crystal, as well as that from Iceland, has a double refraction, though less evident. For having had cut from it some well polished Prisms of different sections, I remarked in all, in viewing through them the flame of a candle or the lead of window panes, that everything appeared double, though with images not very distant from one another. Whence I understood the reason why this substance, though so transparent, is useless for Telescopes, when they have ever so little length.

22. Supposing then these spheroidal waves besides the spherical ones, I began to examine whether they could serve to explain the phenomena of the irregular refraction, and how by these same phenomena I could determine the figure and position of the spheroids: as to which I obtained at last the desired success, by proceeding as follows.

24. Now it appeared that this common tangent NQ was parallel to AB, and of the same length, but that it was not directly opposite to it, since it was comprised between the lines AN, BQ, which are diameters of ellipses having A and B for centres, conjugate with respect to diameters which are not in the straight line AB. And in this way I comprehended, a matter which had seemed to me very difficult, how a ray perpendicular to a surface could suffer refraction on entering a transparent body; seeing that the wave RC, having come to the aperture AB, went on forward thence, spreading between the parallel lines AN, BQ, yet itself remaining always parallel to AB, so that here the light does not spread along lines perpendicular to its waves, as in ordinary refraction, but along lines cutting the waves obliquely.

26. Considering after this the plane of one of these three sections, namely that through GCF, the angle of which is 109 degrees 3 minutes, since the angle F was shown above to be 70 degrees 57 minutes; and, imagining a spheroidal wave about the centre C, I knew, because I have just explained it, that its axis must be in the same plane, the half of which axis I have marked CS in the next figure: and seeking by calculation (which will be given with others at the end of this discourse) the value of the angle CGS, I found it 45 degrees 20 minutes.

Now as to finding the point of contact I, it is known that one must find CD a third proportional to the lines CK, CG, and draw DI parallel to CM, previously determined, which is the conjugate diameter to CG; for then, by drawing KI it touches the Ellipse at I.

30. To find the length of the line N, in proportion to CP, CS, CG, it must be determined by observations of the irregular refraction which occurs in this section of the crystal; and I find thus that the ratio of N to GC is just a little less than 8 to 5. And having regard to some other observations and phenomena of which I shall speak afterwards, I put N at 156,962 parts, of which the semi-diameter CG is found to contain 98,779, making this ratio 8 to 5-1/29. Now this proportion, which there is between the line N and CG, may be called the Proportion of the Refraction; similarly as in glass that of 3 to 2, as will be manifest when I shall have explained a short process in the preceding way to find the irregular refractions.

31. Supposing then, in the next figure, as previously, the surface of the crystal gG, the Ellipse GPg, and the line N; and CM the refraction of the perpendicular ray FC, from which it diverges by 6 degrees 40 minutes. Now let there be some other ray RC, the refraction of which must be found.

About the centre C, with semi-diameter CG, let the circumference gRG be described, cutting the ray RC at R; and let RV be the perpendicular on CG. Then as the line N is to CG let CV be to CD, and let DI be drawn parallel to CM, cutting the Ellipse gMG at I; then joining CI, this will be the required refraction of the ray RC. Which is demonstrated thus.

33. I will add here, before passing away, that in comparing together the regular and irregular refraction of this crystal, there is this remarkable fact, that if ABPS be the spheroid by which light spreads in the Crystal in a certain space of time (which spreading, as has been said, serves for the irregular refraction), then the inscribed sphere BVST is the extension in the same space of time of the light which serves for the regular refraction.

Although then there are, according to what we have supposed, two different propagations of light within the crystal, it appears that it is only in directions perpendicular to the axis BS of the spheroid that one of these propagations occurs more rapidly than the other; but that they have an equal velocity in the other direction, namely, in that parallel to the same axis BS, which is also the axis of the obtuse angle of the crystal.

CG or CR being, as precedently, 98,779; CM being 100,000; and the angle RCV 73 degrees 20 minutes, CV will be 28,330. But because CI is the refraction of the ray RC, the proportion of CV to CD is 156,962 to 98,779, namely, that of N to CG; then CD is 17,828.

Now the rectangle gDC is to the square of DI as the square of CG is to the square of CM; hence DI or CE will be 98,353. But as CE is to EI, so will CM be to MT, which will then be 18,127. And being added to ML, which is 11,609 (namely the sine of the angle LCM, which is 6 degrees 40 minutes, taking CM 100,000 as radius) we get LT 27,936; and this is to LC 99,324 as CV to VR, that is to say, as 29,938, the tangent of the complement of the angle RCV, which is 73 degrees 20 minutes, is to the radius of the Tables. Whence it appears that RCIT is a straight line; which was to be proved.

It is seen then that, according to our hypothesis, the reciprocal relation of refraction holds good in this crystal as well as in ordinary transparent bodies; as is thus in fact found by observation.

36. I pass now to the consideration of other sections of the crystal, and of the refractions there produced, on which, as will be seen, some other very remarkable phenomena depend.

Let ABH be a parallelepiped of crystal, and let the top surface AEHF be a perfect rhombus, the obtuse angles of which are equally divided by the straight line EF, and the acute angles by the straight line AH perpendicular to FE.

39. For the rest, this diversity of proportion of refraction produces a very singular effect in this Crystal; which is that when it is placed upon a sheet of paper on which there are letters or anything else marked, if one views it from above with the two eyes situated in the plane of the section through EF, one sees the letters raised up by this irregular refraction more than when one puts one's eyes in the plane of section through AH: and the difference of these elevations appears by comparison with the other ordinary refraction of the crystal, the proportion of which is as 5 to 3, and which always raises the letters equally, and higher than the irregular refraction does. For one sees the letters and the paper on which they are written, as on two different stages at the same time; and in the first position of the eyes, namely, when they are in the plane through AH these two stages are four times more distant from one another than when the eyes are in the plane through EF.

We will show that this effect follows from the refractions; and it will enable us at the same time to ascertain the apparent place of a point of an object placed immediately under the crystal, according to the different situation of the eyes.

If now one considers the point I as at the bottom of the crystal, and that it is viewed by the rays ICR, Icr, refracted equally at the points Cc, which should be equally distant from D, and that these rays meet the two eyes at Rr; it is certain that the point I will appear raised to S where the straight lines RC, rc, meet; which point S is in DP, perpendicular to Qq. And if upon DP there is drawn the perpendicular IP, which will lie at the bottom of the crystal, the length SP will be the apparent elevation of the point I above the bottom.

Let there be described on Qq a semicircle cutting the ray CR at B, from which BV is drawn perpendicular to Qq; and let the proportion of the refraction for this section be, as before, that of the line N to the semi-diameter CQ.

42. If one takes a straight line AB for the thickness of the crystal, its point B being at the bottom, and if one divides it at the points C, D, E, according to the proportions of the elevations found, making AE 3/5 of AB, AB to AC as 99,324 to 70,283, and AB to AD as 99,324 to 62,163, these points will divide AB as in this figure. And it will be found that this agrees perfectly with experiment; that is to say by placing the eyes above in the plane which cuts the crystal according to the shorter diameter of the rhombus, the regular refraction will lift up the letters to E; and one will see the bottom, and the letters over which it is placed, lifted up to D by the irregular refraction. But by placing the eyes above in the plane which cuts the crystal according to the longer diameter of the rhombus, the regular refraction will lift the letters to E as before; but the irregular refraction will make them, at the same time, appear lifted up only to C; and in such a way that the interval CE will be quadruple the interval ED, which one previously saw.

But as to the apparent elevation of the point I in other positions of the eyes above the crystal, besides the two positions which we have just examined, the image of that point by the irregular refraction will always appear between the two heights of D and C, passing from one to the other as one turns one's self around about the immovable crystal, while looking down from above. And all this is still found conformable to our hypothesis, as any one can assure himself after I shall have shown here the way of finding the irregular refractions which appear in all other sections of the crystal, besides the two which we have considered. Let us suppose one of the faces of the crystal, in which let there be the Ellipse HDE, the centre C of which is also the centre of the spheroid HME in which the light spreads, and of which the said Ellipse is the section. And let the incident ray be RC, the refraction of which it is required to find.

Now it must be noted that the same ellipse HME serves to find the refractions of any other ray which may be in the plane through RC and CK. Because every plane, parallel to the straight line HF, or TK, which will touch the spheroid, will touch it in this ellipse, according to the Lemma quoted a little before.

I have investigated thus, in minute detail, the properties of the irregular refraction of this Crystal, in order to see whether each phenomenon that is deduced from our hypothesis accords with that which is observed in fact. And this being so it affords no slight proof of the truth of our suppositions and principles. But what I am going to add here confirms them again marvellously. It is this: that there are different sections of this Crystal, the surfaces of which, thereby produced, give rise to refractions precisely such as they ought to be, and as I had foreseen them, according to the preceding Theory.

I saw also that by cutting it by a plane taken through PP, and perpendicular to the axis SS, the refraction of the surfaces ought to be such that the perpendicular ray should suffer thereby no deviation; and that for oblique rays there would always be an irregular refraction, differing from the regular, and by which objects placed beneath the crystal would be less elevated than by that other refraction.

That, similarly, by cutting the crystal by any plane through the axis SS, such as the plane of the figure is, the perpendicular ray ought to suffer no refraction; and that for oblique rays there were different measures for the irregular refraction according to the situation of the plane in which the incident ray was.

That, finally, one could also fashion out of it triangular prisms, or prisms with as many sides as one would, of which neither the sides nor the bases would refract the perpendicular ray, although they would yet all cause double refraction for oblique rays. The cube is included amongst these prisms, the bases of which are sections perpendicular to the axis of the crystal, and the sides are sections parallel to the same axis.

From all this it further appears that it is not at all in the disposition of the layers of which this crystal seems to be composed, and according to which it splits in three different senses, that the cause resides of its irregular refraction; and that it would be in vain to wish to seek it there.

But in order that any one who has some of this stone may be able to find, by his own experience, the truth of what I have just advanced, I will state here the process of which I have made use to cut it, and to polish it. Cutting is easy by the slicing wheels of lapidaries, or in the way in which marble is sawn: but polishing is very difficult, and by employing the ordinary means one more often depolishes the surfaces than makes them lucent.

Even when the surface is only moderately smoothed, if one rubs it over with a little oil or white of egg, it becomes quite transparent, so that the refraction is discerned in it quite distinctly. And this aid is specially necessary when it is wished to polish the natural surfaces to remove the inequalities; because one cannot render them lucent equally with the surfaces of other sections, which take a polish so much the better the less nearly they approximate to these natural planes.

Before finishing the treatise on this Crystal, I will add one more marvellous phenomenon which I discovered after having written all the foregoing. For though I have not been able till now to find its cause, I do not for that reason wish to desist from describing it, in order to give opportunity to others to investigate it. It seems that it will be necessary to make still further suppositions besides those which I have made; but these will not for all that cease to keep their probability after having been confirmed by so many tests.

But in all the infinite other positions, besides those which I have just stated, the rays DG, CE, divide themselves anew each one into two, by refraction in the lower crystal so that from the single ray AB there are four, sometimes of equal brightness, sometimes some much less bright than others, according to the varying agreement in the positions of the crystals: but they do not appear to have all together more light than the single ray AB.

When one considers here how, while the rays CE, DG, remain the same, it depends on the position that one gives to the lower piece, whether it divides them both in two, or whether it does not divide them, and yet how the ray AB above is always divided, it seems that one is obliged to conclude that the waves of light, after having passed through the first crystal, acquire a certain form or disposition in virtue of which, when meeting the texture of the second crystal, in certain positions, they can move the two different kinds of matter which serve for the two species of refraction; and when meeting the second crystal in another position are able to move only one of these kinds of matter. But to tell how this occurs, I have hitherto found nothing which satisfies me.

There are many bodies, vegetable, mineral, and congealed salts, which are formed with certain regular angles and figures. Thus among flowers there are many which have their leaves disposed in ordered polygons, to the number of 3, 4, 5, or 6 sides, but not more. This well deserves to be investigated, both as to the polygonal figure, and as to why it does not exceed the number 6.

As for the other method of division along the plane GHKL, it will be seen that each spheroid would have to detach itself from four of the neighbouring layer, two of which touch it on the flattened surfaces, and two at the edges. So that this division is likewise more difficult than that which is made parallel to one of the surfaces of the crystal; where, as we have said, each spheroid is detached from only three of the neighbouring layer: of which three there is one only which touches it on the flattened surface, and the other two at the edges only.

I will not undertake to say anything touching the way in which so many corpuscles all equal and similar are generated, nor how they are set in such beautiful order; whether they are formed first and then assembled, or whether they arrange themselves thus in coming into being and as fast as they are produced, which seems to me more probable. To develop truths so recondite there would be needed a knowledge of nature much greater than that which we have. I will add only that these little spheroids could well contribute to form the spheroids of the waves of light, here above supposed, these as well as those being similarly situated, and with their axes parallel.

Calculations which have been supposed in this Chapter.

To find from this the obtuse angle BCA, I imagined a sphere having its centre at C, and on its surface a spherical triangle, formed by the intersection of three planes which enclose the solid angle C. In this equilateral triangle, which is ABF in this other figure, I see that each of the angles should be 105 degrees, namely equal to the angle OCN; and that each of the sides should be of as many degrees as the angle ACB, or ACF, or BCF. Having then drawn the arc FQ perpendicular to the side AB, which it divides equally at Q, the triangle FQA has a right angle at Q, the angle A 105 degrees, and F half as much, namely 52 degrees 30 minutes; whence the hypotenuse AF is found to be 101 degrees 52 minutes. And this arc AF is the measure of the angle ACF in the figure of the crystal.

It was stated, in Article 26, that the straight line CS, which in the preceding figure is CH, being the axis of the crystal, that is to say being equally inclined to the three sides CA, CB, CF, the angle GCH is 45 degrees 20 minutes. This is also easily calculated by the same spherical triangle. For by drawing the other arc AD which cuts BF equally, and intersects FQ at S, this point will be the centre of the triangle. And it is easy to see that the arc SQ is the measure of the angle GCH in the figure which represents the crystal. Now in the triangle QAS, which is right-angled, one knows also the angle A, which is 52 degrees 30 minutes, and the side AQ 50 degrees 56 minutes; whence the side SQ is found to be 45 degrees 20 minutes.

In Article 27 it was required to show that PMS being an ellipse the centre of which is C, and which touches the straight line MD at M so that the angle MCL which CM makes with CL, perpendicular on DM, is 6 degrees 40 minutes, and its semi-minor axis CS making with CG (which is parallel to MD) an angle GCS of 45 degrees 20 minutes, it was required to show, I say, that, CM being 100,000 parts, PC the semi-major diameter of this ellipse is 105,032 parts, and CS, the semi-minor diameter, 93,410.

Similarly, because the angle OMZ is equal to CDZ, or LCZ, which is 44 degrees 40 minutes, being the complement of GCS, it follows that, as the radius of the Tables is to the tangent of 44 degrees 40 minutes, so will OM 78,079 be to OZ 77,176. But OC is 62,479 of these same parts of which CM is 100,000, because it is equal to MN, the sine of the angle MCP, which is 38 degrees 40 minutes. Then the whole line CZ is 139,655; and CS, which is a mean proportional between CZ and CO will be 93,410.

Lemma which has been supposed.

If a spheroid is touched by a straight line, and also by two or more planes which are parallel to this line, though not parallel to one another, all the points of contact of the line, as well as of the planes, will be in one and the same ellipse made by a plane which passes through the centre of the spheroid.

ON THE FIGURES OF THE TRANSPARENT BODIES

Which serve for Refraction and for Reflexion.

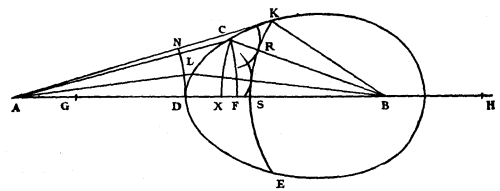

So far as relates to the reflecting surface, since the sum of the lines AC, CB ought to be equal to that of AD, DB, it appears that DCE ought to be an ellipse; and for refraction, the ratio of the velocities of waves of light in the media A and B being supposed to be known, for example that of 3 to 2 (which is the same, as we have shown, as the ratio of the Sines in the refraction), it is only necessary to make DH equal to 3/2 of DB; and having after that described from the centre A some arc FC, cutting DB at F, then describe another from centre B with its semi-diameter BX equal to 2/3 of FH; and the point of intersection of the two arcs will be one of the points required, through which the curve should pass. For this point, having been found in this fashion, it is easy forthwith to demonstrate that the time along AC, CB, will be equal to the time along AD, DB.

In order to show further that the surfaces, which these curves will generate by revolution, will direct all the rays which reach them from the point A in such wise that they tend towards B, let there be supposed a point K in the curve, farther from D than C is, but such that the straight line AK falls from outside upon the curve which serves for the refraction; and from the centre B let the arc KS be described, cutting BD at S, and the straight line CB at R; and from the centre A describe the arc DN meeting AK at N.

One might also determine the point C, and all the others, in this curve which serves for the refraction, by dividing DA at G in such a way that DG is 2/3 of DA, and describing from the centre B any arc CX which cuts BD at N, and another from the centre A with its semi-diameter AF equal to 3/2 of GX; or rather, having described, as before, the arc CX, it is only necessary to make DF equal to 3/2 of DX, and from-the centre A to strike the arc FC; for these two constructions, as may be easily known, come back to the first one which was shown before. And it is manifest by the last method that this curve is the same that Mr. Des Cartes has given in his Geometry, and which he calls the first of his Ovals.

These are the two cases in which Conic sections serve for refraction, and are the same which are explained, in his Dioptrique, by Des Cartes, who first found out the use of these lines in relation to refraction, as also that of the Ovals the first of which we have already set forth. The second oval is that which serves for rays that tend to a given point; in which oval, if the apex of the surface which receives the rays is D, it will happen that the other apex will be situated between B and A, or beyond A, according as the ratio of AD to DB is given of greater or lesser value. And in this latter case it is the same as that which Des Cartes calls his 3rd oval.

Let us now return to our method and let us see how it leads without difficulty to the finding of the curves which one side of the glass requires when the other side is of a given figure; a figure not only plane or spherical, or made by one of the conic sections (which is the restriction with which Des Cartes proposed this problem, leaving the solution to those who should come after him) but generally any figure whatever: that is to say, one made by the revolution of any given curved line to which one must merely know how to draw straight lines as tangents.

Let the given figure be that made by the revolution of some curve such as AK about the axis AV, and that this side of the glass receives rays coming from the point L. Furthermore, let the thickness AB of the middle of the glass be given, and the point F at which one desires the rays to be all perfectly reunited, whatever be the first refraction occurring at the surface AK.

Let there be given the surface of the glass AK, made by the revolution about the axis BA of the line AK, which may be straight or curved. Let there be also given in the axis the point L and the thickness BA of the glass; and let it be required to find the other surface KDB, which receiving rays that are parallel to AB will direct them in such wise that after being again refracted at the given surface AK they will all be reassembled at the point L.

Again, let there be given the surface AK, of any desired form, generated by revolution about the axis AB, and let the thickness of the glass at the middle be AB. Also let the point L be given in the axis behind the glass; and let it be supposed that the rays which fall on the surface AK tend to this point, and that it is required to find the surface BD, which on their emergence from the glass turns them as if they came from the point F in front of the glass.

Then the wave TG, after having passed through the glass, must form the wave QD; and for this I observe that the time taken by the light along GD in the glass must be equal to that taken along the three, TA, AB, and BQ, of which AB alone is within the glass. Or rather, having taken AS equal to 2/3 of AT, I observe that 3/2 of GD ought to be equal to 3/2 of SB, plus BQ; and, deducting both of them from FD or FQ, that FD less 3/2 of GD ought to be equal to FB less 3/2 of SB. And this last difference is a given length: and all that is required is to draw the straight line FD from the given point F to meet VG so that it may be thus. Which is a problem quite similar to that which served for the first of these constructions, where FD plus 3/2 of GD had to be equal to a given length.

In the demonstration it is to be observed that, since the arc BC falls within the glass, there must be conceived an arc RX, concentric with it and on the other side of QD. Then after it shall have been shown that the piece G of the wave GT arrives at D at the same time that the piece T arrives at Q, which is easily deduced from the construction, it will be evident as a consequence that the partial wave generated at the point D will touch the arc RX at the moment when the piece Q shall have come to R, and that thus this arc will at the same moment be the termination of the movement that comes from the wave TG; whence all the rest may be concluded.

For in the case of rays which, for example, fall parallel upon a spherical surface AFE, intersecting one another, after refraction, at different points, as this figure represents; what can the waves of light be, in this transparent body, which are cut at right angles by the converging rays? For they can not be spherical. And what will these waves become after the said rays begin to intersect one another? It will be seen in the solution of this difficulty that something very remarkable comes to pass herein, and that the waves do not cease to persist though they do not continue entire, as when they cross the glasses designed according to the construction we have seen.

There is even, in this curve, a part EN which is straight, N being the point where the perpendicular from the centre X of the sphere falls upon the refraction of the ray DE, which I now suppose to touch the sphere. The folding of the waves of light begins from the point N up to the end of the curve C, which point is formed by taking AC to CX in the proportion of the refraction, as here 3 to 2.

As many other points as may be desired in the curve NC are found by a Theorem which Mr. Barrow has demonstrated in section 12 of his Lectiones Opticae, though for another purpose. And it is to be noted that a straight line equal in length to this curve can be given. For since it together with the line NE is equal to the line CK, which is known, since DE is to AK in the proportion of the refraction, it appears that by deducting EN from CK the remainder will be equal to the curve NC.

Its length is exactly equal to 3/4 of the diameter of the sphere, as can be found and demonstrated by means of these waves, nearly in the same way as the mensuration of the preceding curve; though it may also be demonstrated in other ways, which I omit as outside the subject. The area AOBEFA, comprised between the arc of the quarter-circle, the straight line BE, and the curve EFA, is equal to the fourth part of the quadrant DAB.

END.
