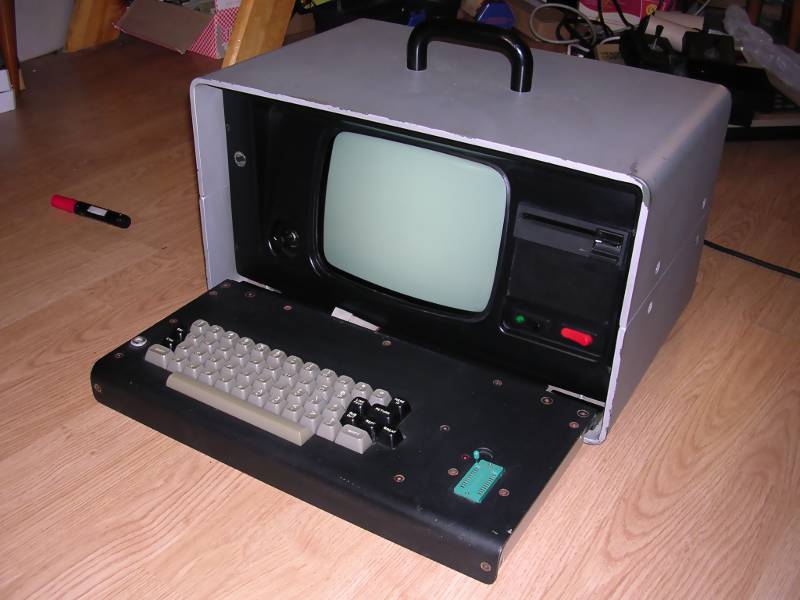

Not much is known about this 8-bit portable microcomputer. It's a device with built-in green CRT monitor and keyboard. Presence of ROM (?EPROM?) programming socket reminds old industrial machines. As primary storage a 3.5" floppy disk is used by built-in drive. Today the manufacturer is still in market selling industrial automation systems, but not much is known about this computer.
The machine is made of parts existing in market in early 1980s. Keyboard is a Cherry terminal keyboard, monitor is also a component, power supply comes from some industrial system. The CPU is implemented on two Double-Euro sized boards. First one is a 48kB German (West Germany) computer called Eltec Eurocom 2 (v. 5, sometimes mentioned as  "Bystronic"), this computer was used in early 1980s in industrial applications and for driving sound recording/sampling/synthesizing equipment. Second board contains floppy disk drive controller, additional S-RAM and secondary RAM memory. Secondary RAM memory is unusually large for such computer (512kB) so I think that it's a RAM disk for storing some data. S-RAM memory may be used as a buffer for some on-board controllers.

Manufacturer Microtrol

Origin West Germany (CPU board)
Year of unit 1985
Year of introduction ?1985?
End of production ?1985?
CPU Motorola 6809
Speed 1,33MHz
+16kB S-RAM
+ 512kB ?RAMdisk?
Colors: 2
Sound: None
OS: Monitor, ???
Display modes: Text: 80x24?

?84x25? ?512x256 graphics?



Media: Built-in 3.5" FDD

Power supply:


Built-in switching power supply

I/O: Built-in keyboard
Built-in ROM programming socket
?Parallel port?
?Serial port?
??General purpose IO port??
One DB9 connector - unknown.
Possible upgrades: ??
Software accessibility: Probably impossible

My unit is in working condition but I have no system floppy disk to boot it. It works quite well as for its age. The serial number is 18, so it was not manufactured in bigger quantity. By components age it was estimated that year of manufacturing is probably 1985 (newest component - floppy disk drive).

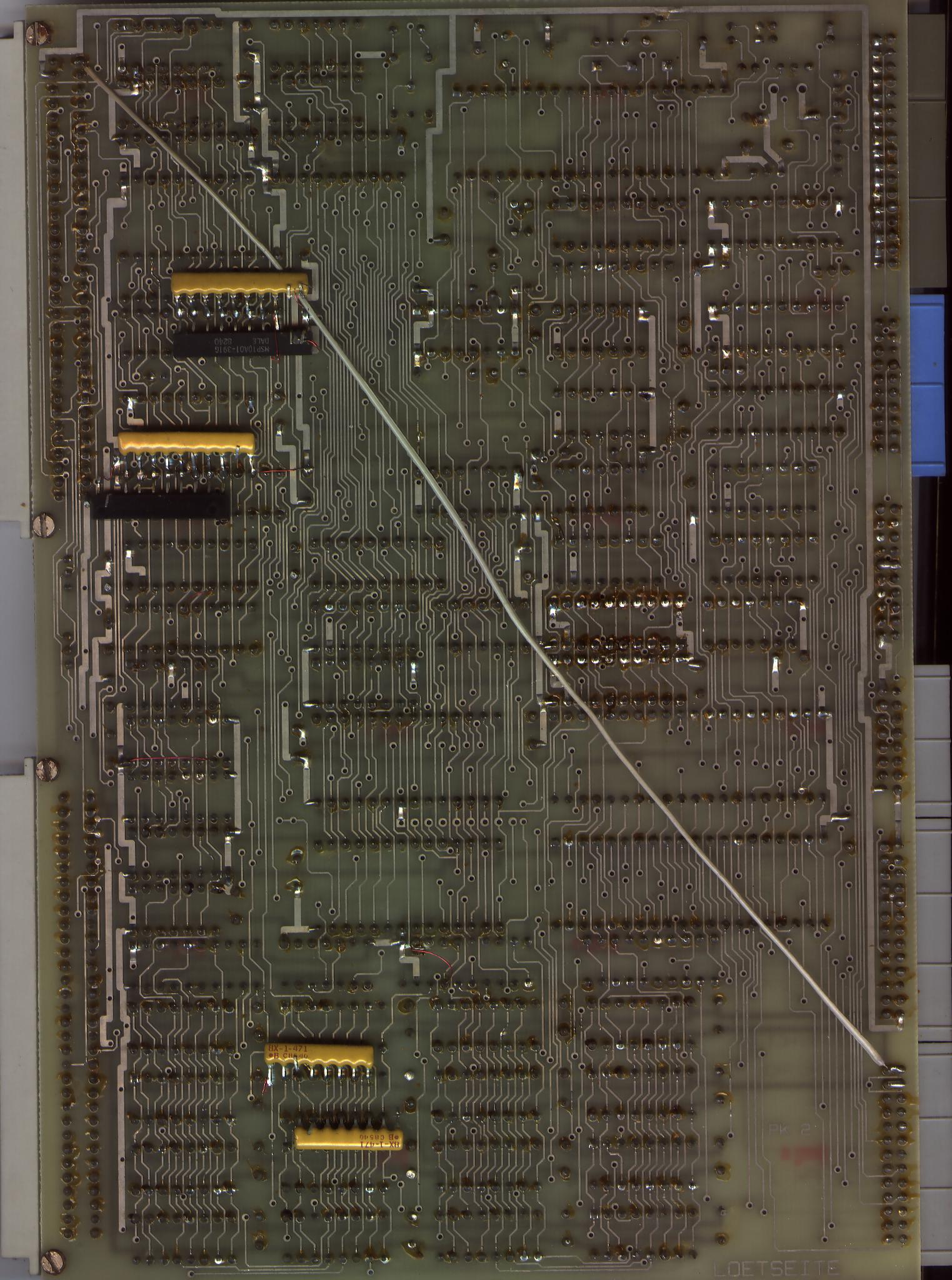

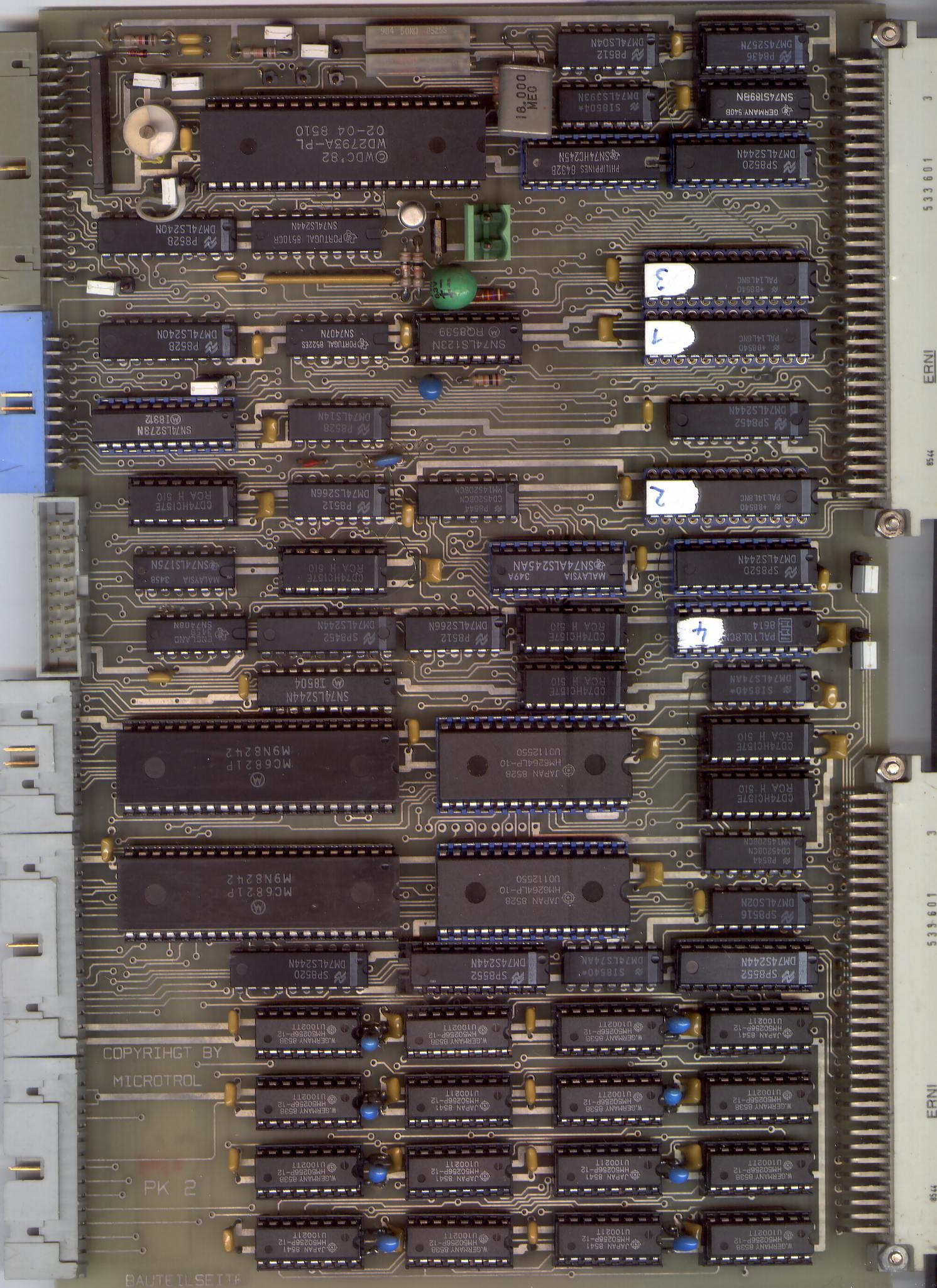

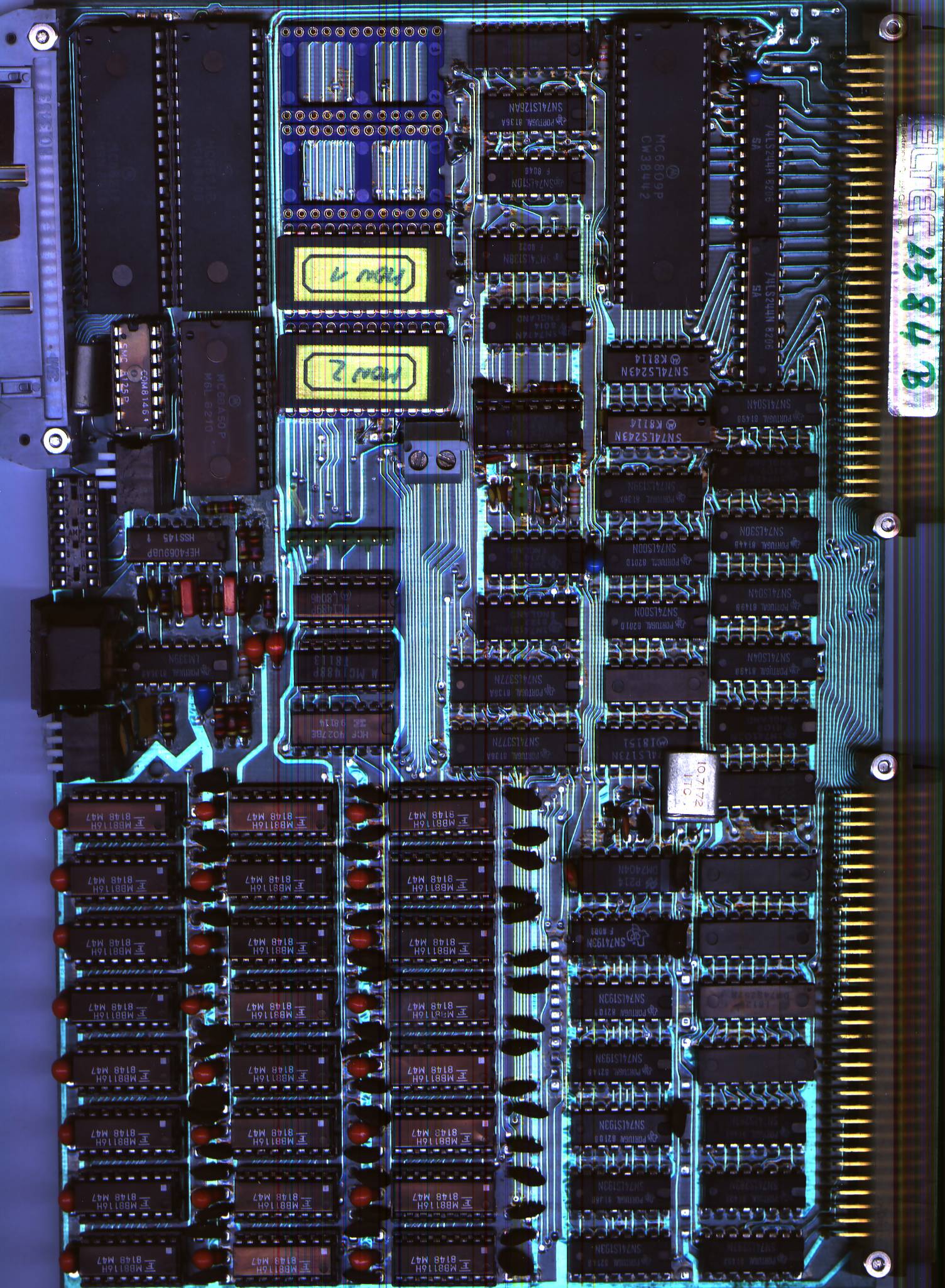

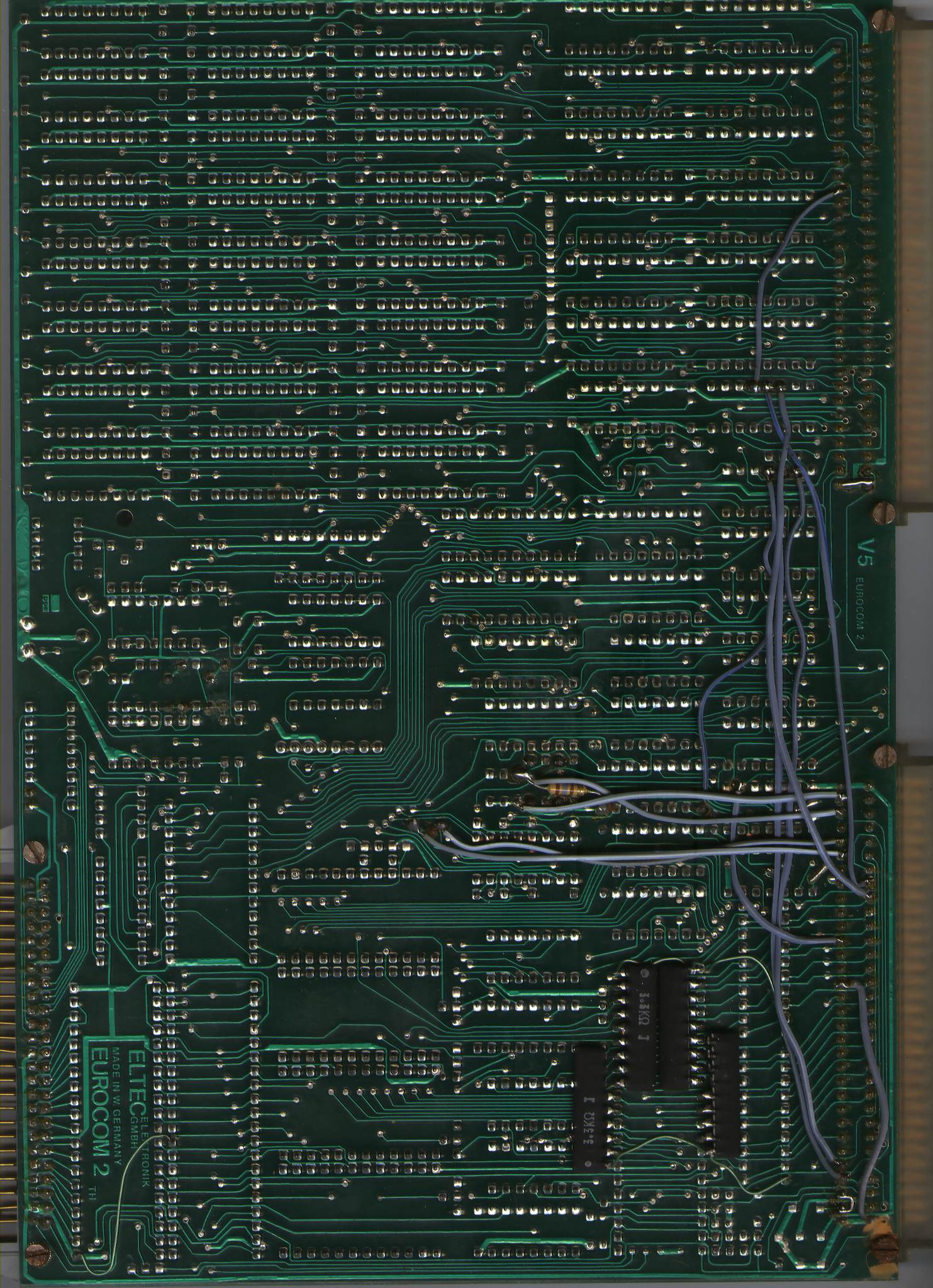

Here are good resolution scans of boards (CPU board and then FDD controller board) for diagnostic purposes:

Contents: Starting Links


After powering on using front-panel switch, the CRT should light up and disk insertion message can be seen. Pressing a key makes computer try to boot from floppy. If no floppy is present, the message will be redisplayed.
If any floppy is placed in drive, the system will try to boot from it. It requires floppy disk with its OS, so from normal floppy it won't boot, passing control to on-ROM monitor program. The following commands are accessible (not all commands are listed here):
 - L - prints serial number
 - S - prints CPU state
 - T - asks for two memory pointers, then prints the contents in hex form
 - O - asks for 2 memory pointers, then does something?
 - D - Boots from disk?
 - V - ??
 - G - starts execution
 - Linefeed (or ?) - some hex editing mode ?memory editor?
