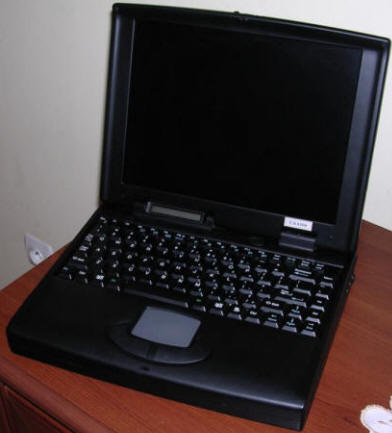

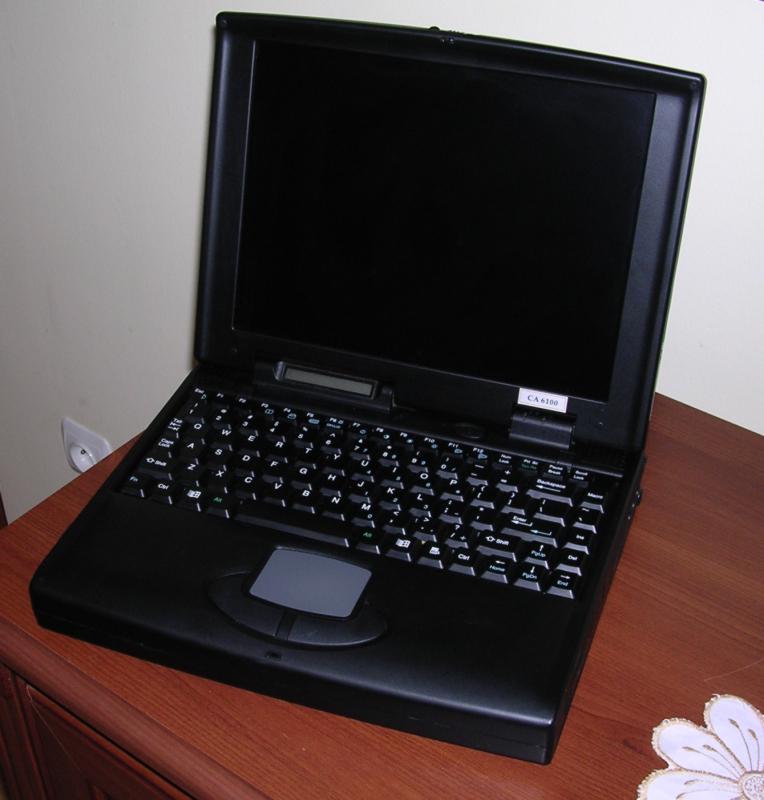

California Access CA6100

California Access sold Chinese OEM notebooks in Poland. This model can use normal Socket 7 Pentium processor so it was not  needed to buy more expensive portable processor. It was manufactured near 1997 and sold by Karen, one of bigger notebook seller in Poland. Not much more I can tell about it as I don't have a hard disk cable for it so I can't run any OS.

Manufacturer California Access

Origin China
Year of unit 1997
Year of introduction ??
Type Laptop, PC
CPU Intel Pentium MMX 166MHz
RAM 16MB (2 SODIMM modules)
Floppy Disk Internal 3.5", 1.44MB
Hard Disk -
Other media CD-ROM drive
Graphics and display: SVGA 800x600
Sound: PC Speaker
Sound card
Keyboard and pointing device: Small PC keyboard without numeric part, numeric part on letter keys.

Touchpad
OS: Windows 95

Power supply:


2,3 - +12V DC - works with this voltage - Connect them both
4 - GND
I/O:  - Serial port (x2)
 - Parallel port
 - VGA video out
 - PCMCIA
 - PS/2
 - Infrared
 - Unknown "expansion connector"






Possible upgrades: RAM
Additional peripherals:  None


Disassembly:
Slide small cover towards keyboard, remove it.
Unlock two parts above keyboard, pull top part of keyboard upwards
Unlock keyboard by sliding towards LCD, then open it with bottom part facing LCD, so you won't damage ribbon cable.
