Welcome!

This documentation is a resource aimed to get you started with the C.H.I.P. Pro Developer’s Kit. There are lists of contents, descriptions of parts, explanations of how to use the unique features of the board, and some examples to work through so you can get up and running developing your product around C.H.I.P. Pro. Have a C.H.I.P. Pro board but no Dev Kit? Check out the C.H.I.P. Pro documentation site to get started.

Get Started with the C.H.I.P. Pro Dev Kit!

C.H.I.P. Pro

The C.H.I.P. Pro Developer’s Kit provides a complete electronic sandbox to test, iterate, and prototype products with the C.H.I.P. Pro module. While many developer’s kits assume a high-degree of technical experience, we make this kit approachable, compact, and easy to use. We believe that great products can come from many backgrounds, so we provide several extras in this kit that help you get making and get comfortable. We even include an extra C.H.I.P. Pro to get you started on your own PCB. If you do know it all, you’ll find this documentation will help your product be the best it can be whether you’re making 1 or 1 million.

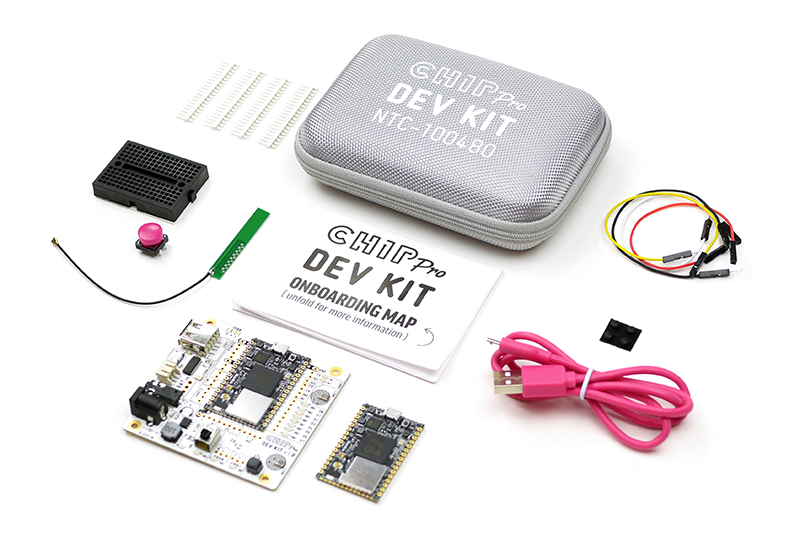

What’s in the Kit

C.H.I.P. Pro Dev Kit Package Contents

The C.H.I.P. Pro Dev Kit comes with accessories to get you started on your first prototype:

Flash With An OS

Before you start building with the C.H.I.P. Pro Dev Kit the C.H.I.P. Pro needs to be flashed with an operating system. We at NTC have built examples that use two operating systems: Buildroot and Debian that are both based on Linux.

Debian is a classic amongst embedded Linux board users for rapid prototyping. It offers a full package manager and loads of precompiled software for many different architectures.

Buildroot is simple and stripped down making it efficient and good for single application use cases.

C.H.I.P. Pro has 512MB of high-reliability SLC NAND storage onboard for holding the core operating system and a limited amount of user and program data. While the storage is faster and more reliable it has less capacity. Because of this, it’s a good idea to know how much storage software will take before flashing and installing. Where needed, additional high-speed storage can be added through C.H.I.P. Pro’s SDIO bus.

Ready to try out some examples? Grab these items, then read on!

Flashing Process

Head over to the web flasher at flash.getchip.com/pro. If it’s your first time flashing, when you arrive you will be asked to install the NTC Flasher Chrome Extension.

After installing the extension the main page will give you the option to either download an image or follow the wizard to flash C.H.I.P. Pro. For a smooth automated process, click FLASH to flash C.H.I.P. Pro.

flasher home page

You will be sent to the “Flasher First Time Setup” page which will have instructions dependent on the operating system of your computer. Follow along in the browser or below.

When done with setup, press START!.

first time setup

Once the extension is installed, plug the micro USB cable into the USB0 port on the Dev Kit (not on the C.H.I.P. Pro!).

Hold down the FEL button (a pencil eraser works nicely) and with the other hand plug the USB cable into the computer. When the pink power and white status LEDs on C.H.I.P. Pro light up, you can release the FEL button.

pushing FELL button

The web flasher will search for and recognize C.H.I.P. Pro.

searching page

You will then be directed to the page with the example images. Hover over each image to see a description and click to see more details such as file size and kernel version. When you have chosen your adventure, click FLASH TO C.H.I.P. PRO.

image page flash to board
Choose image Click FLASH TO CHIP PRO

Watch the flashing process progress and leave the browser tab open in order for it to complete. You will be notified when C.H.I.P. Pro has been flashed successfully. You are then free to unplug the C.H.I.P. Pro or connect to it via serial.

succeeded page

If you are having problems with the flashing process follow the troubleshooting instructions given by the web flasher or check out the Web Flasher OS-Specific Issues troubleshooting section.

Examples

You can select an OS by flashing one of our examples using the web flasher flash.getchip.com/pro in Chrome or Chromium browser. Before you go to the web flasher however, there is a method to flashing the C.H.I.P. Pro to know and get in the habit of. This process is explained below and is also illustrated on the flasher page.

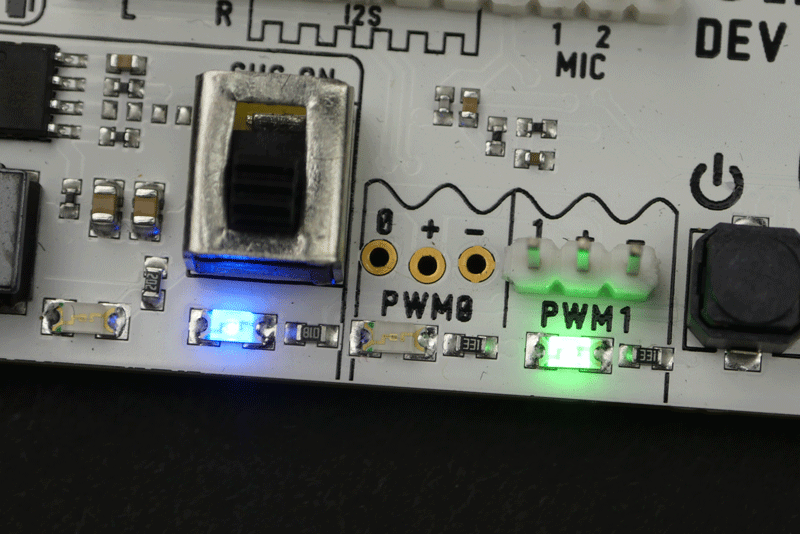

Blinkenlights

Controlling LEDs are fundamental to almost any hardware. This simple example provides easy-to-understand code with exciting results! Flash C.H.I.P. Pro with this image and watch the GPIO D0-D7 lights turn on and off in a cascading pattern and the two PWM LEDs pulse from dim to bright. Based on Buildroot.

VU Meter

This example comes with the CHIP_IO library and Python, all in a very small package!

Want to make sure your mics are working? Use this handy VU Meter example. Scream loudly, speak softly, tap the mics, and MAKE SOME NOISE, SPORTSFANS! You’ll see the LEDs light proportional to the volume of the noise captured by the two built-in mics. Based on Buildroot.

Pro

We provide a standard Debian distribution. Once flashed connect to the C.H.I.P. Pro via USB-serial and log in with the default username chip and password chip.

If you want to configure and build the rootfs for the Debian image, take a look at our github repo

After Flashing Image

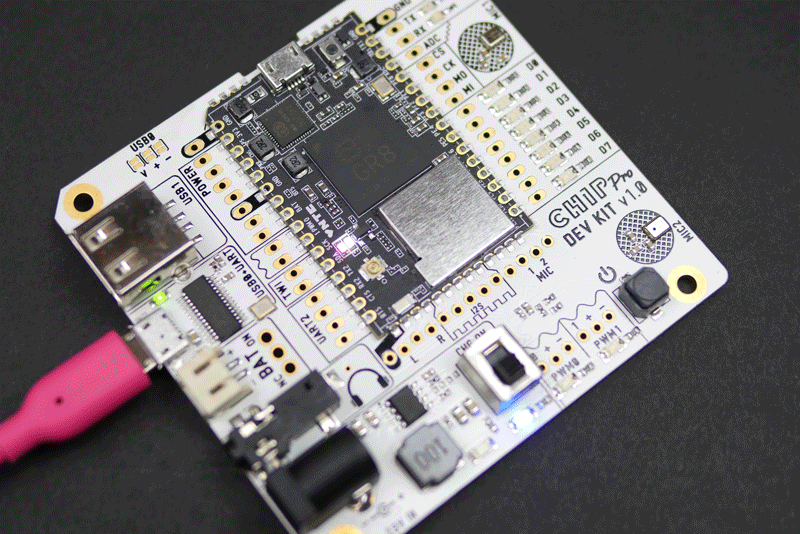

power off button

When you are done or want to flash another example, hold down the power button on the Dev Kit until the Power and Activity LEDs shut off.

Troubleshooting Flashing Fails

If the flashing process fails we have troubleshooting recommendations based on your OS.

Connect and Control

C.H.I.P. Pro is a headless computer, so you will need a separate computer in order to interact with it. This section will go over how to connect to C.H.I.P. Pro Dev Kit through USB-serial, connect to a WiFI network and where to find example scripts on Buildroot.

USB-Serial UART1 Connection

This is the first thing you want to do in order to get your board online and give you access to C.H.I.P. Pro’s software. The Dev Kit has a built-in USB to Serial converter for a direct connection to UART1.

image page

To get started, connect the Dev Kit’s USB0 port (not on the C.H.I.P. Pro!) to your computer with a common USB A to Micro-USB B cable. Next, you will need terminal emulation software on the computer C.H.I.P. Pro Dev Kit is connected to. Find the OS you are using below to see what software is needed and how to connect.

OS X & Linux

Mac systems and most flavors of Linux come with the terminal emulator software Screen. If your Linux distro does not come with Screen and uses Apt install using apt-get:

sudo apt-get install screen

With the Dev Kit connected to your computer, open a terminal window. Find out the tty.usbserial dev path the Dev Kit is attached to:

Mac

ls /dev/tty.*

It will look something like usbserial-DN02ACBB.

Linux

ls /dev/ttyUSB*

The port name is usually ttyUSB0.

Connect

Use Screen to create a serial terminal connection at 115200 bps:

Mac

screen /dev/tty.usbserialxxxxxxxx 115200

Linux

screen /dev/ttyUSB0 115200

Once a terminal window pops up, hit the Enter key twice.

Exit Screen

When done with Screen, press Ctrl+A then Ctrl+k to kill all windows and terminate Screen.

If you get the error “Cannot open line… Resource busy” when trying to connect via Screen it’s because the last session was not properly exited. Here is how to back and exit properly.

Search for the open file and active process using usbserial:

lsof | grep usbserial

You will get an output that looks something like this:

screen  27127 Sefi  5u  CHR             18,0        0t0     605 /dev/tty.usbserial

Note the process ID. In this case, it’s 27127. Then run:

screen -x 27127

This will return you to the previous screen session. Then use Ctrl+A Ctrl+K to close it (will ask you to confirm).

Windows

Download the PuTTY terminal emulator.

In Windows, open the Device Manager. Find and expand Ports (COM & LPT). Find the port labeled USB Serial Port (COMx) and take note of the COMx port number. This is the port that the C.H.I.P. Pro Dev Kit is connected to.

In PuTTY choose Serial as the Connection type. Plug the following items in and click Open.

Com Port puTTY
In Device Manager find COM port # Plug port # and baud rate into puTTY

Once a terminal window pops up, press Enter.

Edit Buildroot Examples

After connecting to the Dev Kit via USB-serial you can check out and edit the scripts for each Buildroot example. Use the Vi command-line editor to read and edit example scripts found in /usr/bin.

Blinkenlights

vi /usr/bin/blink-leds
vi /usr/bin/fade-pwms

VU-Meter

vi /usr/bin/vu-meter

Basic Vi Editor Commands

To edit text take Vi from command mode (default) to insert mode. Press the following keys to edit text.

Vi was built for Qwerty keyboards without arrow keys. They may work but if not, use these keys to move cursor:

Other helpful commands:

WiFi Antenna

C.H.I.P. Pro has an onboard ceramic antenna that is intended for debugging purposes only. We recommend the use of an external antenna for all product applications. Use the antenna that comes with the C.H.I.P. Pro Dev Kit or obtain any of these officially supported ones:

Antenna Model Manufacturer Gain Antenna Type Connection Type Freq. Range (GHz) Cable Length (mm)
AA107 Unictron 3.3 dBi PCB IPEX 2.4 - 2.5 100
HCX-P321 Wacosun 2 dBi PCB IPEX 2.4 - 2.5 150
FXP73.07.0100A Taoglas 2.5 dBi PCB IPEX 2.4 - 2.483 100
AA055 Unictron 2.5 dBi Ceramic SMT 2.4 - 2.5 n/a

Connect Antenna

C.H.I.P. Pro uses a standard 50Ω IPEX (Hirose U.FL compatible) connector for the external antenna path.

To connect an antenna, come straight from the top and push the antenna onto the connector. Keep in mind the connector will wear out over time. We suggest keeping the disconnect/connect cycle down to 10 or less.

wifi antenna connector push antenna on
WiFi antenna connector Push antenna onto connector

wifi antenna connected

Enable Wifi Antenna

In order to use it, you need to set the path of the external antenna.

Buildroot

With the Buildroot C.H.I.P. Pro images comes a set_antenna script which accepts two arguments of either pcb or ufl depending on which you want enable.

sh set_antenna pcb|ufl

Debian

In Debian, there are two ways to set the antenna path:

0 = onboard-antenna

1 = external-antenna

WiFi Setup: Buildroot

The Buildroot operating system uses the ConnMan command-line network manager to connect and manage your network connections.

Requirements

Step 1: Enable WiFi and Find a Network

These three commands will in turn, enable wifi, scan for access points, and list what networks are available:

connmanctl enable wifi
connmanctl scan wifi
connmanctl services

The services command has output similar to:

WaffleHouse          wifi_xxxxxxxxxxxx_xxxxxx_managed_psk
                     wifi_xxxxxxxxxxxx_hidden_managed_psk
YOUR_NETWORK         wifi_xxxxxxxxxxxx_xxxxxx_managed_psk
                     wifi_xxxxxxxxxxxx_xxxxxx_managed_none
Donut_Hut            wifi_xxxxxxxxxxxx_xxxxxxxxx_managed_psk

Step 2: Connect

Copy the string that starts with “wifi_’ to the right of the network name you want to connect to. If it has psk at the end, that means it is password protected (short for Wi-Fi Protected Access 2 - Pre-Shared Key) and you need to scroll further down to the ” Password Protected" section.

No Password

For example, to connect to NTC Guest, which has no password, services shows two choices. We want the one without psk in the string. Use the connect command:

connmanctl connect wifi_xxxxxxxxxxxx_xxxxxx_managed_none

If your network is not password protected, you’ll get some output that will indicate a successful connection, such as:

[  961.780000] RTL871X: rtw_set_802_11_connect(wlan0)  fw_state=0x00000008
[  962.070000] RTL871X: start auth
[  962.080000] RTL871X: auth success, start assoc
[  962.090000] RTL871X: rtw_cfg80211_indicate_connect(wlan0) BSS not found !!
[  962.100000] RTL871X: assoc success
[  962.110000] RTL871X: send eapol packet
[  962.290000] RTL871X: send eapol packet
[  962.300000] RTL871X: set pairwise key camid:4, addr:xx:xx:xx:xx:xx:xx, kid:0, type:AES
[  962.320000] RTL871X: set group key camid:5, addr:xx:xx:xx:xx:xx:xx, kid:1, type:AES

If your network is password protected you’ll get an error.

Password-Protected

To deal with passwords you’ll need to put ConnMan into interactive mode:

connmanctl

This command gives a connmanctl prompt:

connmanctl>

In the shell, turn the agent on so it can process password requests:

  agent on

Now use the connect command with your pasted wifi network string:

  connect wifi_xxxxxxxxxxxx_xxxxxx_managed_psk

Enter your password when prompted:

  Agent RequestInput wifi_xxxxxxxxxxxx_xxxxxx_managed_psk
  Passphrase = [ Type=psk, Requirement=mandatory ]
  Passphrase?

You will be notified that you are connected:

  Connected wifi_xxxxxxxxxxxx_xxxxxx_managed_psk

Exit connmanctl interactive mode:

  quit

Step 3: Test Connection

Finally, you can test your connection to the internet with ping. Google’s DNS server at the IP address 8.8.8.8 is probably the most reliable computer on the internet, so:

ping -c 4 8.8.8.8

Expect ping to output some timing messages:

PING 8.8.8.8 (8.8.8.8): 56 data bytes
64 bytes from 8.8.8.8: seq=0 ttl=60 time=7.631 ms
64 bytes from 8.8.8.8: seq=1 ttl=60 time=7.474 ms
64 bytes from 8.8.8.8: seq=2 ttl=60 time=7.697 ms
64 bytes from 8.8.8.8: seq=3 ttl=60 time=9.004 ms

--- 8.8.8.8 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 7.474/7.951/9.004 ms

The -c 4 option means it will happen only 4 times.

Congratulations! You are now Connected to a Network

If your connection is not successful, then ping will tell you your network is down:

PING 8.8.8.8 (8.8.8.8): 56 data bytes
ping: sendto: Network is unreachable

Troubleshooting Connection Problems

Disconnect from Network with Connman

To disconnect from your network, you might first want a reminder of the unfriendly string used to describe your access point:

connmanctl services

This command will output information about your current connection:

YOUR_NETWORK         wifi_xxxxxxxxxxxx_xxxxxx_managed_psk

Copy and paste the string ID along with the disconnect command:

connmanctl disconnect wifi_xxxxxxxxxxxx_xxxxxx_managed_psk

You will be notified when it has disconnected:

Disconnected wifi_xxxxxxxxxxxx_xxxxxx_managed_psk

Forget Network with Connman

Generally, ConnMan will remember and cache setup information. This means that if you reboot in the vicinity of a known network, it will attempt to connect. However, if you need to forget a network setup, navigate to:

cd /var/lib/connman/

You can delete a single connection by seeing which are stored and copying the one you want to delete:

/var/lib/connman # ls
settings
wifi_xxxxxxxxxxxx_xxxxxx_managed_psk
wifi_xxxxxxxxxxxx_xxxxxx_managed_none

Then delete that connection:

rm -r wifi_xxxxxxxxxxxx_xxxxxx_managed_psk

You can delete all the “wifi” connections with:

rm -r wifi*

The -r is needed because these are directories you are deleting and the star at the end of wifi* assumes your connection IDs all start with the string “wifi”.

WiFi Setup: Debian

If you are using the Debian OS you will find that ConnMan is not installed, you will need to use Networking/CLI or the command nmcli instead.

Requirements

Step 1: List available Wi-Fi networks

In terminal type:

nmcli device wifi list

The output will list available access points:

*  SSID      MODE   CHAN  RATE       SIGNAL  BARS  SECURITY
*  YOUR_NETWORK    Infra  11    54 Mbit/s  100     ▂▄▆█  --
   CatCafe         Infra  6     54 Mbit/s  30      ▂___  WPA1 WPA2
   2WIRE533        Infra  10    54 Mbit/s  44      ▂▄__  WPA1 WPA2

Step 2: Connect

You can connect to password protected or open access points.

No Password

To connect to an open network with no password:

sudo nmcli device wifi connect "YOUR_NETWORK_SSID" ifname wlan0

These commands will respond with information about the connection. A successful connection looks like:

Connection with UUID 'xxxxxxxx-yyyy-zzzz-xxxx-yyyyyyyyyyyy' created and activated on device 'wlan0'

Password Protected

To connect to a password protected network, use this command inserting your own network name and password:

sudo nmcli device wifi connect "YOUR_NETWORK_SSID" password "UR_NETWORK_PASSWORD" ifname wlan0

These commands will respond with information about the connection. A successful connection looks like:

Connection with UUID 'xxxxxxxx-yyyy-zzzz-xxxx-yyyyyyyyyyyy' created and activated on device 'wlan0'

Hidden SSID and Password Protected

To connect to a hidden and password-protected network:

sudo nmcli device wifi connect "YOUR_NETWORK_SSID" password "UR_NETWORK_PASSWORD" ifname wlan0 hidden yes

Step 3: Test your Connection

You can verify and test your wireless network connection.

Verify

nmcli device status

This outputs a list of the various network devices and their connections. For example, a successful connection would look like this:

DEVICE   TYPE      STATE         CONNECTION
wlan0    wifi      connected     YOUR_NETWORK
wlan1    wifi      disconnected  --
ip6tnl0  ip6tnl    unmanaged     --
lo       loopback  unmanaged     --
sit0     sit       unmanaged     --

Because it is worth knowing that Linux offers many ways of doing things, another command that shows your current active connection is:

nmcli connection show --active

Which outputs:

NAME           UUID                                  TYPE             DEVICE
YOUR_NETWORK   xxxxxxxx-yyyy-zzzz-xxxx-yyyyyyyyyyyy  802-11-wireless  wlan0

After you have connected once, C.H.I.P. Pro will automatically connect to this network next time you reboot (or start NetworkManager services).

Test

Finally, you can test your connection to the internet with ping. Google’s DNS server at the IP address 8.8.8.8 is probably the most reliable computer on the internet, so:

ping -c 4 8.8.8.8

Expect ping to output some timing messages:

PING 8.8.8.8 (8.8.8.8): 56 data bytes
64 bytes from 8.8.8.8: seq=0 ttl=60 time=7.631 ms
64 bytes from 8.8.8.8: seq=1 ttl=60 time=7.474 ms
64 bytes from 8.8.8.8: seq=2 ttl=60 time=7.697 ms
64 bytes from 8.8.8.8: seq=3 ttl=60 time=9.004 ms

--- 8.8.8.8 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 7.474/7.951/9.004 ms

The -c 4 option means it will happen only 4 times.

Congratulations! You are now Connected to a Network

If your connection is not successful, then ping will tell you your network is down:

PING 8.8.8.8 (8.8.8.8): 56 data bytes
ping: sendto: Network is unreachable

Disconnect Network with Nmcli

Disconnect from the wireless device:

sudo nmcli dev disconnect wlan0

Forget Network with Nmcli

You may want to prevent auto-connection to a network. If so, you want the device to forget the a specific network. First, list the connections:

nmcli c

Which outputs something like:

NAME           UUID                                  TYPE             DEVICE
YOUR_NETWORK   xxxxxxxx-yyyy-zzzz-xxxx-yyyyyyyyyyyy  802-11-wireless  wlan0

Then delete the network specified between quotes to forget it:

sudo nmcli connection delete id "YOUR_NETWORK"

Troubleshooting Connection Problems

No network within range. If there’s no network, you can’t connect. Go find a network!

If you type in the wrong password, you’ll get some errors like this:

[32258.690000] RTL871X: rtw_set_802_11_connect(wlan0) fw_state=0x00000008
[32258.800000] RTL871X: start auth
[32263.720000] RTL871X: rtw_set_802_11_connect(wlan0) fw_state=0x00000008
[32263.820000] RTL871X: start auth
[32264.430000] RTL871X: auth success, start assoc
[32269.850000] RTL871X: rtw_set_802_11_connect(wlan0) fw_state=0x00000008
[32269.970000] RTL871X: start auth
Error: Timeout 90 sec expired.

Try connecting again with the correct password.

If you don’t have access to the internet, your ping to an outside IP will fail. It is possible that you can connect to a wireless network, but have no access to the internet, so you’d see a connection when you request device status, but have a failed ping. This indicates a problem or restriction with the router or the access point.

A failed ping looks something like:

From 192.133.2.10 icmp_seq=14 Destination Host Unreachable
From 192.133.2.10 icmp_seq=15 Destination Host Unreachable
From 192.133.2.10 icmp_seq=16 Destination Host Unreachable
18 packets transmitted, 0 received, +9 errors, 100% packet loss, time 17013ms
pipe 4

Change the router or access point permissions to allow a foreign board to connect to it. Alternatively, a personal mobile hotspot can obtained and used if you are in a work environment that can not change its network security settings.

A sudden, unplanned disconnection will post an error in the terminal window:

[30863.880000] RTL871X: linked_status_chk(wlan0) disconnect or roaming

The Network Manager will periodically try to reconnect. If the access point is restored, you’ll get something like this in your terminal window:

[31798.970000] RTL871X: rtw_set_802_11_connect(wlan0)
[31799.030000] RTL871X: start auth
[31799.040000] RTL871X: auth success, start assoc
[31799.050000] RTL871X: rtw_cfg80211_indicate_connect(wlan0) BSS not found !!
[31799.060000] RTL871X: assoc success

If you try to use nmcli and you get an error that it is not found or is not a command, chances are that you are using a C.H.I.P. Pro Buildroot image. The nmcli commands only apply to C.H.I.P. Pro using Debian linux.

SSH

Once you connect to an network you can ssh into the C.H.I.P. Pro in order to program and control it. Our Debian example comes with ssh servers, our Buildroot examples do not. If you want to ssh while using Buildroot you will need to do a manual build.

Find IP

ip addr

The IP is on wlan0 or sometimes on wlan1.

Connect

ssh root@<CHIPproIP>

Audio

The C.H.I.P. Pro Development Kit has several ways to access audio in and out. Stereo audio in and out is handled by a 24-bit DAC built-in to the GR8 processor. There are also digital options that you can use, but require configuration of the Linux kernel and additional hardware to access.

Input

There are two (2) analog MEMS (micro electro mechanical) microphones on the Dev Kit. These are enabled by default.

If you want to use the MIC1 and MIC2 pins for audio input, you’ll need to cut a trace.

The “Sleeve” (bottom-most ring) on the TRRS jack can be used as a mono audio input, suitable for microphones commonly built-in to headphones. If you want to used this connector, you’ll need to cut a trace.

Output

The 3.5mm TRRS jack provides stereo output suitable for headphones or amplification to stereo speakers.

USB Accessories

The USB1 port can be used to connect and use popular accessories like storage, MIDI controllers, keyboards, pointing devices, audio hardware, and more. C.H.I.P. Pro does not provide power to the USB1 port on its own, so the Development Kit is a good example of how this works.

USB1 Power

USB1 is provided with 5V from pass-through of the 5V supplied to the USB0+UART micro USB port on the devkit pcb

For high-load devices attached to USB1, make sure an adequate power supply is provided. For example, when you plug in a keyboard and an optical mouse, they will draw too much current from the C.H.I.P. Pro Dev Kit, not leaving enough for the processor. As a result, C.H.I.P. Pro will immediately shut down. There are a few ways to avoid this.

GPIO

C.H.I.P. Pro has a total of 27 GPIO pins ready for use:

To see all the functions C.H.I.P. Pro pins offer check out the Multiplexing table.

pin out

Interacting with Sysfs

The Linux kernel provides a simple sysfs interface to access GPIO from. Depending on the image flashed to C.H.I.P. Pro, the commands used to interact with the sysfs interface will differ. If using the Pro image, you need to act as root and use sudo sh -c with quotes around the command string. For example:

Pro (Debian)

sudo sh -c 'echo 132 > /sys/class/gpio/export'

Buildroot:

echo 132 > /sys/class/gpio/export

Follow along with the examples to learn more about sysfs including how to directly read and write to sysfs. All examples in the GPIO documentation are done using one of NTC’s Buildroot based images.

GPIO Sysfs Numbers

To address a GPIO port via sysfs, you do not use the C.H.I.P. Pro or GR8 pin name. Sysfs sees the pins as another set of numbers. To find out what number to use for each GPIO pin reference the tables below.

Sysfs Pin Numbers

D0 - D7:

C.H.I.P. Pro Pin # 37 36 35 34 33 32 31 30
sysfs # 132 133 134 135 136 137 138 139

TWI1, UART2:

C.H.I.P. Pro Pin # 11 12 13 14 15 16
sysfs # 47 48 98 99 100 101

I2S:

C.H.I.P. Pro Pin # 21 22 23 24 25
sysfs # 37 38 39 40 41

SPI2:

C.H.I.P. Pro Pin # 41 40 39 38
sysfs # 128 129 130 131

PWM:

C.H.I.P. Pro Pin # 9 10
sysfs # 0 1

UART1:

** These pins are connected to the FE1.1S USB hub controller IC which is connected to the micro USB providing USB serial functionality. To use them as GPIO disable the USB hub controller by cutting the “UART Disconnect” traces.

C.H.I.P. Pro Pin # 44 43
sysfs # 195 196

Calculate sysfs Number

If a pin is not listed above you can calculate the sysfs number starting with the GR8 port number. All port numbers are printed on C.H.I.P. Pro for your convenience. They can also be found in the Allwinner R8 Datasheet starting on page 15.

As an example, take a look at D0 which is port PE4. Look at the letter that follows the “P”, in this case it’s “E”. Starting with A = 0, count up in the alphabet until you arrive at “E” and that is the letter index. For example, E=4.

Multiply the letter index by 32, then add the number that follows “PE”:

(4*32)+4 = 132

Export Digital GPIOs

The GPIO control interface can be found at /sys/class/gpio. To explore the sysfs file structure, connect to C.H.I.P. Pro via USB-serial and in a terminal window type:

ls /sys/class/gpio

In the gpio directory you will find:

To read and write to a pin it must first be exported. As an example, use the sysfs number 132 to export pin PE4:

echo 132 > /sys/class/gpio/export

Once exported, a GPIO signal will have a path like /sys/class/gpio/gpioN where N is the sysfs number. In the gpioN directory, you can see what attributes are available to read and write to:

ls /sys/class/gpio/export/gpio132

Learn more about the sysfs interface here.

Digital Input Example

The following example goes through a general command sequence to read the changing state of a pin. This example reads a switch connected to PE4. When wiring up a switch, add an external pull-up or pull-down resistor to prevent a floating pin logic state. The photo below shows a pull-down resistor.

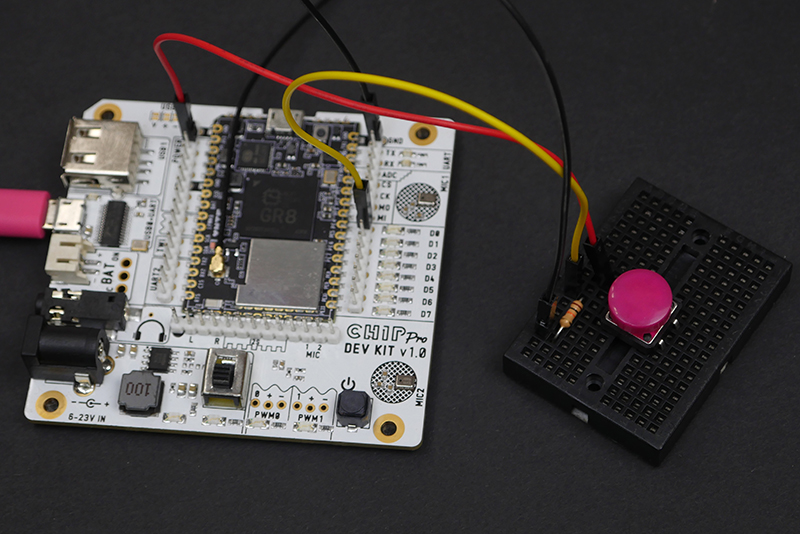

pull-down resistor

In terminal, tell the system you want to listen to a pin by exporting it:

echo 132 > /sys/class/gpio/export

Next, the pin direction needs to be set. Use cat to read what direction the pin is currently set to:

cat /sys/class/gpio/gpio132/direction

Switch the pin’s direction to “in”:

echo in > /sys/class/gpio/gpio132/direction

Connect a switch between pin PE4 and GND and read the value:

cat /sys/class/gpio/gpio132/value

Continuously check the value of the switch pin for its state change:

while ( true ); do cat /sys/class/gpio/gpio132/value; sleep 1; done;

Unexport:

echo 132 > /sys/class/gpio/unexport

Digital Output Example

Onboard LEDs

The Dev Kit provides ten onboard LEDs to make testing the GPIOs easy without having to wire anything up. Eight of these LEDs are connected to digital I/O pins that can be turned on and off with standard Linux sysfs commands.

Blinkenlights Image

To start with an example that demos the eight I/Os and two PWM onboard LEDs, flash C.H.I.P. Pro Dev Kit with the Blinkenlights image and view the example scripts using the command-line editor Vi.

Turn LED On and Off

Follow along to turn on and off the LED attached to pin 37.

UART connection

Export the pin and change the mode from “in” to “out”:

echo 132 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio132/direction

Now that it’s in output mode, you can write a value to the pin and turn the LED on and off:

echo 1 > /sys/class/gpio/gpio132/value
echo 0 > /sys/class/gpio/gpio132/value

Unexport:

echo 132 > /sys/class/gpio/unexport

After exporting a pin run this to blink an LED on pin 37.

while ( true ); do echo 1 > /sys/class/gpio/gpio132/value; cat /sys/class/gpio/gpio132/value; sleep 1; echo 0 >  /sys/class/gpio/gpio132/value; cat /sys/class/gpio/gpio132/value; sleep 1; done;

Unexport GPIO

If pins have not been unexported an error will occur stating the pins are "busy” the next time you go to export them. When you are done using a GPIO pin always tell the system to stop listening by unexporting it:

echo 132 > /sys/class/gpio/unexport

PWM

C.H.I.P. Pro can output a PWM signal up to 24 MHz on two pins: PWM0 and PWM1. The Dev Kit also features two places to connect servos that provide the power needed to drive them.

PWM via sysfs

Depending on the image that is flashed to C.H.I.P. Pro, the commands used to interact with the sysfs interface will differ. If using a Pro image, you need to act as root and use sudo sh -c with quotes around the command string. For example:

Pro (Debian)

sudo sh -c 'echo 0 > export' #PWM0

Buildroot:

echo 0 > export #PWM0

All PWM examples are done using one of NTC’s Buildroot based images.

Export PWM Channel

The Linux kernel provides a simple sysfs interface to access PWM from. The PWM controller can be found exported as pwmchip0 at /sys/class/pwm/pwmchip0. To test the PWM channels and explore the sysfs file structure, connect to C.H.I.P. Pro via USB-serial and in a terminal window type:

ls /sys/class/pwm/pwmchip0

In the pwmchip0 directory you will find:

You can see there are two PWM channels available from C.H.I.P. Pro’s PWM controller/chip by using cat:

cd /sys/class/pwm/pwmchip0
cat npwm

Before you can use a channel you need to export it. Use these numbers to reference which pin you would like to export:

C.H.I.P. Pro Pin # 9 10
sysfs # 0 1
echo 0 > export #PWM0
ls

After exporting, you will find that a new directory pwmX, where X is the channel number, has been created. Go into the pwmX directory to check out the attributes available for use:

cd pwm0
ls

In the pwmX directory you will find:

To test the PWM channels follow the examples below.

PWM LED Example

There are two onboard LEDs connected to the PWM pins for testing and learning about pulse width modulation. You can disconnect these PWM LEDs at any time by cutting traces.

PWM0 LED fade

Export a channel, set the polarity and enable PWM0:

echo 0 > /sys/class/pwm/pwmchip0/export
echo "normal" > /sys/class/pwm/pwmchip0/pwm0/polarity
echo 1 > /sys/class/pwm/pwmchip0/pwm0/enable

Set the period to 10000000 nanoseconds (1 second) and the duty cycle to 0:

echo 10000000 > /sys/class/pwm/pwmchip0/pwm0/period
echo 0 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle

From here, set the duty_cycle in nanoseconds. Start dim at 1% and step up to the 100%:

echo 100000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle
echo 500000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle
echo 1000000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle
echo 5000000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle
echo 10000000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle

Disable and unexport:

echo 0 > /sys/class/pwm/pwmchip0/enable
echo 0 > /sys/class/pwm/pwmchip0/unexport

PWM Servo Examples

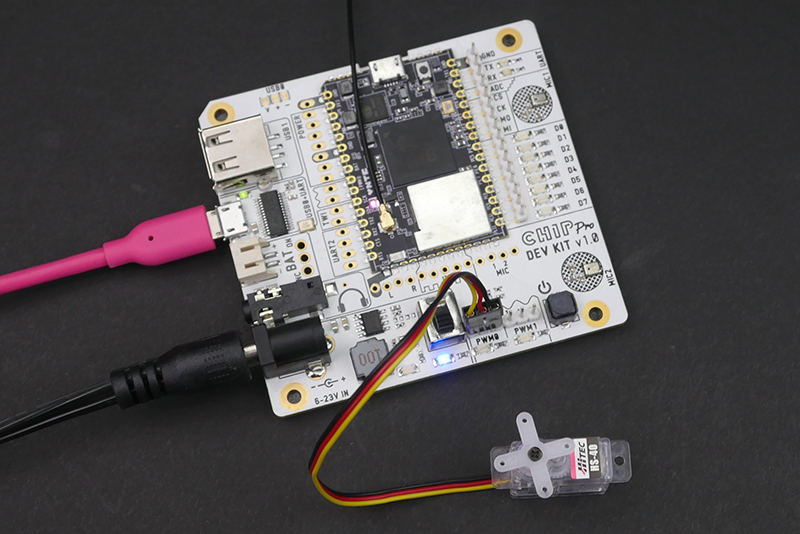

servo connected to dev kit

The C.H.I.P. Pro Dev Kit provides breakout pins to conveniently power and control servos.

Most servos have three pins: power, ground, and a control signal. The control signal is a pulse-width-modulated input signal whose high pulse width (within a determined period) determines the servo’s angular position. The control signal pin draws a small enough amount of current that it can be directly controlled by the PWM pins on C.H.I.P. Pro.

servo connected to dev kit

While the control signal pin draws a low amount of power, the servo motor draws more power than the C.H.I.P. Pro can provide on its own. The Dev Kit helps with this by providing a 5 volt power pin next to the signal and ground pin. This pin is connected to the DC-In barrel jack.

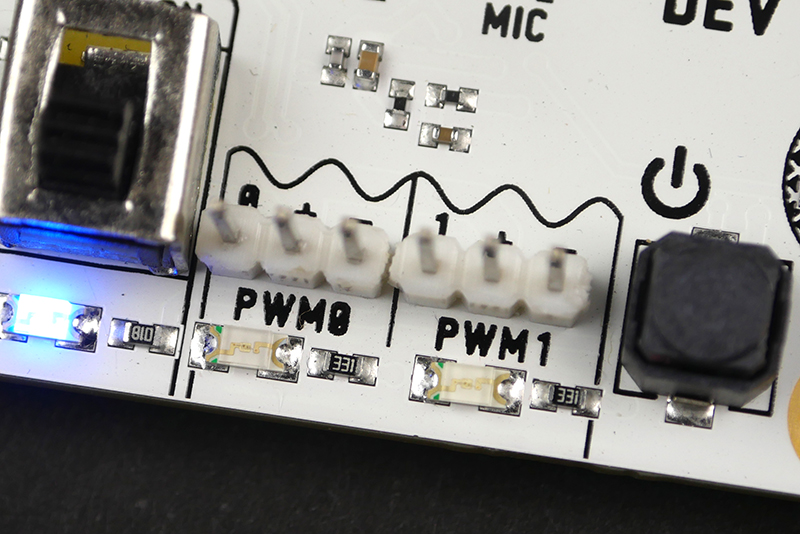

The PWM0 and PWM1 through-holes are staggered just enough to friction hold male header pins. No soldering needed! (•◡•)/

Setup PWM Channel

Export the PWM pin you want to use:

echo 0 > /sys/class/pwm/pwmchip0/pwm0/export

Enable the channel and set the polarity, period of the waveform and duty cycle. Units are in nanoseconds. The polarity can only be set before the pin is enabled. If you set it after enabling a pin the script should still work but you will see a “I/O error”. Most servos operate at 50Hz which translates into a 20000000 ns period. Start the duty cycle at 0:

echo normal > /sys/class/pwm/pwmchip0/pwm0/polarity
echo 1 > /sys/class/pwm/pwmchip0/pwm0/enable
echo 20000000 > /sys/class/pwm/pwmchip0/pwm0/period
echo 0 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle

Once you do this initial setup, to rotate the servo change the duty_cycle. Whatever value is written to the duty_cycle changes the active time of the PWM signal. To get you started, there are two examples below, one rotates a 180º servo, the other rotates and stops a 360º continuous servo.

180º Servo

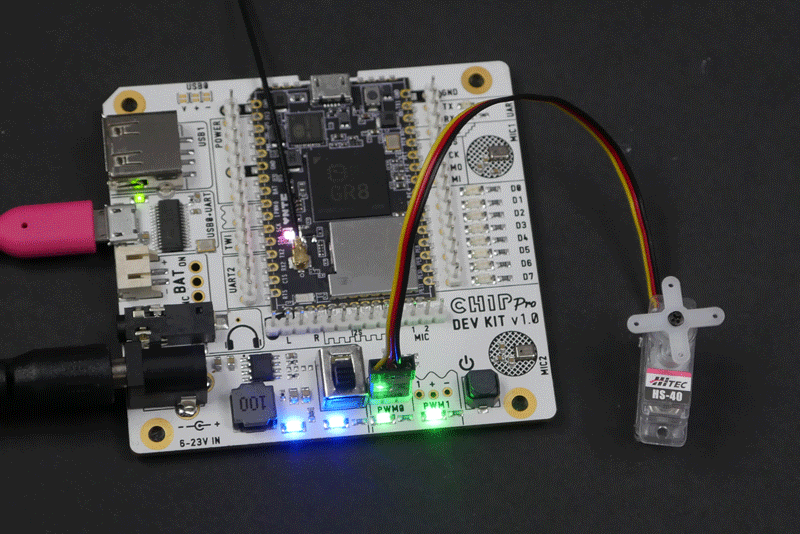

180º servo sweeping

Servo Used in Example

Before you start to work with your servo, check the servo’s datasheet. There you can sometimes find the pulse width range needed to control it.

To rotate 180º most servos require a duty cycle where 1000000 ns/1 ms corresponds to the minimum angle and 2000000 ns/2 ms corresponds to the maximum angle. However, not all servos are the same and will require calibration. For example, the HS-40 used in this example has a minimum of 600000 ns/0.6 ms and maximum of 2400000 ns/2.4 ms. A good place to start is somewhere in the middle like 1500000 ns/1.5 ms. You can then go up and down from there to find the max. and min.

Change the duty cycle to 1500000 ns and step up every 100000 ns to move the servo:

echo 1500000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle
echo 1600000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle
echo 1700000 > /sys/class/pwm/pwmchip0/pwm0/duty_cycle

When done, disable and unexport pin:

echo 0 > /sys/class/pwm/pwmchip0/pwm0/enable
echo 0 > /sys/class/pwm/pwmchip0/unexport
Sweep Script

This script rotates a servo on PWM0 from 0º to 180º while printing the duty cycle. Press Ctrl+C to unexport PWM0 and exit the script. You may need to calibrate the minimum and maximum to fit your servo.

360º Continuos Servo

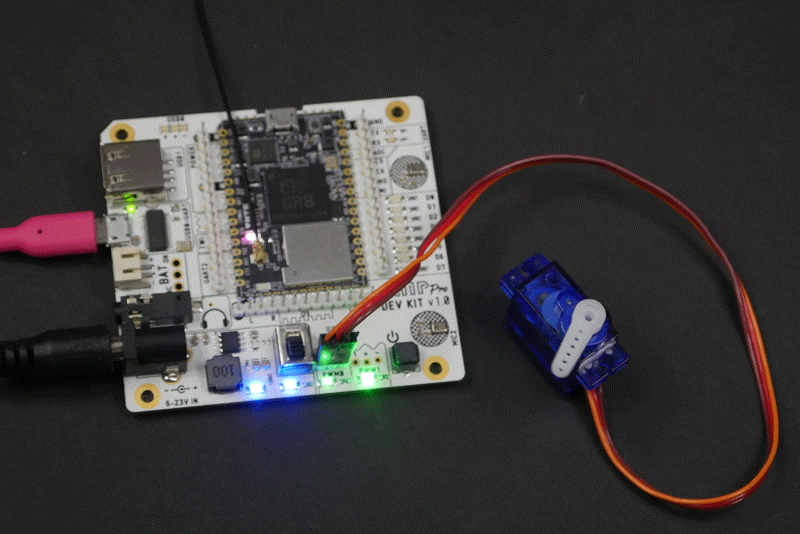

360º sweeping

Servo Used in Example

For a continuous servo the PWM input signal controls the speed, direction of rotation and stopping period. Before you start to work with your servo, check the servo’s datasheet. There you can sometimes find the pulse width range needed to control it.

A typical stop width is 1500000 ns/1.5 ms. The further the time travels above and below the stop width, the slower the rotation speed gets.

Below are the times for the FS90R servo. Yours may be slightly different. A good place to start is 1500000 ns and going 100000 ns up and down from there to find the stop, right and left pulse times.

Sweep Script

This script steps a servo connected to PWM0 through different speeds while rotating in each direction. Press Ctrl+C to unexport PWM0 and exit script. Each speed lasts for two seconds. It stops for one second at 1500000 ns before rotating in the opposite direction.

Unexport PWM

If pins have not been unexported an error will occur stating the pins are “busy” the next time you go to export them. When you are done using a PWM pin always tell the system to stop listening by unexporting it:

echo 0 > /sys/class/gpio/unexport #PWM0

Power

Powering Off

After C.H.I.P. Pro has been flashed with a new image you can power off the board by holding the power button on the dev board down (for about 5 seconds). Wait for the power and status LEDs to turn off.

power off button

If running processes while connected to C.H.I.P. Pro we recommend powering off C.H.I.P. Pro via command line:

Buildroot

poweroff

Debian

sudo poweroff

In this instance the software puts all processes away properly making it is safe to remove the power supply from the Dev Kit without the risk of losing data.

Power C.H.I.P. Pro Dev Kit

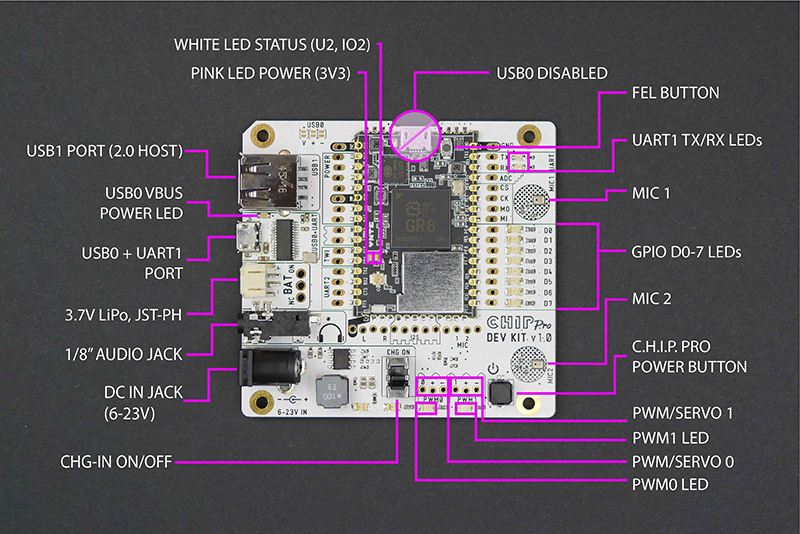

image page

There are three ports on the Dev Kit that support three different power supplies:

Power can also be provided to three pins to power C.H.I.P. Pro:

Power Out

The C.H.I.P. Pro Dev kit can provide power to sensors and peripherals.

Battery Charging and BTS Pin

The Dev Kit uses the AXP209 IC to manage charging. Pin 7 marked BATTEMP or BTS is directly connected to the TS pin on the AXP209. This pin supports a thermistor to monitor the battery temperature when the battery is charging or discharging. If you do not incorporate a thermistor into your setup the pin may float from ground interferring with how much charge current is throttled to the BAT pin and the JST connector. To ensure maximum charge current without a thermistor disable the battery temperature monitoring system.

There are two ways to do this:

sudo i2cset -y -f 0 0x34 0x82 0x82

The AXP209 IC is seen as a I2C device on C.H.I.P. Pro. By default the AXP209 is tuned for a 10KΩ 1% thermistor at 25°C with a programmable register for thermistor current to adapt to different devices. You can find more information on this setup in the AXP209 Datasheet. Search “ts pin” to quickly find information.

AXP209 Power Management

There are several ways to power the C.H.I.P. Pro Dev Kit and your creative endeavors. The Dev Kit boasts a AXP209 Power System Management IC designed to switch to any available power source. The following table details what happens with some different power scenarios.

Power Source Result
Battery C.H.I.P. Pro is powered by battery, USB1 does not receive 5V
Battery + DC In C.H.I.P. Pro is powered by DC In, battery can be charged up to 1.8A
Battery + USB In C.H.I.P. Pro is powered by USB in, battery can be charged up to 900mA by default, more if the no-limit setting is used
Battery + DC In + USB In C.H.I.P. Pro is powered by DC In, battery is charged
Battery + low amperage DC or USB In Battery powers C.H.I.P. Pro as needed to prevent shut down

Overvoltage can cause permanent damage. Find more details for each port’s specifications in the C.H.I.P. Pro datasheet and AXP209 Datasheet.

Technical Documents

Dev Kit Component Datasheets

Find all the datasheets to the components found on C.H.I.P. Pro Dev Kit here.

Dev Kit Schematics and Design Files

The schematics for C.H.I.P. Pro Dev Kit are available in easy to read PDFs or Eagle design files.

C.H.I.P. Pro Datasheet

The complete datasheet for C.H.I.P. Pro is available in our C.H.I.P. Pro Hardware GitHub repo.

Open Source License

C.H.I.P. Pro Dev Kit is open source hardware and software. Find all you need to build a C.H.I.P. Pro Dev Kit in our Github repo. The Dev Kit is powered by C.H.I.P. Pro. Find all technical documents for C.H.I.P. Pro in its own dedicated repository. Search our repositories for core and developing software. For up-to-date announcements on software releases visit our website and sign up to our newsletter. Or, join the community on our forum where we actively post announcements.

Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License.

What’s on the Board

C.H.I.P. Pro Dev Kit Features

Front Callouts

Pin Headers

Pin Headers

There are several areas where pin headers can be soldered into through-holes for easy access and control of the pins on C.H.I.P. Pro.

Cuttable Traces

The C.H.I.P. Pro Dev Kit is designed to be flexible for your design and provide valuable built-in hardware. There are several cuttable circuit paths that will disconnect onboard components and reroute power and data to where you need. You can find all of the cuttable paths jumpers outlined in the images below.

Default circuit paths are indicated with a silkscreened bar under the connected pads.

Most of these traces are on the back of the board with one very important exception. The USB0 jumpers on the front are connected to the micro USB0 port on the Dev Kit. This renders the micro USB port on the C.H.I.P. Pro itself unusable. If you would like to use the micro USB port on C.H.I.P. Pro these must be cut.

Front Callouts

Front Traces

Back Traces

How to Cut

Here’s what you need to know about modifying and repairing the traces on the Dev Kit to experiment and test different configurations.

Cut

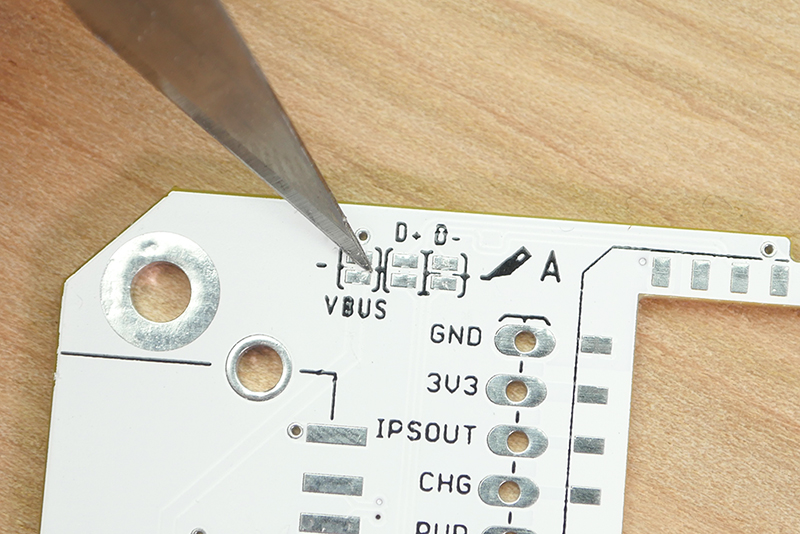

To get the job done you need to grab an X-acto knife or another small, sharp blade. The goal is to cut the trace connecting the two solder pads while NOT cutting anything else. The area to cut is very small so if you happen to own a pair of magnifying eye glasses now is the time to use them! To help stay in one place and not accidentally run the blade over another trace think of the cutting action as more of a digging one.

Cut Jumper

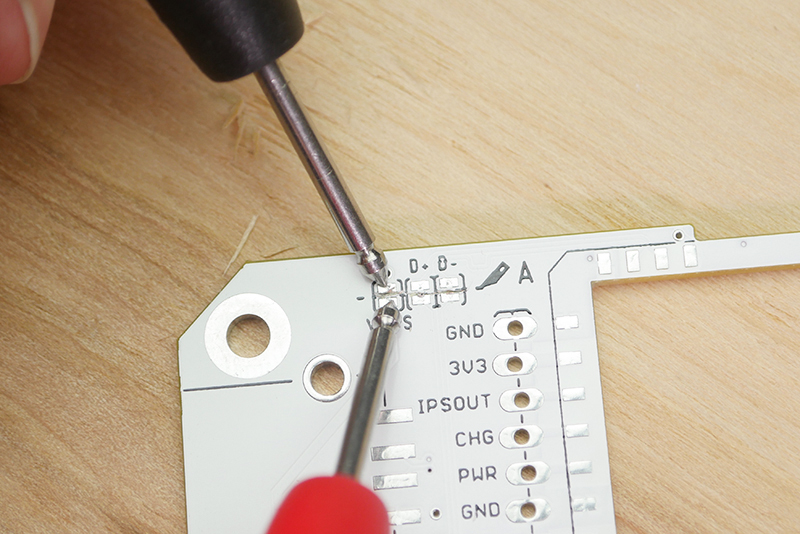

When you feel like you may have successfully cut through test the connection with your multimeter to confirm the disconnect.

Test Jumper

Cut-and-Solder

Some of these require both a trace cut and a solder bridge. For example, the MIC1 power has three pads. Cut between two of the pads, and bridge two with solder.

Solder and Cut Jumper

Revert and Repair

Once you cut a trace it can be reverted to the original behavior. To replace the jumper solder a small piece of wire across all the contacts you wish to reconnect, or, if you are nimble, bridge the contacts with a solder blob.

If you need some reminding, circuit paths that came as default are indicated with a silkscreened bar under the originally connected pads.

Solder Bridge
