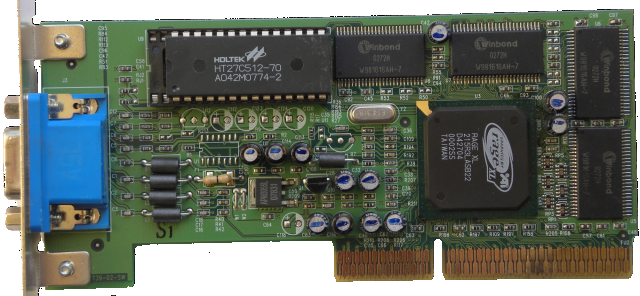

ATI 3D Rage XL/XC
The 3D Rage XL and 3D Rage XC were two cards launched by ATI in 1999. ATI had moved to a 0.25 micron manufacturing process which reduced the die size of the Rage 3 chipset. The Rage XL and Rage XC cards which used this were basically Rage Pro Turbos with integrated TMDS for flat panels and added motion compensation.
 |
Released | 1999 |
| Bus | AGP 2x | |
| Chipset | ATi Rage3 (Mach64GM) | |
| Standards | VGA and SVGA | |
| Memory | 4 MB or 8 MB SDRAM (64-bit bus) | |
| Ports | 15-pin DSUB (RGB analogue) | |
| Part # | ||
| FCC ID | ||
| Price | ||
| See Also | 3D Rage Pro Turbo |
The memory on these cards ran at a slower 83 MHz compared to the Rage Pro Turbo's 125 MHz. The cards were compatible with DirectX 5.0 and OpenGL 1.1.
I am not sure of the differences between the XL and XC variant.
Board Revisions
Competition
In the Media
Setting it Up
There is no hardware configuration required for the 3D Rage XL or XC.
Downloads
Operation Manual Get in touch if you can provide this missing item! |
Original Utility Disk Get in touch if you can provide this missing item! |
VGA BIOS ROM Get in touch if you can provide this missing item! |
