My CPU Collection

The purpose of this page is simply to catalogue the CPUs in my own personal collection and more importantly, keep placeholders for those that are missing. I'm not really a CPU collector ("I gotta have 'em all!"), but I do have a pretty ok stash of PC hardware to be able to build almost any PC from 1985 to 2000 without using too much "out of era" kit.

So anyway, here goes... there are just over 100 in my collection - all CPUs are tested and working unless otherwise stated, are sorted by socket, then by manufacturer, then by speed in MHz/GHz. Oh, and these are desktop PC CPUs, so no laptop/surface-mount CPUs in this list. All prices include P&P (packing and shipping).

I N D E X

Pre-Socket CPUs
Socket 3 CPUs
Socket 5 CPUs
Socket 7 CPUs
Ancillary Chips

Pre Socket CPUs

Intel 8088 (1979)	(x4). Stamped 1978. Brand new, never used. 5 MHz. Bought for £2.50 each in Jan 2013. Prices in late 2020 not incl. P&P: £2 to £3 each Prices in Nov 2022 not incl. P&P: two for £6, two for £7.50, £17.73, £13.23, £8.85
Intel 8088-2 (1981)	Fujitsu-branded from 1981. 8 MHz. Bought for £2.50 each in Jan 2013. Prices in late 2020 not incl. P&P: £2 to £3 each Prices in Nov 2022 not incl. P&P: £26.54 (white ceramic), £6.33
Intel 8086 (1979)	(x2). From 1979. 5 MHz. Bought for £10 each in 2018. Prices in late 2020 not incl. P&P: £2.50 to £20 each
Intel 8086-2 (1981)	Fujitsu-branded from 1981. 8 MHz. Prices in Nov 2022 not incl. P&P: £21.05, £7.98, £5.27, £5.05, £2.34
NEC V20 (1982)	(x4). From 1984. Brand new, never used. 16 MHz. Bought for £2 each in 2018. Prices in late 2020 not incl. P&P: £4 to £16 each. Prices in mid 2021 not incl. P&P: £4 to £17 each. Prices in Nov 2022 not incl. P&P: £4.42, £9.48, £17.73, £26.60, £18.95, £20.50, £21.28, £7.98
NEC V30 (1982)	MISSING FROM COLLECTION Prices in mid 2021 not incl. P&P: £16 to £19 each. Prices in Nov 2022 not incl. P&P: £8.95, £6.33, £17.73, £13.23, £8.85
Intel 80286-6 (1983)	Came with IBM 5170 motherboard which I paid £30 for incl. an Intel AboveBoard 128KB RAM card and 5170 PSU and original ROMs in 2019. Prices in late 2020 not incl. P&P: £16
Intel 80286-12 (1983)	1 x Intel-branded one came with Octek DCS-286 motherboard which I paid £48 for in 2014. 1 x Siemens-branded that came with the LM103S 80286 motherboard I bought for £37 in 2021, along with an 80287-10 coprocessor. Prices in late 2020 not incl. P&P: £6.50 to £10. Prices in Nov 2022 not incl. P&P: £8.86, £5.32, £5, £7.45, £5.05
Intel 80286-16 (1984)	(x4). Siemens-branded. Bought for £4.95 each in 2017. Prices in Nov 2022 not incl. P&P: £5.72, £8.85, £4.79, £27.39 (gold version)
Intel 80286-20	MISSING FROM COLLECTION Harris-branded. They were the only authorised manufacturer to push the 80286 architecture beyond 16 MHz. Originals are quite rare. Watch out for fake chips. Prices in Nov 2022 not incl. P&P: £8.46
Intel 80286-25	2 x Harris-branded, 1 x Harris/Intersil-branded. They were the only authorised manufacturer to push the 80286 architecture beyond 16 MHz. Originals are quite rare. Watch out for fake chips. 1 x Bought in Dec 2020 for £11.28 + £4.54 P&P. 1 x Bought in Oct 2021 for $15 + $17.40 P&P (£10.90 + £12.65 P&P at the time). Prices in mid-2021 not incl. P&P: £12 Prices in Nov 2022 not incl. P&P: £14.84
Intel 80386DX-16	(x3). Can't recall where I picked these up, but they're double-sigma (bug-free) ones. Prices in mid-2021 not incl. P&P: £22
Intel 80386DX-20	Came with my Chips & Technologies motherboard in 2013. Requires standard 386 PLCC 132-pin socket. This chip has the double sigma symbol, which means it has been tested and is bug-free.
Intel 80386DX-25	MISSING FROM COLLECTION Prices in mid-2021 not incl. P&P: £5 to £25
Intel 80386DX-33 (1985)	This is the first stepping of the 386DX-33, SX211. Requires standard 386 PLCC 132-pin socket. This chip has the double sigma symbol, which means it has been tested and is bug-free. Bought in Mar 2021 for £15 + £1.50 P&P. Prices in mid-2021 not incl. P&P: £13 to £51
AMD Am386DX-33	MISSING FROM COLLECTION Prices in late 2020 not incl. P&P: £14 Prices in mid-2021 not incl. P&P: £16
AMD Am386DX/DXL-40	The fastest native 386 CPU produced! Should work in any 80386 (QFP-132) socket. Bought for £14.50 in Nov 2019. Prices in late 2020 not incl. P&P: £8, £31, £20 Prices in mid-2021 not incl. P&P: £6, £12, £19, £21

Socket 3 CPUs

Intel 80486SX-16 (Apr 1991)	16 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V MISSING FROM COLLECTION
Intel 80486SX-20 (Sep 1991) SX406	20 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V MISSING FROM COLLECTION Prices in mid-2021 not incl. P&P: £13
Intel 80486DX-20 (Jun 1989)	20 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V MISSING FROM COLLECTION
Intel 80486SX-25 (Sep 1991) SX468 SX679 SX798	25 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V. "S"-series processor, as it has &E5V1X stamped on the chip. CPUID = 0423 Codename P4S. Bought for £39.99 in 2015 as a bundle that included 3 x FIC 486-VIP-IO2 motherboards and 3 x 486 CPUs. Prices in late 2020 not incl. P&P: £3.50 to £5. Prices in mid-2021 not incl. P&P: £22 Prices in early 2022 not incl. P&P: £13
Intel 80486DX-25 (Jun 1989)	25 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V Prices in late 2020: £12 Prices in mid-2021 not incl. P&P: £25 MISSING FROM COLLECTION
Intel 80486SX-33 (Sep 1992) SX680 SX797 SX902 SX931	33 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5VRequires Socket 3 with 5V "S"-series processor, as it has &E5V1X stamped on the chip Bought for £39.99 in 2015 as a bundle that included 3 x FIC 486-VIP-IO2 motherboards and 3 x 486 CPUs. Prices in late 2020 not incl. P&P: £8.50 Prices in early 2022 not incl. P&P: £13
Intel 80486DX-33 (May 1990) SX419 SX666 SX729	(x2) 33 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V. You can't have enough of these in your collection - dirt cheap and were the fastest non-clock doubled/tripled Intel version with the math coprocessor. A solid CPU from 1990-1992. Prices in late 2020 not incl. P&P: £10 Prices in early 2022 not incl. P&P: £8, £18, £20
Intel 80486DX2-40 (Mar 1992) SX809	20 MHz FSB, 2x multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V. "S"-series processors have &E3V1X stamped on the chip. Prices in late 2020 not incl. P&P: Unknown - these seem to be fairly rare. MISSING FROM COLLECTION
Intel 80486SX2-50	25 MHz FSB, 2x multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V "S"-series processor, as it has &E5V1X stamped on the chip. Bought for £39.99 in 2015 as a bundle that included 3 x FIC 486-VIP-IO2 motherboards and 3 x 486 CPUs. Prices in late 2020 not incl. P&P: £15 to £42.
Intel 80486DX-50 (Jun 1991)	50 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V. Prices in late 2020: £14 Prices in mid-2021 not incl. P&P: £18 MISSING FROM COLLECTION
Intel 80486DX2-50 (Mar 1992) SX808	25 MHz FSB, 2x multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V. Prices in late 2020: £12. MISSING FROM COLLECTION
Intel 80486SX2-66	33 MHz FSB, 2x multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V MISSING FROM COLLECTION
Intel 80486DX2-66 (Mar 1992) SX645	(x3) 33 MHz FSB, 2x multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V – use heatsink Prices in late 2020 not incl. P&P: £4 to £20. Prices in mid-2021 not incl. P&P: £8, £15,£18, £20 1 NOT WORKING, 2 WORK
Intel 80486DX4-75 (Mar 1994) SK047	25 MHz FSB, 3x multiplier. 16KB L1 write-through cache. Requires Socket 3 with 3V +/-0.3V Prices in late 2020 not incl. P&P: £12 MISSING FROM COLLECTION
Intel 80486DX4-100 (Mar 1994)	33 MHz FSB, 3x multiplier. 16KB L1 cache. If chip has "&EW" this is write-back. If it has "&E" it is write-through. Requires Socket 3 with 3V 3V +/-0.3V. Mine = SK051. S-Spec. WT only, not WB Prices in late 2020 not incl. P&P: £18 Prices in mid-2021 not incl. P&P: £27, £30 NOT WORKING
Intel 486 Overdrive ODP486SX-25	Prices in late 2020: £21 MISSING FROM COLLECTION
Intel 486 Overdrive ODP486DX-25 SZ697	Prices in early 2022: £31 MISSING FROM COLLECTION
Intel 486 Overdrive ODPR486DX-33	Prices in late 2020: £25 MISSING FROM COLLECTION
Intel 486 Overdrive DX2ODPR50	Prices in late 2020: £40 MISSING FROM COLLECTION
Intel 486 Overdrive DX2ODPR66	Prices in late 2020: £23 Prices in mid-2021 not incl. P&P: £22 MISSING FROM COLLECTION
Intel 486 Overdrive DX4ODP75	Prices in mid-2021 not incl. P&P: £22 MISSING FROM COLLECTION
Intel 486 Overdrive DX4ODP100	Prices in late 2020: £30 MISSING FROM COLLECTION

AMD Am486DX2 and Am486DX4 codes:

"N"=No ICE microcode, blank=Contains Intel's ICE microcode, "S"-prefix=Enhanced Am486 (CPU has SMM, stop-clock control, and WB cache).
"V"=3.3V core with 5V-tolerant I/O
'8'=8KB cache, '16'=16KB
"B"=L1 cache has Write Back policy, "T"=Write Through cache policy
"G"=168-pin PGA package
blank=Commercial temp (0-85), "I"=Qualified at Industrial temperature range (-40-100)

AMD Am486SX-33 (Jul 1993)	MISSING FROM COLLECTION
AMD Am486DX-33 (Apr 1993) 24361	MISSING FROM COLLECTION
AMD Am486DX-40 (Apr 1993) 24361	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £12.66 Typical prices mid-2021 not incl. P&P: £15, £26 Typical prices early-2022 not incl. P&P: £45
AMD Am486SX-40 (Jul 1993)	MISSING FROM COLLECTION
AMD Am486SX2-50 24361	MISSING FROM COLLECTION
AMD Am486DX2-50 (Jun 1993) 24361	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £12.05
AMD Am486SX2-66 (Apr 1994)	MISSING FROM COLLECTION
AMD Am486DX2-66 25220 25253 No code (Jun 1993) V8T (1994) V8B (1994) NV8T (Aug 1995) V16T (Mar 1997) V16B (Mar 1997)	Mine = NV8T (write-through cache). 33 MHz FSB, 2x multiplier. Date stamp is week 10 1995. Still Socket 3 but needs 3V to 3.5V, so voltage regulator on mobo needed. 8K L1 cache. NOT WORKING Typical prices mid-2020 not incl. P&P: £10.86, £12.05 Typical prices late-2020 not incl. P&P: £10 Typical prices mid-2021 not incl. P&P: £8, £9, £12, £18 Typical prices early-2022 not incl. P&P: 45
AMD Am486DX2-80 25253 No code, V8T (Sep 1994) NV8T (Aug 1995) SV8B (Mar 1996)	40 MHz FSB, 2x multiplier, 8KB L1 WT cache. 5V. This is the fastest regular 486-type CPU that has also been available as a native 5V part. Mine has no code and has a date stamp of week 34 1994, so a really early one. Bought for £12.88 in 2020. Typical prices mid-2020 not incl. P&P: £13.57, £12.86, £13.67, £18.73 Typical prices late-2020 not incl. P&P: £12, £8.50 Prices in mid-2021 not incl. P&P: £7, £14, £17
AMD Am486DX4-75 No code (Sep 1994)	25 MHz core clock, 3x multiplier. 25 MHz FSB. 8KB L1 WT cache. 3.3V. MISSING FROM COLLECTION
AMD Am486DX4-90 (Sep 1994)	30 MHz core clock, 3x multiplier. 30 MHz FSB. 8KB L1 WT cache. 3.3V. MISSING FROM COLLECTION
AMD Am486DX2-100 (Sep 1994) V8T (1994) V8B (1994) V16B (1995)	50 MHz core clock, 2x multiplier. 50 MHz FSB. 3.3V. V8T has an 8KB L1 WT (write-through) cache. V8B and V16B are Write-Back cache versions, with V8B having an 8KB cache, and V16B having a 16KB cache. MISSING FROM COLLECTION

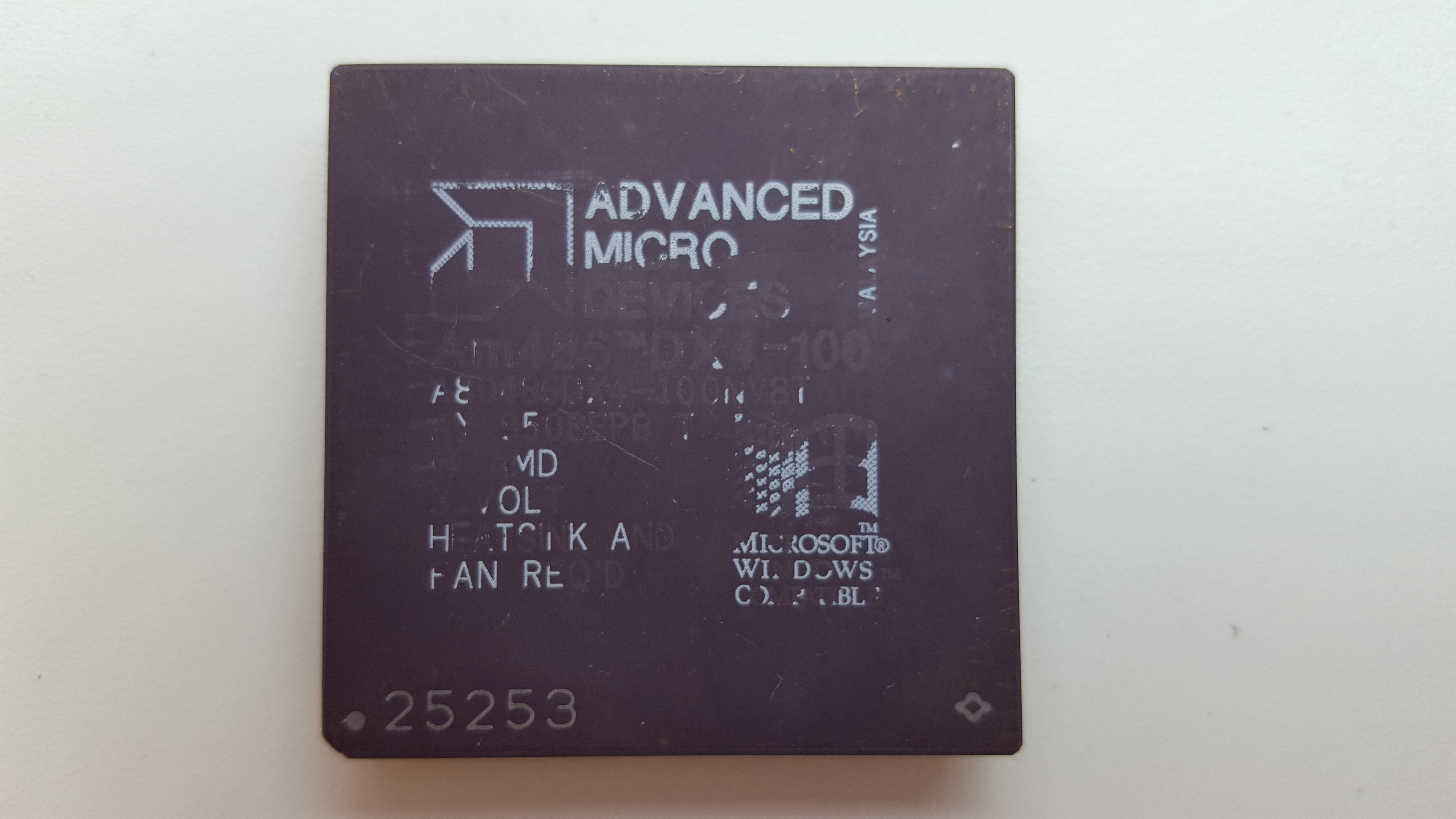

AMD Am486DX4-100 25398 25544 V8T (1994) V16B (Mar 1997) NV8T (1995) SV8B (1996?) SV16B (1997?)	Mine = NV8T (write-through cache). 33 MHz FSB, 3x multiplier. Date stamp is week 8 of 1994. SV16B is the best, with 16KB L1 WB cache with enhancements. 2nd best is the V16B, with 16KB L1 WB cache. Typical prices mid-2020 not incl. P&P: £8.14, £15.38, £11.75, £11.95, £23, £31.54, £13.67 Typical prices late-2020 not incl. P&P: £14, £17, £5, £13 Typical prices mid-2021 not incl. P&P: £10, £15, £17, £20, £29
AMD Am486DX4-120 25398 V8T (1995) NV8T (1995) SV8B (1996?)	40 MHz FSB, 3x multiplier. Mine = SV8B :-) Date stamp is week 2 of 1996. Requires Socket 3 with 3.3V. CPU has 8K L1 "write-back" cache - use heatsink and fan Bought for £19.66 in 2018. Typical prices mid-2020 not incl. P&P: £22.61, £16.00 Typical prices late-2020 not incl. P&P: £40
AMD K5-PR75-ABR (Oct 1996)	(x2). Uses AMD's 2nd revision of the K5 with SSA/5 core. 50 MHz FSB, 1.5x multiplier. Actual CPU clock runs at 50 MHz. This is one of the older, slower SSA/5 core K5s, but was manufactured on the newer 350nm process. First chip has date stamp wk23 1996, second has wk20 1996. Bought for £13.05 in 2018. Second one bought for £13.69 in 2020.
AMD K5-PR90ABQ (Oct 1996)	90 MHz clock, 60 MHz FSB, 1.5x multiplier setting. 8KB or 16KB L1 cache. This is one of the older, slower SSA/5 core K5s, but was manufactured on the newer 350nm process. MISSING FROM COLLECTION

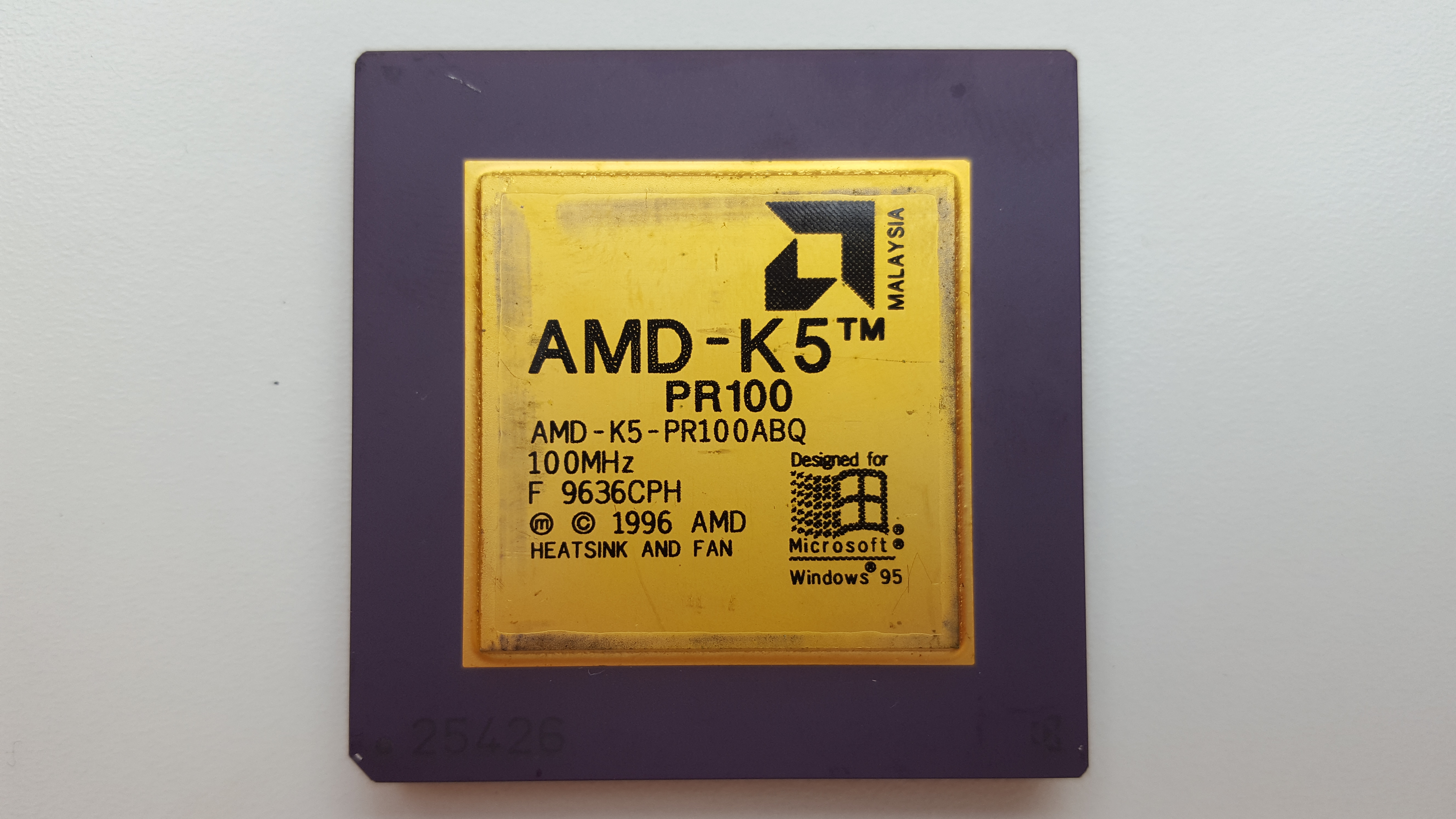

AMD K5-PR100-ABQ (Jun 1996)	66 MHz FSB, 1.5x multiplier. Actual CPU clock runs at 75 MHz. This is one of the older, slower SSA/5 core K5s, but was manufactured on the newer 350nm process. Bought for £20.45 in 2018. Typical prices mid-2020 not incl. P&P: £14.99, £16.99, £5.71, £16.14, £7.70, £11.92
AMD K5-PR120ABQ ABR (Oct 1996)	90 MHz clock, 60 MHz FSB, 1.5x multiplier setting. 8KB or 16KB L1 cache. This is one of the later ones (designated 5k86) following a redesign to improve FPU performance and run cooler. ABR variant can manage up to 70 degrees temp (ABQ only 60 deg). MISSING FROM COLLECTION
AMD K5-PR133-ABR ABQ (Oct 1996)	66 MHz FSB, 2x multiplier setting (internally multiplies at 1.5x). Actual CPU clock runs at 100 MHz. Requires Socket 3 with 3.5V – use heatsink and fan. 16KB L1 cache. This is one of the later ones (designated 5k86) following a redesign to improve FPU performance and run cooler.This one performs better than a Cyrix 6x86-PR166+. ABR variant can manage up to 70 degrees temp (ABQ only 60 deg). Typical prices mid-2020 not incl. P&P: £18.54, £18.09
AMD K5-PR166 ABQ ABX ABR (Jan 1997)	116.66 MHz clock, 66 MHz FSB, 1.75x multiplier setting. 16KB L1 cache. This is one of the later ones (designated 5k86) following a redesign to improve FPU performance and run cooler. ABR variant can manage up to 70 degrees temp (ABQ only 60 degrees, and ABX 65 degrees). MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £16.00, £40.43, £15.45

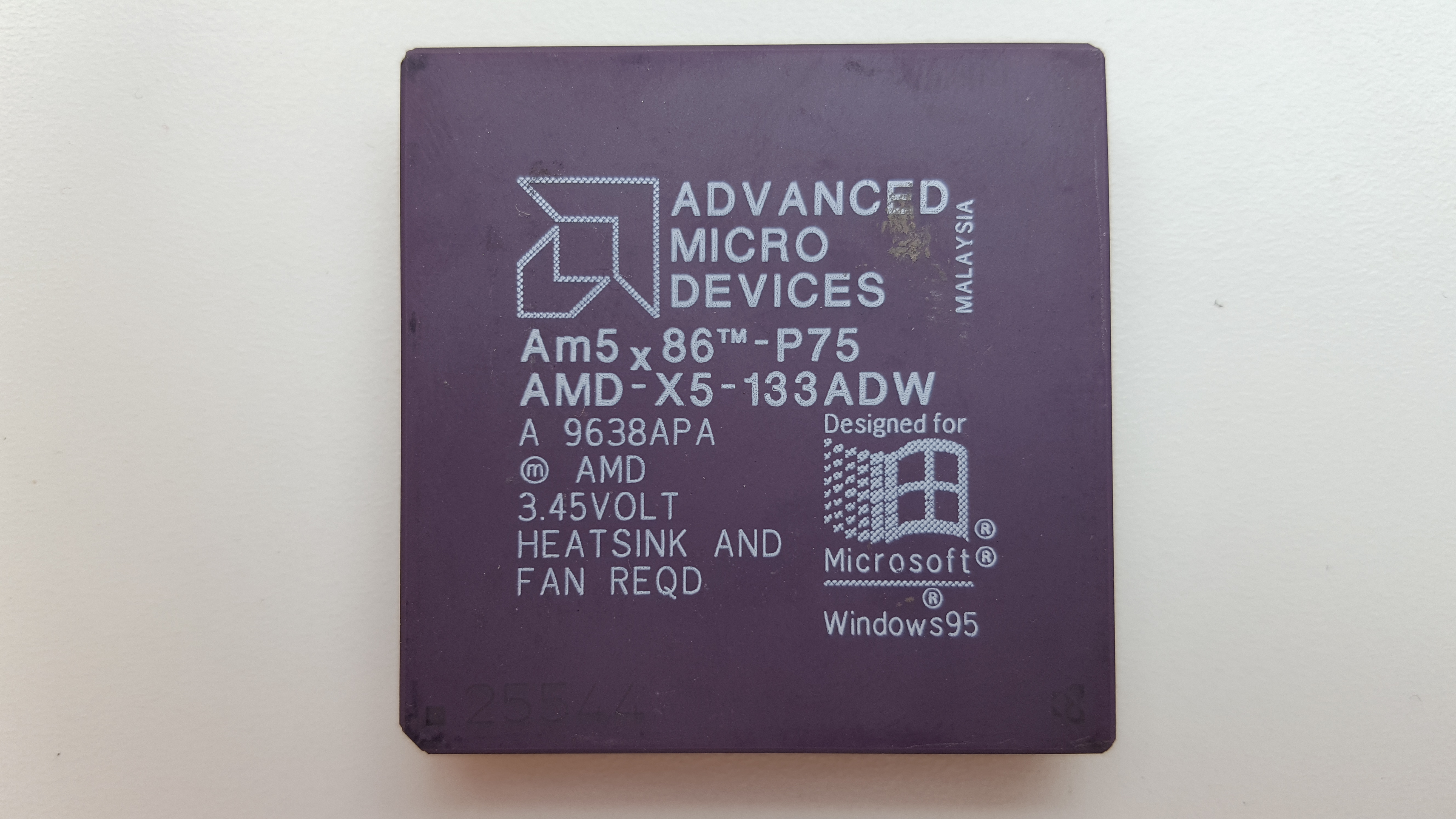

AMD Am5x86-P75 (AMD X5-133ADW) X5-133ADY X5-133ADZ X5-133SDW X5-133SDY X5-133SDZ X5-133SFY X5-133SFZ (Oct 1996)	133 MHz core clock, 33 MHz FSB, 4x clock multiplier, 16KB L1 WB cache. 3rd last letter: 'A' = PGA package, 'S' = SQPF package. 2nd last letter: 'D'=3.45V, 'F'=3.3V. Last letter: 'W'=0-55C, 'Y'=0-75C, 'Z'=0-85C. A bit faster than a 486DX4-100 and similar to a Pentium 75, the Am5x86 has a 486 microarchitecture and runs on Socket 3 with 3.45V - use heatsink and fan. A 160 MHz version on a 40 MHz FSB was mentioned but never sold. Some have overclocked the 133 to run like this, which gives it similar performance to a P-90. Bought for £48 in 2014 as a bundle that included an M919 motherboard, several CPUs, MFM disk controller, video cards and CD-ROM drives. Typical prices mid-2020 not incl. P&P: £20.14 Typical prices late-2020 not incl. P&P: £14, £24 Typical prices mid-2021 not incl. P&P: £35
AMD Am5x86-P83 (AMD X5-150ADW) X5-150ADY X5-133ADZ (Oct 1996)	150 MHz core clock, 50 MHz FSB, 3x clock multiplier, 16KB L1 WB cache. 3rd last letter: 'A' = PGA package. 2nd last letter: 'D'=3.45V. Last letter: 'W'=0-55C, 'Y'=0-75C, 'Z'=0-85C. Similar performance to a Pentium running about 83 MHz, the Am5x86 has a 486 microarchitecture and runs on Socket 3 with 3.45V MISSING FROM COLLECTION

Cyrix Cx486DLC-25GP	MISSING FROM COLLECTION
Cyrix Cx486DRx2 16/32GP	MISSING FROM COLLECTION This is the 132-pin variant, designed to be an upgrade for special 386/486 hybrid motherboards. It is 386 pin-compatible but has a complete 486SX instruction set and 1KB of L1 cache (despite it being called DRx2, it upgrades a 386DX-16 to be like a 486SX-33).
Cyrix Cx486DLC-33GP / V33GP	This is the 132-pin variant, designed to be an upgrade for special 386/486 hybrid motherboards. It is 386 pin-compatible but has a complete 486SX instruction set and 1KB of L1 cache. Bought for £23.13 incl. P&P from USA on 28 Mar 2021. Typical prices mid-2020 not incl. P&P: £18.52 Typical prices late-2020 not incl. P&P: £18 Prices in mid-2021 not incl. P&P: £20
Cyrix Cx486DX-33 / DX-V33	MISSING FROM COLLECTION
Cyrix Cx486DLC-40GP	MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £12.75
Cyrix Cx486DX-40GP	MISSING FROM COLLECTION Prices in mid-2021 not incl. P&P: £16 Typical prices early-2023 not incl. P&P: £16
Cyrix Cx486DRU2-20/40GP+	MISSING FROM COLLECTION
Cyrix Cx486DRx2 20/40GP	MISSING FROM COLLECTION
Cyrix Cx486DX-50GP	MISSING FROM COLLECTION
Cyrix Cx486DX2-50	MISSING FROM COLLECTION
Cyrix Cx486DRx2 25/50GP	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £37.00 Typical prices early-2023 not incl. P&P: £194
Cyrix Cx486DRx2 33/66GP	MISSING FROM COLLECTION
Cyrix Cx486DX2-66GP / V66GP	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £9.75, £9.45, £10.92 Typical prices late-2020 not incl. P&P: £9.18, £9 Typical prices mid-2021 not incl. P&P: £7, £8, £13, £17 Typical prices early-2023 not incl. P&P: £8, £16, £22, £20, £16
Cyrix Cx486DX4-75GP	MISSING FROM COLLECTION
Cyrix Cx486DX2-80 / DX2-V80GP	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £12.86 Typical prices early-2023 not incl. P&P: £24, £18
Cyrix 5x86-80GP	40 MHz FSB. 2x multiplier, 16KB L1 cache. 3.45V. It is not known if this CPU was officially released. MISSING FROM COLLECTION
Cyrix Cx486DX4-100GP / GP4	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £17 Typical prices early-2023 not incl. P&P: £42
Cyrix 5x86-100GP	33 or 50 MHz FSB, 2x or 3x multiplier. 16KB L1 cache. 3.45V. MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £32.27 Typical prices late-2020 not incl. P&P: £23, £45 Typical prices mid-2021 not incl. P&P: £35 Typical prices early-2023 not incl. P&P: £55
Cyrix 5x86-120GP/QP	40 MHz FSB. 3x multiplier, 16KB L1 cache. 3.45V. MISSING FROM COLLECTION Typical prices early-2023 not incl. P&P: £265, £552
Cyrix 5x86-133GP	Very rare. Producers of upgrade kits like Gainbery were given preferential access to these. Some 100 and 120 MHz Cyrix 5x86s have support for 4x mult. This CPU is the fastest stock Socket 3 ever made. MISSING FROM COLLECTION

IBM 486DX2-50GP "Blue Lightning"	Rebranded Cyrix Cx486DX2-50. MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £15.00

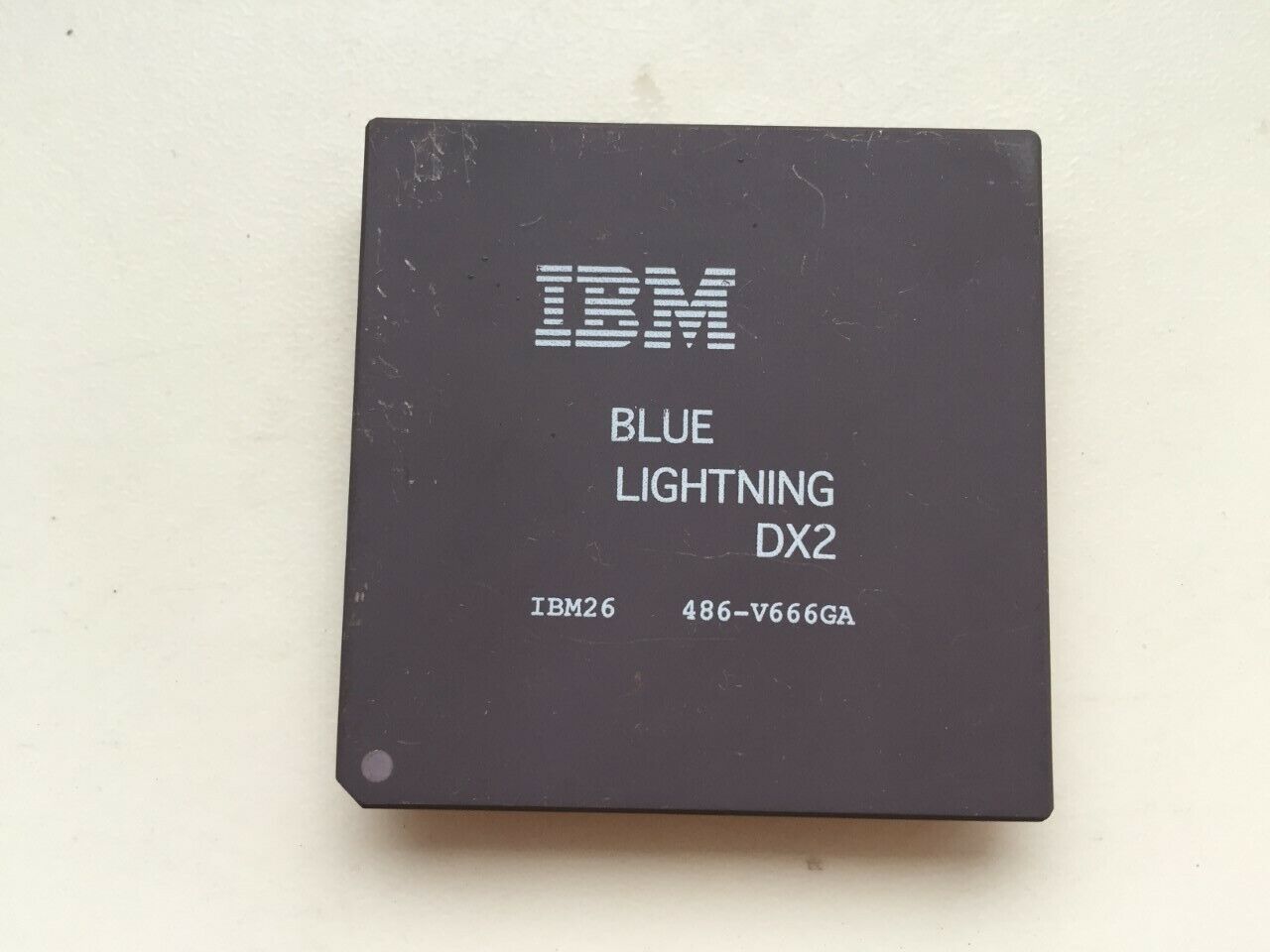

IBM 486DX2-66GA/GB/GP "Blue Lightning" 486-2V266GA 486-2V266GB 486-2V366GB 486-V266GB 486-V366GB 486-V666GA	Rebranded Cyrix Cx486DX2-66GP/V66GP. Mine=486-V666GA . Bought in 2020 for £14.50. Typical prices mid-2021 not incl. P&P: £18
IBM 486DX4-75GC/QIC "Blue Lightning"	Rebranded Cyrix Cx486DX4-75GP. MISSING FROM COLLECTION
IBM 486DX2-80GA/GB/GP "Blue Lightning"	Rebranded Cyrix Cx486DX2-80/DX2-V80GP. MISSING FROM COLLECTION
IBM 486DX4-100GIC/QIC/GC "Blue Lightning"	Rebranded Cyrix Cx486DX4-100GP/GP4. MISSING FROM COLLECTION
IBM 5x86C-75GP 3V375HF	25 MHz FSB, 3x multiplier. 16KB L1 cache. 3.3V. MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £25
IBM 5x86C-100	33 MHz FSB, 3x multiplier, 16 KB L1 cache. 3.3V. Part #5x86-3V3100HB Bought for £48 in 2014 as a bundle that included an M919 motherboard, several CPUs, MFM disk controller, video cards and CD-ROM drives. Typical prices mid-2020 not incl. P&P: £35.00 Typical prices late-2020 not incl. P&P: £30

TI 486SLC-25 (QFP) TX486SLC/E-25	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £11, £17
TI 486SLC-33 (QFP) TX486SLC/E-33	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £7, £11
TI 486SXL-40	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £18
TI 486SXLC2-40 (QFP)	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £30
TI 486SXLC2-G50 (QFP)	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £14, £26
TI 486DLC-33 TX486DLC-33	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £20
TI 486DLC-40 TX486DLC-40BGA TX486DLC/E-40GA	MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P:£14, £15, £20, £40, £45
TI 486DX2-66 / G66-GA / G66-WR	Rebranded Cyrix Cx486DX2-66GP/V66GP. 33 MHz FSB, 2x multiplier, 8KB L1 cache, 3.45V. MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £15.50
TI 486DX2-G80-GA	Rebranded Cyrix Cx486DX2-80/DX2-V80GP. 40 MHz FSB, 2x multiplier, 8KB L1 cache, 3.45V. MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £12.50, £12.93 Typical prices late-2020 not incl. P&P: £20, £31
TI 486DX4-100-ES / G100-WR / G100-GA / GT100-WR	Rebranded Cyrix Cx486DX4-100GP/GP4. 33 MHz FSB, 3x multiplier, 8KB L1 cache, 3.45V. MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £9.05 Typical prices late-2020 not incl. P&P: £15.50

ST 486DX-33	Rebranded Cyrix Cx486DX-33/DX-V33. MISSING FROM COLLECTION
ST 486DX-40	Rebranded Cyrix Cx486DX-40GP. MISSING FROM COLLECTION
ST 486DX2-40	MISSING FROM COLLECTION
ST 486DX-50	Rebranded Cyrix Cx486DX-50GP. 25 MHz FSB, 5V. MISSING FROM COLLECTION
ST 486DX2-50	Rebranded Cyrix Cx486DX2-50. 25 MHz FSB, 2x multiplier, 8KB L1 cache, 5V. MISSING FROM COLLECTION
ST486DX2-66GS/66H1	Rebranded Cyrix Cx486DX2-66GP/V66GP. 33 MHz FSB, 2x multiplier, 8KB L1 cache, 5V. Bought for £10.60 in 2017. Typical prices mid-2020 not incl. P&P: £10.00 Typical prices late-2020 not incl. P&P: £10.75 Typical prices mid-2021 not incl. P&P: £11, £14, £15
ST 486DX4-V75HS	Rebranded Cyrix Cx486DX4-75GP. 25 MHz FSB, 3x multiplier, 8KB L1 cache, 5V. MISSING FROM COLLECTION
ST 486DX2-80GS	Rebranded Cyrix Cx486DX2-80/DX2-V80GP. 40 MHz FSB, 2x multiplier, 8KB L1 cache, 5V. MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £9.45, £12.13 Typical prices late-2020 not incl. P&P: £10 Typical prices mid-2021 not incl. P&P: £42
ST 486DX4-100 (-V10HS)	Rebranded Cyrix Cx486DX4-100GP/GP4. 33 MHz FSB, 3x multiplier, 8KB L1 cache. MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £11.75, £30.74, £45.23 Typical prices late-2020 not incl. P&P: £12.75, £22 Typical prices mid-2021 not incl. P&P: £15
ST 486DX4-120 (-V12HS)	40 MHz FSB, 3x multiplier, 8KB L1 cache. MISSING FROM COLLECTION

UMC U5S Super 40 (486SX-40)	40 MHz FSB, 8KB L1 cache, 5V. The very first CPU I bought as a component for a self-build rather than buying a full PC. Not sure I can backup the claim here that it runs at 30-48% faster than an Intel 486 clock for clock, but a great chip nonetheless.

Socket 5 Processors

Intel Pentium (P5) 60 (March 1993) SX753 (A80501-60)	60 MHz core clock, 60 MHz FSB, 1x multiplier. 5V. 16KB L1 WB cache. MISSING FROM COLLECTION Typical prices early-2022 not incl. P&P: £15, £50
Intel Pentium (P5) 66 (March 1993) SX828 (A80501-66)	66 MHz core clock, 66 MHz FSB, 1x multiplier. 5V. 16KB L1 WB cache. MISSING FROM COLLECTION Typical prices early-2022 not incl. P&P: £85
Intel Pentium (P54C) 75 (October 1994) SX969 (A80502-75) SX994 (BP80502-75)	(x3) 75 MHz core clock, 50 MHz FSB, 1.5x multiplier, 3.3V. 16KB L1 WB cache. CPUID = 0525 Codename P54C. The first of these is part number A80502-75 SX969. The second of these is also the same part number, but has a sticker on that reads 'MC 16209'.
Intel Pentium (P54C) 90 (March 1994) SX968 (A80502-90) SZ995 (PCPU3V90)	90 MHz core clock, 60 MHz FSB, 1.5x multiplier. 3.3V. 16KB L1 WB cache. MISSING FROM COLLECTION
Intel Pentium (P54C) 100 (March 1994) SY007 (A80502100) SU032 (BP80502-100)	100 MHz core clock, 66 or 50 MHz FSB, 1.5x or 2x multiplier. 3.3V. 16KB L1 WB cache. MISSING FROM COLLECTION Typical prices early-2022 not incl. P&P: £42, £27

Socket 7 Processors

Intel Pentium (P54C) 120 (March 1995) SY033 (A80502120) SL22M (BP80502120)	(x3) 120 MHz clock, 60 MHz FSB, 2x multiplier. 3.3V The first of these is part number A80502-120 with sSpec of SX994 (CPUID=0525h, Stepping=C2, Core=3.4-3.6V). This CPU has reduced minimum valid timings on some output pins. The second of these is part number A80502120 with sSpec of SY062 (CPUID=052Ch or 252Ch, Stepping=12, Core=3.3V). This version got an improved FPU with debugging extensions, machine check exception, model-specific registers, page-size extensions (4MB pages), a time-stamp counter and virtual 8086-mode enhancements.
Intel Pentium (P54C) 133 (June 1995) SY022 (A80502120) SU073 (BP80502133)	MISSING FROM COLLECTION
Intel Pentium (P54C) 150 (January 1996) SY015 (A80502150)	3.3V. 150 MHz clock, 60 MHz FSB, 2.5x multiplier. MISSING FROM COLLECTION Typical prices early-2022 not incl. P&P: £15
Intel Pentium (P54C) 166 (January 1996) SY016 (A80502166)	3.3V. 166 MHz clock, 66 MHz FSB, 2.5x multiplier. 16KB L1 WB cache. MISSING FROM COLLECTION Typical prices early-2022 not incl. P&P: £9 Typical prices Nov 2022 not incl. P&P: £6.33
Intel Pentium (P54C) 200 (June 1996)	MISSING FROM COLLECTION Typical prices early-2022 not incl. P&P: £18
Intel Pentium (P55C) MMX 166 (January 1997) SL27H (FV80503166)	2.8V. 166 MHZ clock, 66 MHz FSB, 2.5x multiplier. 32KB L1 WB cache. Bought for £7.39 in 2018. Typical prices early-2022 not incl. P&P: £15, £16, £14, £22, £11, £9, £15 Typical prices Nov 2022 not incl. P&P: £8.51
Intel Pentium (P55C) MMX 200 SL27J (FV80503200) SL2RY (A80503200)	2.8V. 200 MHZ clock, 66 MHz FSB, 3x multiplier. 32KB L1 WB cache. Bought for £7.82 in 2018. Typical prices early-2022 not incl. P&P: £9, £12, £26, £15, £17 Typical prices Nov 2022 not incl. P&P: £8.17, £11.17, £10.59, £9.57, £14.47, £8.80, £15.56
Intel Pentium (P55C) MMX 233 SL27S (FV80503233)	2.8V. 233 MHZ clock, 66 MHz FSB, 3.5x multiplier. 32KB L1 WB cache. MISSING FROM COLLECTION Typical prices early-2022 not incl. P&P: £28 Typical prices Nov 2022 not incl. P&P: £12, £25.95, £25.87, £16.80, £17.72, £23.94, £24.99, £21.27
Intel Pentium (P55C) MMX 266 SL2Z4 (FV80503266)	266 MHZ clock MISSING FROM COLLECTION Typical prices Nov 2022 not incl. P&P: £48.76, £42.55

Earlier Cyrix MII chips ran with a core voltage of 2.9V. At some point they shrunk the die, allowing the later MII chips to run at a cooler 2.2V. The MII-266GP even ran at 2.0V.

Cyrix Cx6x86 P133+GP	100 MHz clock MISSING FROM COLLECTION Typical prices mid-2021 not incl. P&P: £18
Cyrix Cx6x86 P150+GP (May 1996)	120 MHz clock, 60 MHz FSB with a 2x multiplier, 3.3V MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £19.00 Typical prices late-2020 not incl. P&P: £7.50, £14 Typical prices mid-2021 not incl. P&P: £8.50 Typical prices early-2023 not incl. P&P: £15, £20
Cyrix Cx6x86 166GP+	133 MHz clock, 66 MHz FSB with a 2x multiplier, 3.3V MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £16.10 Typical prices late-2020 not incl. P&P: £10, £12 Typical prices early-2023 not incl. P&P: £19, £28, £19
Cyrix 6x86MX PR200 (May 1997)	150 MHz clock, 66 MHz bus with a 2.5x multiplier or 75 MHz bus with a 2x multiplier, 2.9V MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13.50 Typical prices mid-2021 not incl. P&P: £3, £12, £32
Cyrix 6x86MX PR233	188 MHz clock MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £30, £9 Typical prices mid-2021 not incl. P&P: £12, £15
Cyrix MII-200GP	189 or 200 MHz clock, 75 MHz with 2.5x multiplier or 66 MHz FSB with 3x multiplier, 2.9V MISSING FROM COLLECTION Pretty rare (was this ever officially released?)
Cyrix MII-233GP	189 or 200 MHz clock, 75 MHz with 2.5x multiplier or 66 MHz FSB with 3x multiplier, 2.9V MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £12.95 Typical prices mid-2021 not incl. P&P: £10, £12
Cyrix MII-266GP	200 MHz clock, 66 MHz with 3x multiplier, 2.0V MISSING FROM COLLECTION
Cyrix MII-300GP (April 1998)	230 or 225 MHz clock, 66 MHz FSB with 3.5x multiplier or 75 MHz FSB with 3x multiplier. 2.9V or 2.2V (check marking on top of chip) MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £12.95 Typical prices mid-2021 not incl. P&P: £10, £12 Typical prices Nov 2022 not incl. P&P: £13.30, £15.79, £14.99, £37.23 Typical prices early-2023 not incl. P&P: £24, £12, £17, £25, £20, £12, £20
Cyrix Cx6x86 333GP	263 MHz clock, 75 MHz FSB with 3.5x multiplier. 2.9V MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £14.99
Cyrix MII-333GP (June 1998)	263 MHz clock, 75 MHz FSB with 3.5x multiplier. 2.9V MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £14.99, £12.95, £27, £8 Typical prices mid-2021 not incl. P&P: £16, £24 Typical prices Nov 2022 not incl. P&P: £23.35, £13.05, £22, £14.99, £32.98 Typical prices early-2023 not incl. P&P: £6 (Parts only), £24
Cyrix MII-350GP	270 MHz clock, 90 MHz FSB with 4x multiplier. 2.9V MISSING FROM COLLECTION
Cyrix Cx6x86 366GP	250 MHz clock, 100 MHz FSB with 2.5x multiplier. 3.5V MISSING FROM COLLECTION
Cyrix MII-366GP	250 MHz clock, 100 MHz FSB with 2.5x multiplier. 2.9V Typical prices mid-2021 not incl. P&P: £18 Typical prices early-2023 not incl. P&P: £21, £14, £22
Cyrix MII-400GP	285 MHz clock, 95 MHz FSB with 3x multiplier. 2.2V MISSING FROM COLLECTION Typical prices Nov 2022 not incl. P&P: £101.06
Cyrix MII-433GP	300 MHz clock, 100 MHz FSB with 3x multiplier. 2.2V MISSING FROM COLLECTION Typical prices Nov 2022 not incl. P&P: £69.15

IBM 6x86 P150+	120 MHz core clock, 60 MHz FSB, 2x multiplier. 3.3V. Model Number: IBM26 6x86L-2V2P150GE MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £15 Typical prices Nov 2022 not incl. P&P: £21.22 Typical prices early-2023 not incl. P&P: £20
IBM 6x86L PR150+	120 MHz core clock, 60 MHz FSB, 2x multiplier. 2.8V. Model Number: IBM26 6x86L-2VAP150GB MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £12.95
IBM 6x86 P166+	133 MHz core clock, 66 MHz FSB, 2x multiplier. 3.3V. Model Number: IBM26 6X86-2V2P166GE MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £12.95 Typical prices Nov 2022 not incl. P&P: £26.60, £21.22
IBM 6x86L PR166+	133 MHz core clock, 66 MHz FSB, 2x multiplier. 2.8V. Model Number: IBM26 6X86L-2VAP166GB MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £25 Typical prices Nov 2022 not incl. P&P: £10.19 (bent pins), £26.60 Typical prices early-2023 not incl. P&P: £19
IBM 6x86L PR200+	150 MHz core clock, 75 MHz FSB, 2x multiplier. 2.8V. Model Number: IBM26 6x86L-2VAP200GB Bought for £12.92 in 2013. Typical prices late-2020 not incl. P&P: £18 Typical prices Nov 2022 not incl. P&P: £33.99 Typical prices early-2023 not incl. P&P: £15
IBM 6x86MX PR166 (May 1997)	166 MHz core clock but rated at 200 MHz. 2.9V. 64 KB L1 WB cache. Model number IBM26x86MX-AVAPR166GA = 66 MHz FSB with 2.0x mult. MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13 Typical prices Nov 2022 not incl. P&P: £33.92
IBM 6x86MX PR200 AV BV (May 1997)	166 MHz core clock but rated at 200 MHz. 2.9V. 64 KB L1 WB cache. Model numbers: IBM26x86MX-AVAPR200GB = 75 MHZ FSB with 2.0x multiplier. IBM26x86MX-BVAPR200GC = 66 MHz FSB with 2.5x multiplier. MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13, £10, £11, £18 Typical prices Nov 2022 not incl. P&P: £33.99, £21.22
IBM 6x86MX PR233 BV CV (May 1997)	188 MHz core clock but rated at 233 MHz. 2.9V. 64 KB L1 WB cache. Model numbers: IBM26x86MX-BVAPR233GC = 75 MHz FSB with 2.5x multiplier. IBM26x86MX-CVAPR233GF = 66 MHz FSB with 3x multiplier. MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13, £12 Typical prices Nov 2022 not incl. P&P: £23.59 Typical prices early-2023 not incl. P&P: £31, £29, £20
IBM 6x86MX PR266 BV (May 1997)	200(?) MHz core clock but rated at 266 MHz. 2.9V. 64 KB L1 WB cache. Model numbers: IBM26x86MX-BVAPR266GE = 83 MHz FSB with 2.5x multiplier. MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13, £12
IBM 6x86MX PR300 CV DV (May 1997)	233 MHz core clock but rated at 300 MHz. 2.9V. 64 KB L1 WB cache. Model numbers: IBM26x86MX-CVAPR300GF = 75 MHz FSB with 3.0x multiplier. IBM26x86MX-CVAPR300HF = 75 MHz FSB with 3.0x multiplier. IBM26x86MX-DVAPR300HF = 66 MHz FSB with 3.5x multiplier MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13 Typical prices Nov 2022 not incl. P&P: £21.58
IBM 6x86MX PR333 CV DV (May 1997)	250 MHz core clock but rated at 333 MHz. 2.9V. 64 KB L1 WB cache. Model numbers: IBM26x86MX-CVAPR333HF = 83 MHz FSB with 3x multiplier. IBM26x86MX-DVAPR333HF = 75 MHz FSB with 3.5x multiplier. MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13 Typical prices Nov 2022 not incl. P&P: £22.16

ST 6x86 P150+	MISSING FROM COLLECTION Typical prices late-2020 not incl. P&P: £13

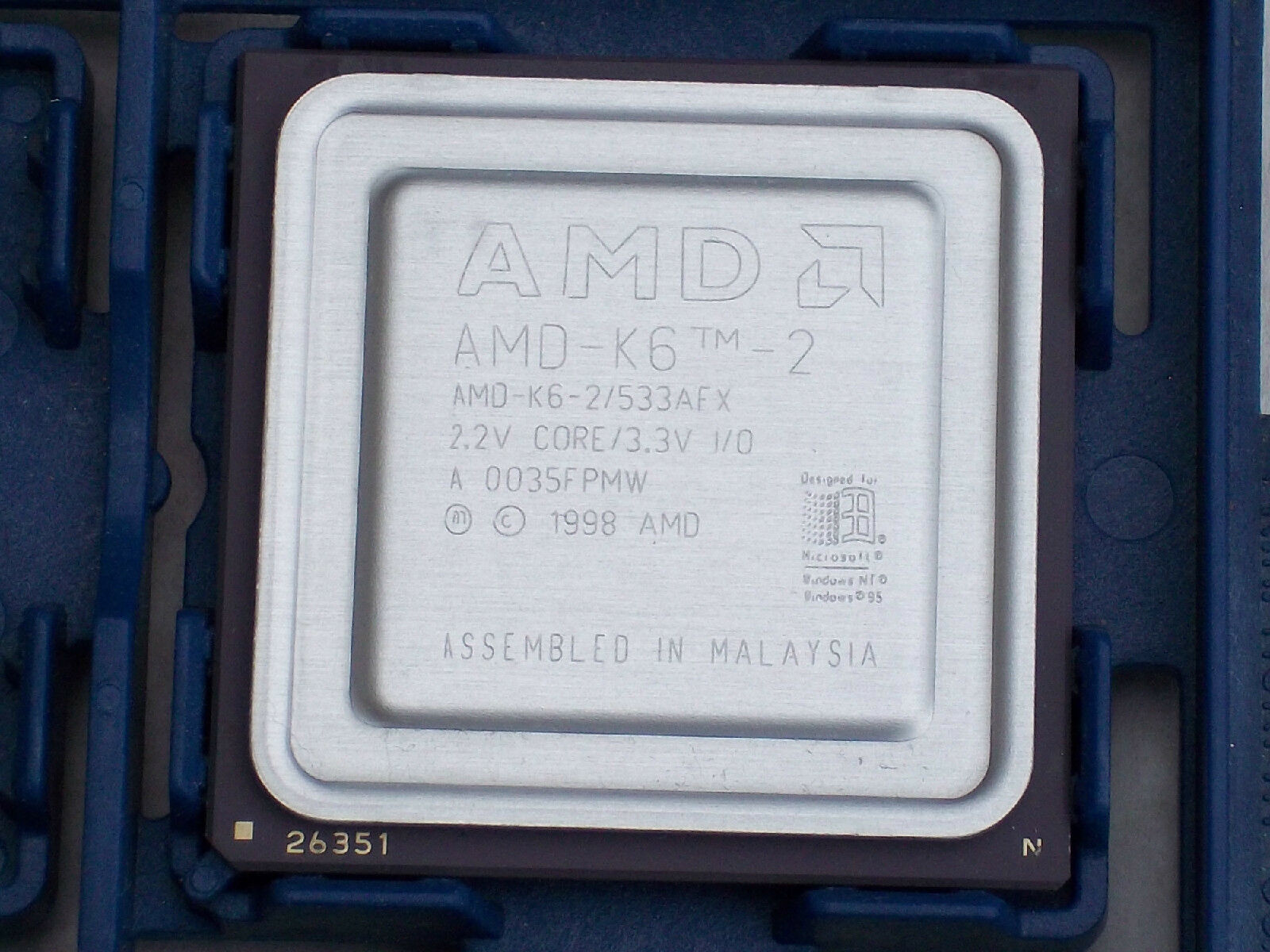

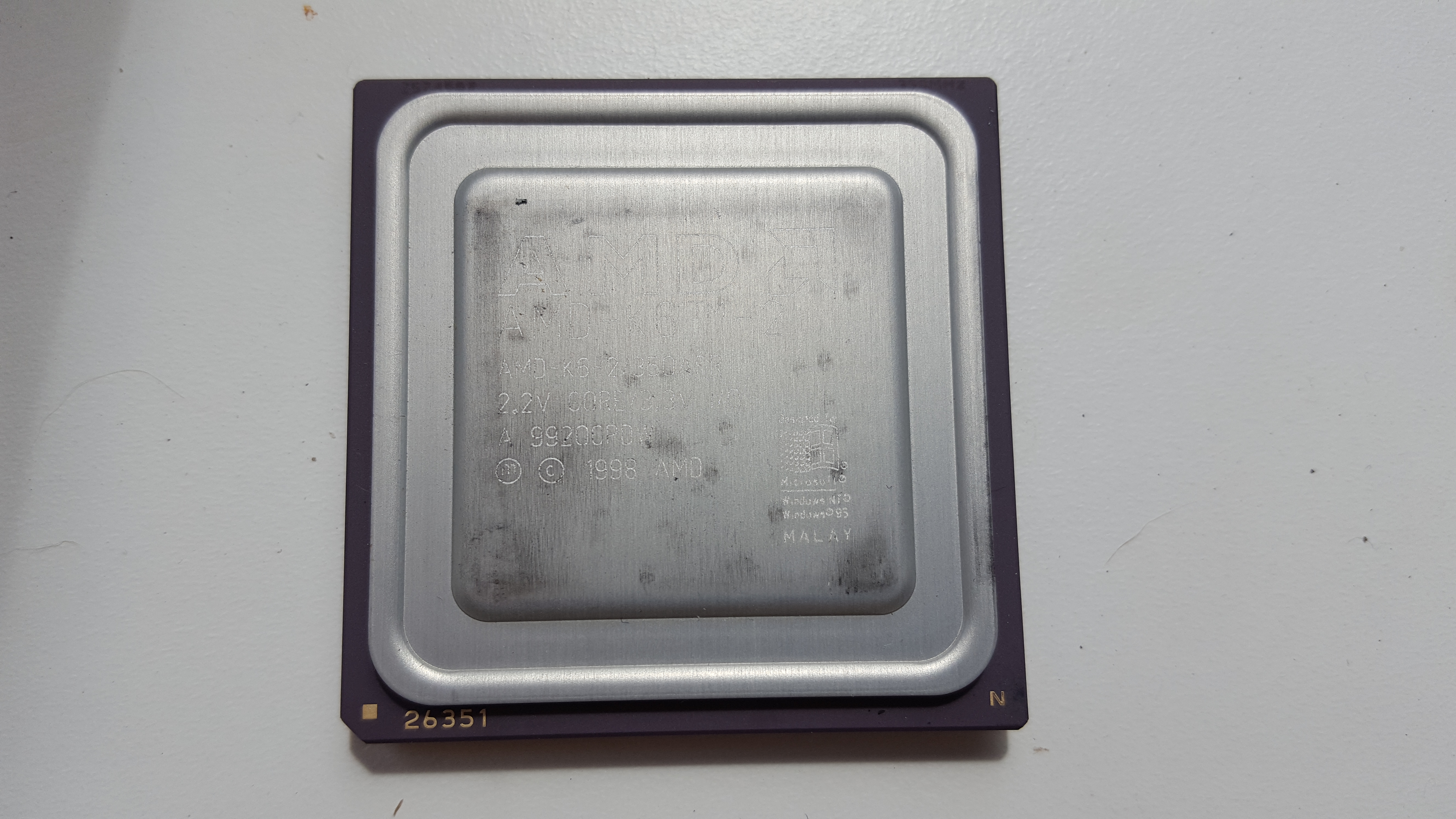

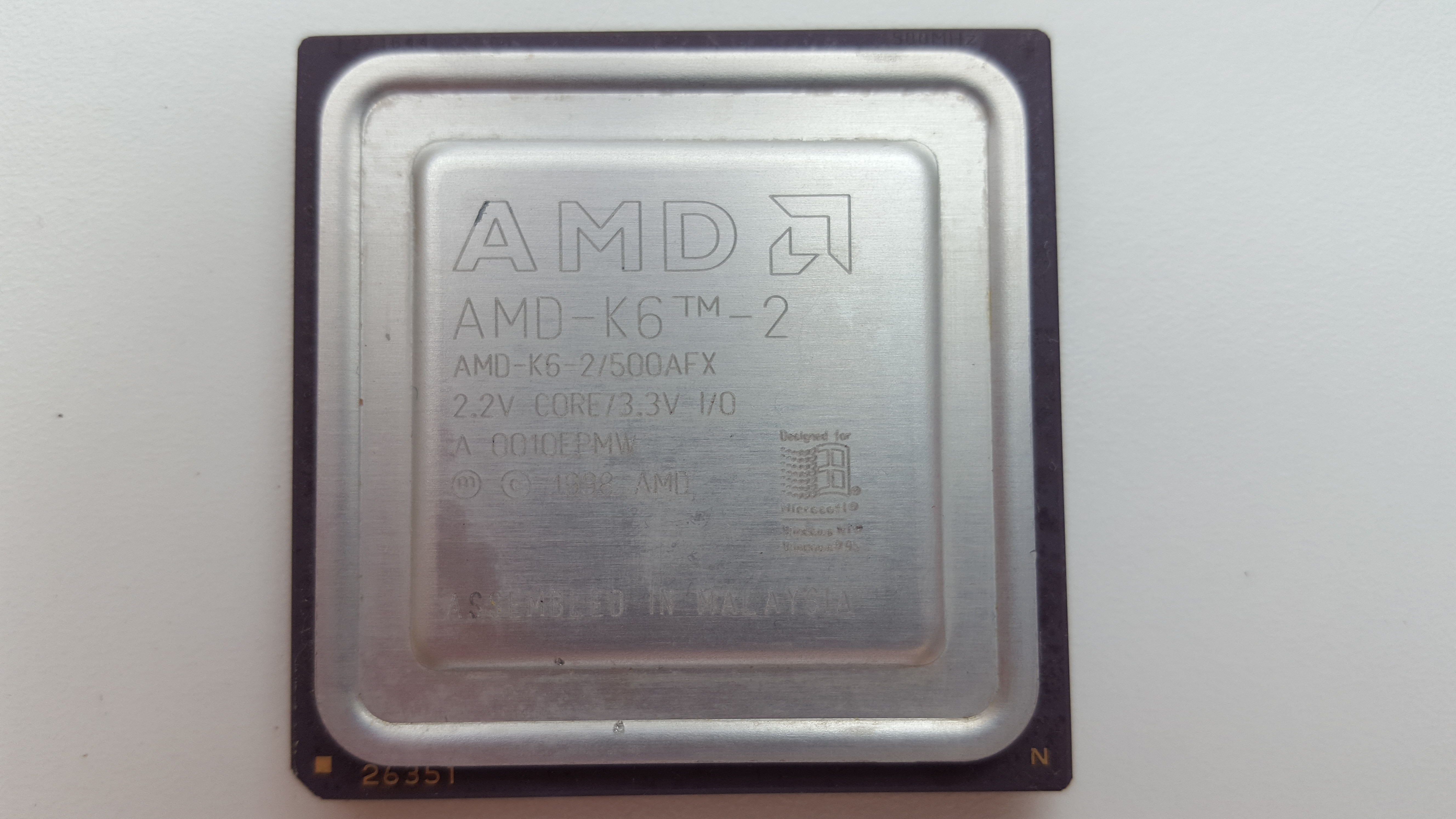

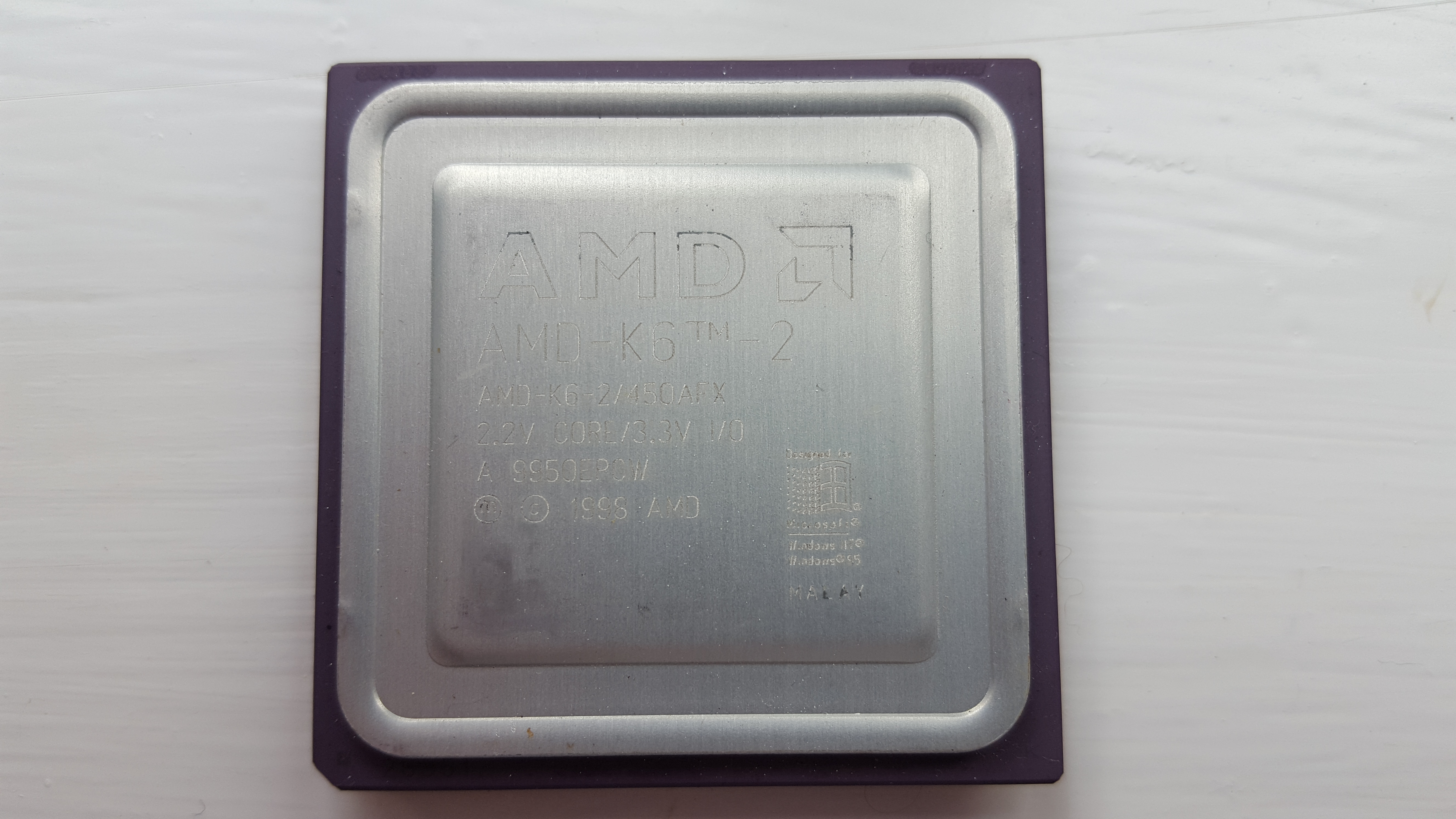

AMD K6 and K6-2 codes:

"A"=321-pin Ceramic PGA, "B"=360-ball Ceramic BGA package.
"C"=2.0V core, "D"=2.1V core, "F"=2.2V core, "L"=2.9V core, "N"=3.2V core, "P"=3.3V core
"R"=70 deg.C max. operating temp, "Z"=85 deg.C max. operating temp.

AMD K6-166 ALR ALYD	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £9.62, £26.00, £5.00, £8.82
AMD K6-200 AFR ALR ALYD	66 MHz FSB, 3x multiplier. 64KB L1 cache. Mine has a date code of week 36, 1997. Bought for £13.04 in 2019. Typical prices mid-2020 not incl. P&P: £8.99
AMD K6-233 AFR ANR APR	66 MHz FSB, 3.5x multiplier. 64KB L1 cache. Mine has a date code of week 4, 1998. Bought for £4.49 in 2018. Typical prices mid-2020 not incl. P&P: £12.99, £12.00
AMD K6-266 AFR	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £6.99
AMD K6-300 AFR	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: Typical prices Nov 2022 not incl. P&P:£0.99
AMD K6-2 333	66 MHz FSB, 5x multiplier. 64KB L1 cache. MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £6.99
AMD K6-2 350 AFR	(x2) 100 MHz FSB, 3.5x multiplier. 64KB L1 cache. 2.2V 1st CPU came bundled with an M590 motherboard I bought in 2014 for £6.99. 2nd CPU was bought for £4.94 in 2020.
AMD K6-2 400 AFR	66 or 100 MHz FSB, 6x or 4x multiplier. 64KB L1 cache. 2.2V Typical prices mid-2020 not incl. P&P: £8.99, £6.95
AMD K6-2 450 AFX	100 MHz FSB, 4.5x multiplier. 64KB L1 cache. 2.2V Bought for £4.20 in 2014. Typical prices mid-2020 not incl. P&P: £16.00, £19.37 Typical prices Nov 2022 not incl. P&P: £5.99, £14.99
AMD K6-2 475 ACK	95 MHz FSB, 5x multiplier. 64KB L1 cache. 2.0V Came on a Gigabyte GA-5AX mobo bought for £109 in Sep 2020.
AMD K6-2 500 AFX	(x2) 100 MHz FSB, 5x multiplier. 64KB L1 cache. 2.2V Bought for £13.44 in 2017. Bought for £11.46 in 2018. Typical prices mid-2020 not incl. P&P: £11.99, £8.82, £10.99, £12.00 Typical prices Nov 2022 not incl. P&P: £14.50
AMD K6-2 533 AFX	97 MHz FSB, 5.5x multiplier. 64KB L1 cache. 2.2V. These apparently run just fine at 100 MHz FSB and 5.5x multiplier, so good for 550 MHz. Bought for £14.25 in 2020. Typical prices mid-2020 not incl. P&P: £14.99
AMD K6-2 550 AGR	MISSING FROM COLLECTION 100 MHz FSB, 5.5x multiplier. 64KB L1 cache. 2.3V Typical prices mid-2020 not incl. P&P: £14.99
AMD K6-2+ 450 ACZ	MISSING FROM COLLECTION Typical prices Nov 2022 not incl. P&P: £34
AMD K6-2+ 550 AGR	MISSING FROM COLLECTION 100 MHz FSB, 5.5x multiplier. Typical prices mid-2020 not incl. P&P: ?
AMD K6-III 450 AHX	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £39.00, £57.89, £24.26 Typical prices Nov 2022 not incl. P&P: £53.14
AMD K6-III+ 400 ATZ	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £113.07, £108.54 Typical prices Nov 2022 not incl. P&P: £59.99
AMD K6-III+ 400 ACR	MISSING FROM COLLECTION Typical prices Nov 2022 not incl. P&P: £45
AMD K6-III+ 450 ACZ	MISSING FROM COLLECTION Typical prices mid-2020 not incl. P&P: £42.86 Typical prices Nov 2022 not incl. P&P: £65.99
AMD K6-III+ 550 ACR	MISSING FROM COLLECTION Typical prices Nov 2022 not incl. P&P: £121

Math Coprocessors / Floating Point Units

Intel 80287-10	Typical prices Nov 2022 not incl. P&P: £12.28, £31.58 (gold top), £18.73, £22.87 (gold top)
Intel 80387SX-33	Given free of charge after ordering a Harris/Intersil 80286-25 and was sent this instead by mistake. Still unopened in its production line case.
IIT 3C87-25	Typical prices Nov 2022 not incl. P&P: £31.58
Cyrix FasMath CX-83D87-33-GP	Typical prices Nov 2022 not incl. P&P: £9.74, £8.42

Ancillary Chips

D8237AC	DMA Controller chip found on the original IBM PC and XT motherboards. Bought in Nov 2020 for £2.68 for 5 chips. Typical prices Nov 2022 not incl. P&P: £2.17, five for £6.29, £4.41,
D8253C-2	Programmable Interval Timer IC used on many PC and XT motherboards. Bought in Nov 2020 for £2.53. Typical prices Nov 2022 not incl. P&P: £10.53, £5.43, five for £9.14, £6.84
D8255AC	Programmable Peripheral Interface found on the original IBM PC motherboard and many XT clones. Bought in Nov 2020 for £3.34 for 5 chips. Typical prices Nov 2022 not incl. P&P: £2.40, £5.27, ten for £10.53, ten for £16.16, two for £8, £5.54, £2.23, £13.16
P8259A	Interrupt Controller chip. Bought in Nov 2020 for £5.00. Typical prices Nov 2022 not incl. P&P: £3.35, £3.03, £6.61
P8254A	MISSING FROM COLLECTION Clock Generator and Driver for 8088/8086 Typical prices Nov 2022 not incl. P&P: £2.50
