MacMail for Windows

Summary: MacMail, an utility to decode and identify Macintosh files received as attachments to e-mails. MacMail identifies correctly most current file formats. MacMail also offers some basic conversion features.


Introduction

With the explosion of the Internet, data files are often sent between Macintosh and PC computers as attachments to email messages. In such a case, the problem for the PC users receiving a file is that the very nature of the file is hard to know, in particular when the sender, on the Macintosh, didn't bother to add an extension to the file name (.DOC for a Word file, etc.).
More, the default encoding scheme used by many mail programs on the Macintosh is often BinHex, MacBinary or AppleSingle / AppleDouble (see our page on those standards for more information; see also our page on the e-mail standards for more information) and is not always correctly handled by e-mail client software packages on the PC.

Presentation of the Program

MacMail offers some help and relief in such situations.

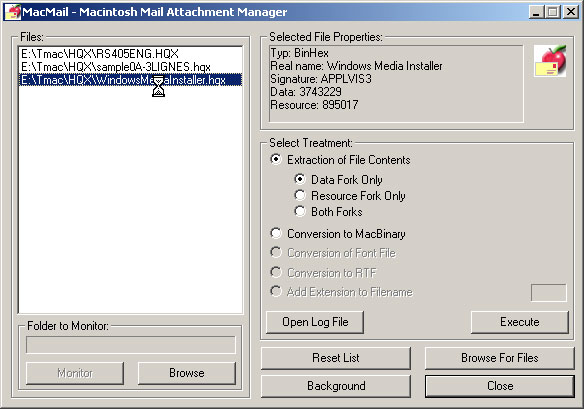

Here is a snapshot of the program:

screen

MacMail Offers Two Working Modes:
In Manual Mode, the user selects (button “Browse for Files”) the files to be examined, which are then listed in the listbox. Depending on the nature of the file, the program proposes several treatments (see below).
In Automatic Mode, the program monitors a folder of the computer (generally the folder where the mail program stores the e-mail attachments) and automatically lists in the left listbox all newly created files. The user is informed of the arrival of those files and can decide which treatment must be applied.

Manual Mode

In the Manual Mode, the users selects the files to be examined (button “Browse for Files”) on the hard disk(s) of the computer. It is possible to select several files. The files are then listed in the left part. If you highlight a file in this list, the program displays its properties in the upper right box. In the example above, the file is named “Ah le beau nom long.hqx” on the PC, but its real Macintosh name is just "test", its signature is "APPLFP98", which means that this is a program (APPL), the data fork is 312,573 bytes, the resource fork 10,960 bytes.
In the box below (titled "Select the treatment"), the user may select several treatments:
- Extraction of the File Content (Data fork, Resource fork, or both of them)
- Conversion to MacBinary
- Addition of an extension to the file name.

Extraction of the File Contents

This option is available for BinHex, AppleSingle and AppleDouble files. Macintosh files are made of two forks. You may select to extract the data fork, the resource fork, or both of them. The first option (data fork, default option) is what is needed most of the time, for an example with text files, graphic files, and so on. The two other options will only interest techies.

Conversion to MacBinary

This option can be useful if you want to reinstall the file onto a Macintosh disk thereafter. The MacBinary standard allows to put in a single file (so-called container) both forks composing the original Macintosh file, plus some additional information.

Addition of an Extension to the Filename

When the files aren't containers, but plain data files, the main problem for the PC user receiving the attachments is often that it may be difficult to ascertain the very nature of the file, because Macintosh users generally don't put extensions (suffixes) at the end of filenames. If MacMail can find out the origin of the file, it will display it in the 'Properties' box and allow the user to add the extension.
If you discover common data files that MacMail can't identify, please send us a sample file, and we'll add the treatment of this format to the program. Thanks in advance!

Macintosh Attachments with a DAT extension

If you received an attachment to an email sent by a Macintosh user, odds are good that it will have a DAT extension. Don't spoil time looking for a program which will be able to edit and print this DAT file.
Most of the time, this means that the file was put in a so-called container, generally AppleSingle or AppleDouble. Drop it to MacMail window to know what it really is. MacMail will propose some sensible treatments.

Basic Conversion Features

MacMail version 2.5 also features some basic conversion features (MacWrite, MS-Works for the Macintosh, Claris/Apple Works) which could help you to better manage attached files.

Font Conversion Features

MacMail also incorporates some of our Font Conversion code. The integration of those modules is still rather raw, but could help you in some circumstances. Feedback welcome!!

Automatic Working Mode

In this working mode, MacMail monitors a specific folder on your computer. You would select for instance the folder where your e-mail client stores the e-mail attachments (files sent attached to an e-mail). With Eudora, it would be the 'attach' folder. The monitored folder is displayed in the lower left corner. You can browse the hard disks to select a new folder. The selected folder is saved in the Registry between sessions.
Launch the monitoring by clicking the “Monitor” button. You can minimize the program by clicking the “Background” button.
As soon as the computer receives such an attachment, MacMail is waked up by the operating system and puts the file name in the list (on the left).
The user is informed by a flashing of the window (if the program is maximized) or of the button in the taskbar (if the program is minimized).
See above for more details on the possible treatments to apply to those files.

Availability of MacMail

MacMail is included in the MacDisk package. You can also download it alone.
