IBM 5151  -  Video Cable


Some people have found IBM 5151s with the 9-pin D connector missing from the end of the video cable, or the cable cut at the point where it exits the 5151 case.

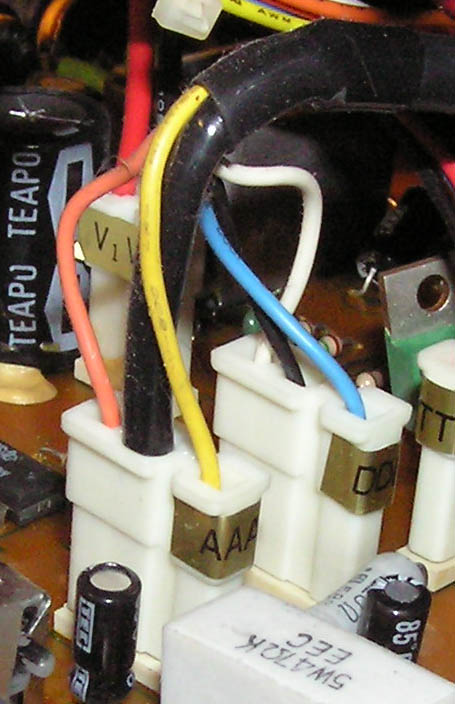

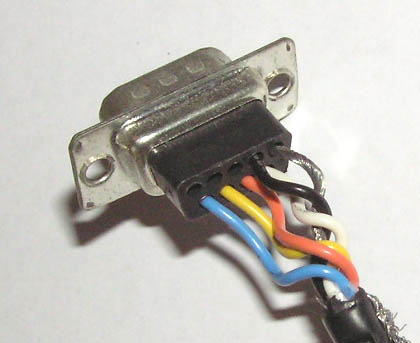

The following photos are provided to assist such people reconstruct the cable.

It is known that IBM varied the wire colours used within the cable.
