IBM 5170  -  Failures of the CMI 6426 Hard Drive


The first hard drive supplied by IBM in the IBM 5170 was CMI's model 6426-S (sometimes referred to as the CM-6426 or CM6426).
The very high failure rate of those drives led to IBM moving to the Seagate ST-4026.

Below are some magazine articles relating to the failures.

The specifications of the drive are shown on page 2 of the CMI document here.

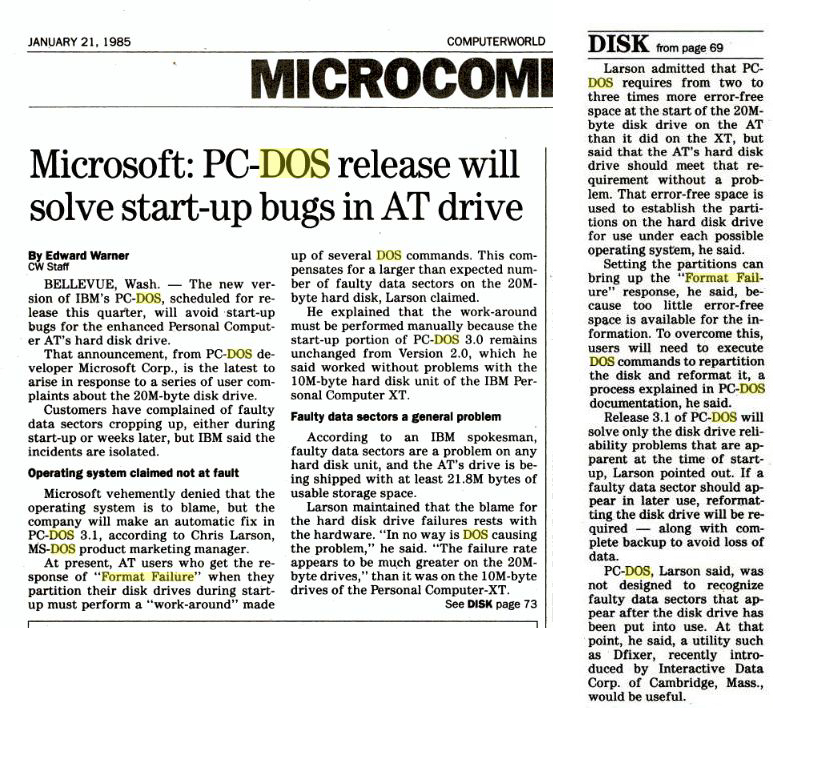

Date:   January 1985
Magazine:   Computerworld Magazine of Jan 21, 1985
Article:   Microsoft: PC-DOS release will solve start-up bugs in AT drive

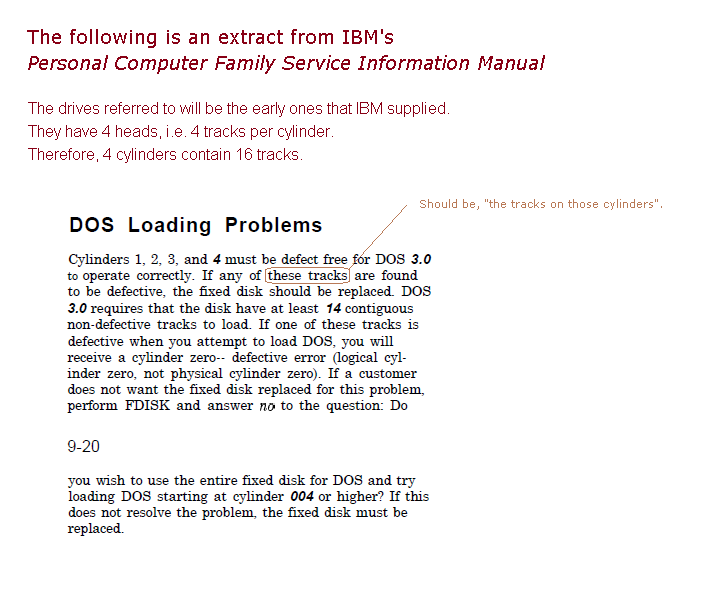

Comment:   DOS 3.1 released.  Better copes with bad tracks at start of drive.  See here for the limitation (not a bug) in 3.0

Date:   March 1985
Magazine:   InfoWorld Magazine of Mar 11, 1985
Article:   PC AT Problems Cause Concern for Owners
Comment:

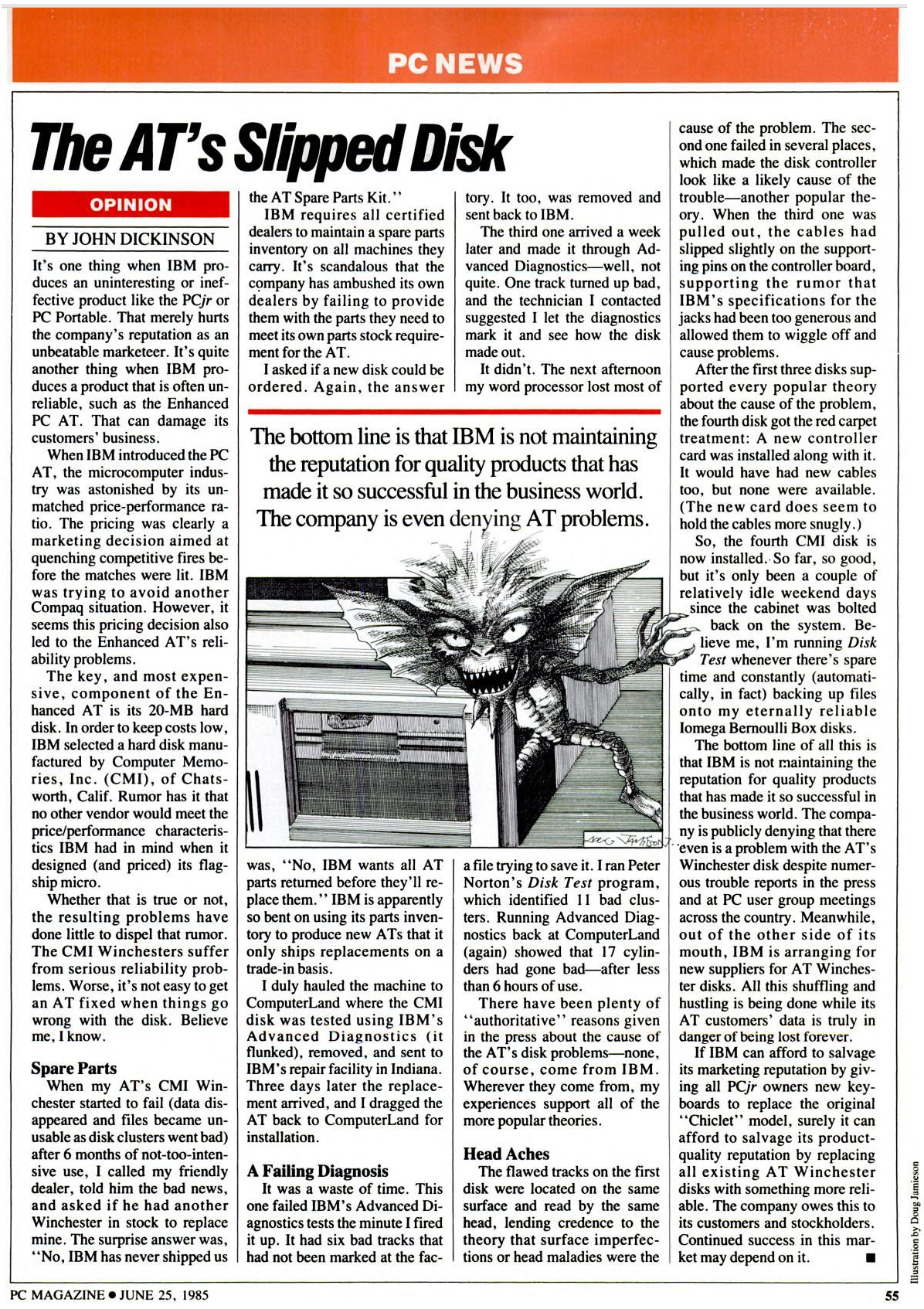

Date:   June 1985
Magazine:   PC Magazine of June 25, 1985
Article:   The AT's Slipped Disk
Comment:

Date:   July 1985
Magazine:   InfoWorld Magazine of Jul 22, 1985
Article:   Reliability is Hard Disk Key
Comment:   The 6426 is one of the drives compared and negatively commented on.

Date:   October 1985
Magazine:   InfoWorld Magazine of Oct 7, 1985
Article:   AT Gets 30-Megabyte Hard Drive
Comment:   Release of the IBM AT model 239, a model that has a 30 MB drive made by IBM.

Date:   April 1986
Magazine:   PC Magazine of April 29, 1986
Article:   From Sea to Shining Sea
Comment:   This is an excellent summary.

Date:   2016
Article:   Core's publicity stunt of 1985/1986

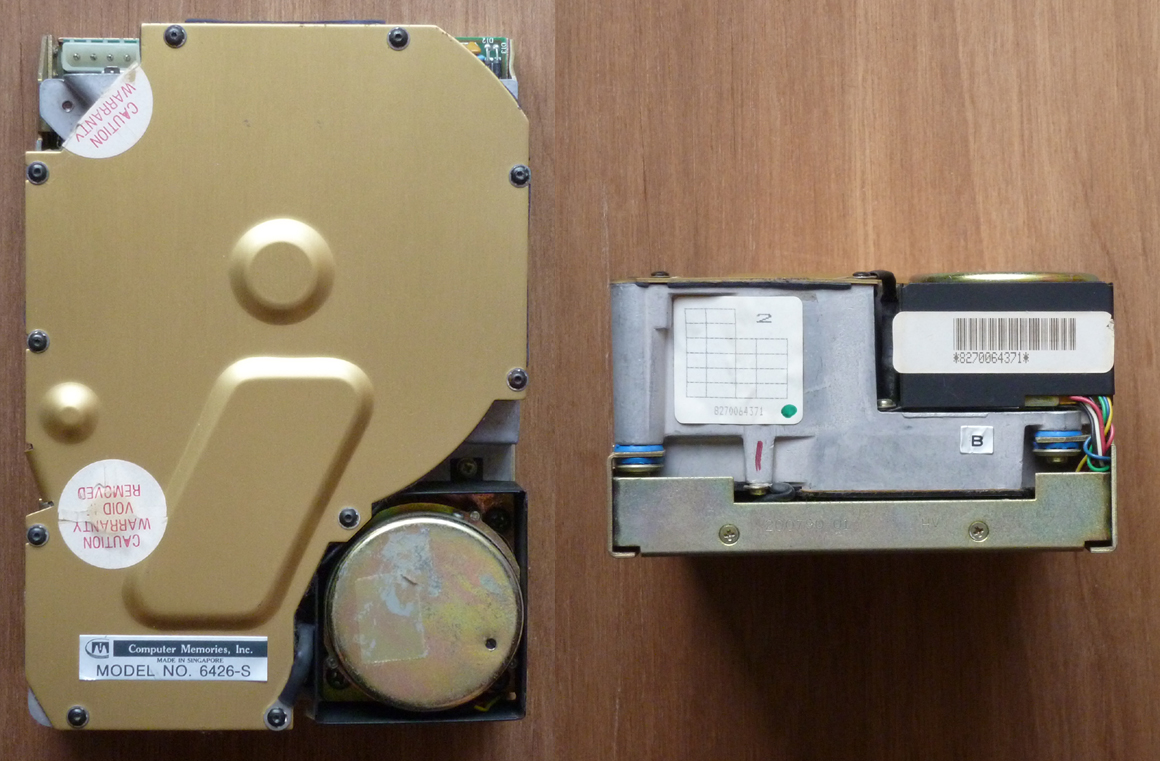

CMI 6426-S.jpg
