Modern XT-IDE and XT-CF variations

( 'XT-IDE' and 'XT-CF' being generic terms )

Ordered roughly by year.

Vintage Computer Forums XT-IDE Rev 1

../rev_1/XT-IDE%20Rev%201%20-%20photo.jpg

Circa 2009.

Click on photo for larger view.

Information at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

For 1.x.x versions of XUB (e.g. 1.1.5), set 'Bus type' in XUB per the photo at here.
For 2.x.x versions of XUB (e.g. 2.0.0 beta 3+) , set the 'Device type' to 'XTIDE rev 1'

Dangerous Prototypes XT-IDE v1

http://dangerousprototypes.com/docs/images/thumb/e/e4/Prototype-XTIDE-controller-CPLD.jpg/480px-Prototype-XTIDE-controller-CPLD.jpg

Circa 2010.

Click on photo for larger view.

Dangerous Prototypes' web page at here.

Superceded by the Dangerous Prototypes XT-IDE v2.

Dangerous Prototypes XT-IDE v2

http://dangerousprototypes.com/docs/images/7/72/Prototype-XTIDE-controller-CPLD-v2.jpg

Circa 2012.

Click on photo for larger view.

Dangerous Prototypes' web page at here.

Vintage Computer Forums XT-IDE Rev 2

../rev_2/XT-IDE%20Rev%202%20-%20CF-to-IDE%20adapter.jpg

Circa 2012.

Click on photo for larger view.

Information at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

See the relevant information at here.

Lo-tech XT-CF-lite rev.1

https://www.lo-tech.co.uk/w/images/8/86/Lo-tech-xt-cf-lite-assembled.JPG

Circa 2012

Click on photo for larger view.

Lo-tech's web page at here.

The circuit diagram indicates that this particular card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

Superceded by the Lo-tech XT-CF-lite rev.2.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

Based on "(adapter type: 'XT-CF')" at the web page,
set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF PIO8' ('BIU 8' being the shortened form of that)'

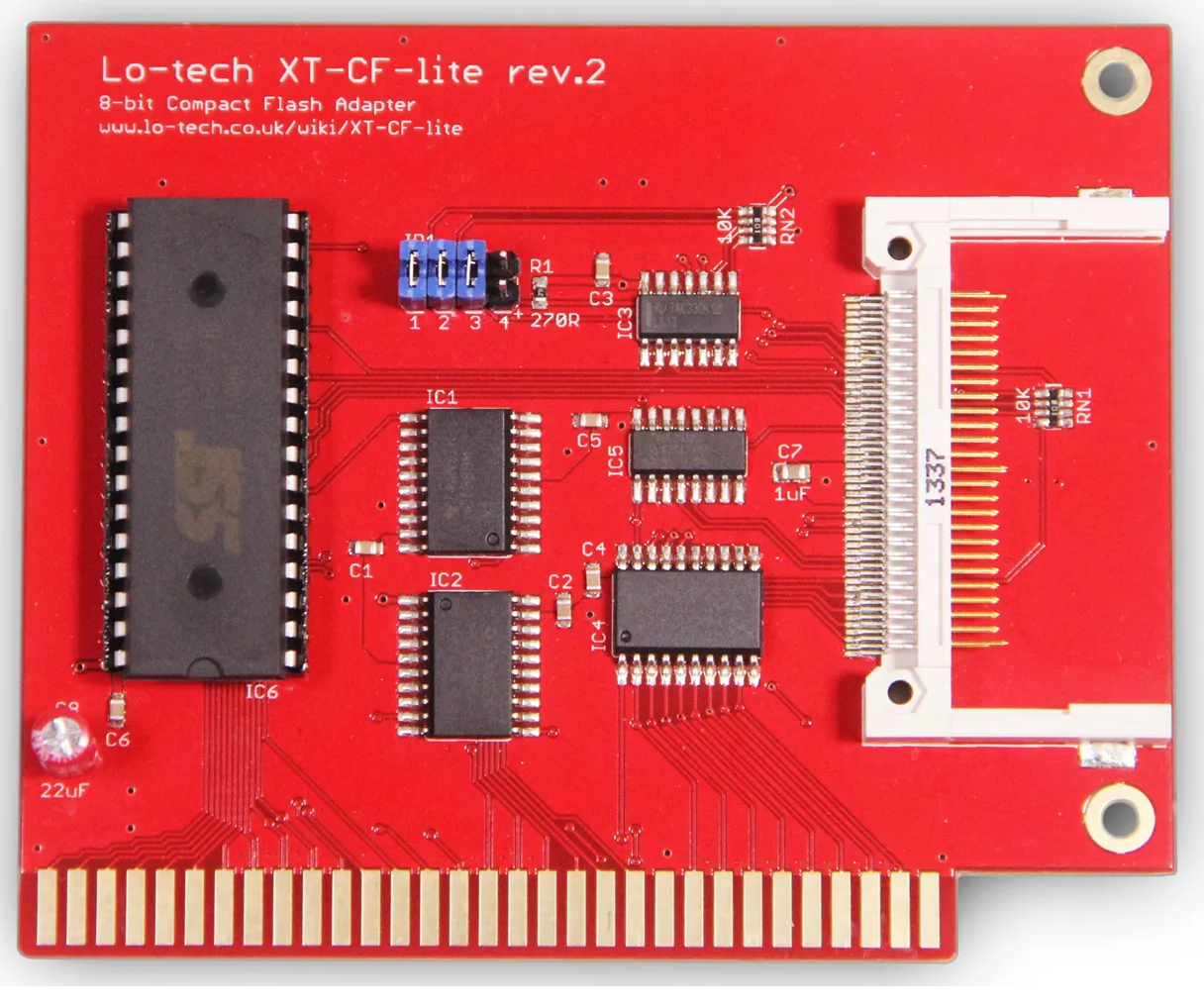

Lo-tech XT-CF-lite rev.2

Circa ????

Click on photo for larger view.

Lo-tech's web page at here.

The pictured one supplied by texELEC - see here.

The circuit diagram indicates that this particular card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

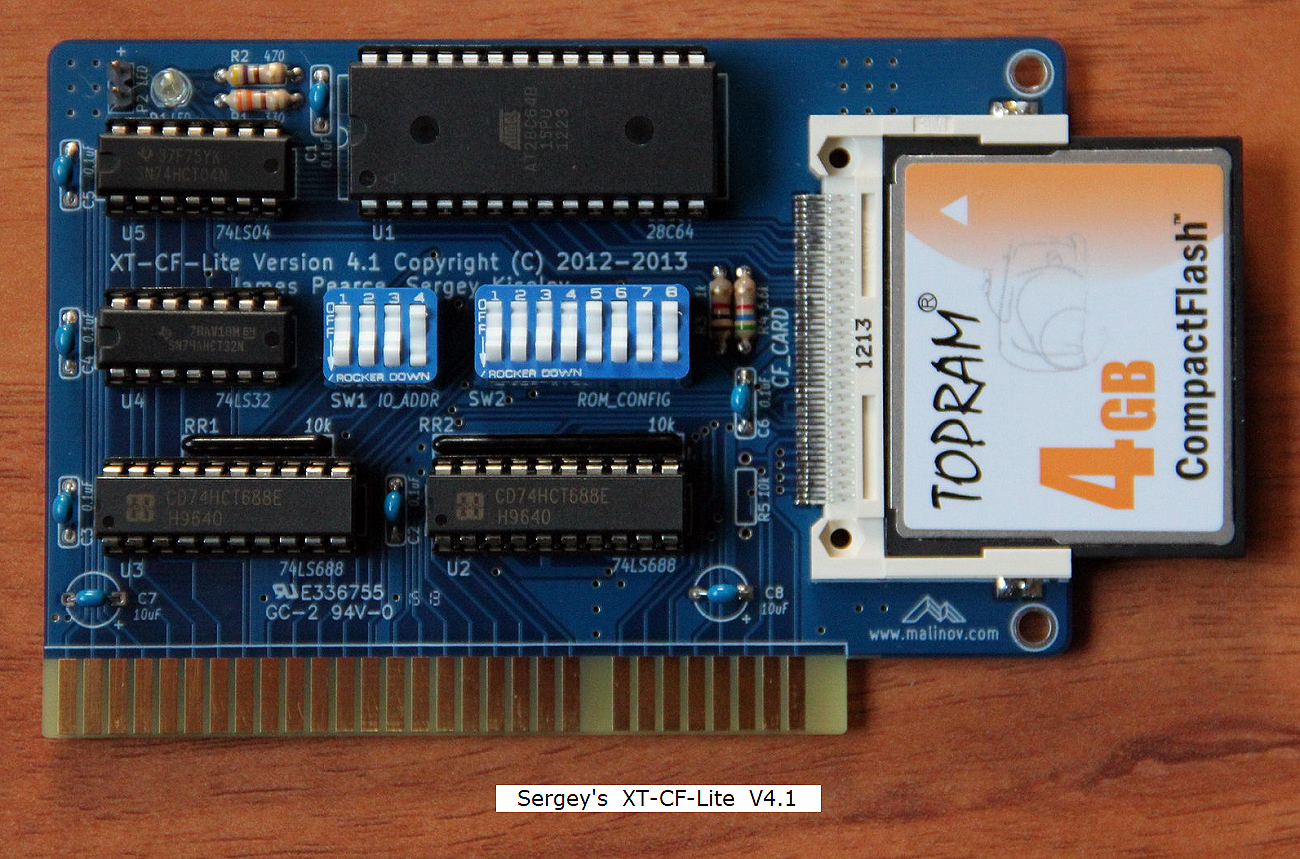

Sergey's XT-CF-Lite V4.1


Circa 2012

Click on photo for larger view.

The designer's web page is at here.
The noami (a kit supplier) web page is at here.

This particular card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

A preconfigured image file for the EPROM/EEPROM is at here.

Do not fit the missing R5 resistor.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

Set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF PIO8' ('BIU 8' being the shortened form of that)'

Lo-tech XT-CF (labelled "Peacon XT-CF")

https://www.lo-tech.co.uk/w/images/d/d5/Peacon-xt-cf-assembled.JPG

Circa 2012

Click on photo for larger view.

This card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

Lo-tech's web page at here.

Superceded by the XT-CFv2.

Lo-tech XT-CFv2 (labelled "Peacon XT-CF v2")

https://www.lo-tech.co.uk/w/images/a/aa/Lo-tech-xt-cfv2-prototype.JPG

Circa 2012

Click on photo for larger view.

This card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

This card supports DMA.

Lo-tech's web page at here.

Superceded by the XT-CFv3.

Lo-tech ISA CompactFlash Adapter

Circa 2013.

Click on photo for larger view.

Intended to be used with a CF card and a CF-to-IDE adapter. The power cable is for CF-to-IDE adapters like the one pictured at here.

The circuit diagram indicates that this particular card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

Lo-tech's web page at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

"programatically identical to the XT-CF-lite",
so set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF PIO8' ('BIU 8' being the shortened form of that)'

Lo-tech ISA CompactFlash Adapter revision 2

Circa 2014

Click on photo for larger view.

Intended to be used with a CF card and a CF-to-IDE adapter.

"Rev.2" appears on back of the card.

The circuit diagram indicates that this particular card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

Lo-tech's web page at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

"programatically identical to the XT-CF-lite",
so set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF PIO8' ('BIU 8' being the shortened form of that)'

Lo-tech ISA CompactFlash Adapter revision 2b

Circa 2015

Click on photo for larger view.

Intended to be used with a CF card and a CF-to-IDE adapter.

"Rev.2b" appears on back of the card.

The circuit diagram indicates that this particular card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

Lo-tech's web page at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

"programatically identical to the XT-CF-lite",
so set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF PIO8' ('BIU 8' being the shortened form of that)'

Lo-tech 8-bit IDE Adapter rev.1

https://www.lo-tech.co.uk/w/images/thumb/5/59/Lo-tech-8-bit-ide-adapter-assembled.jpg/786px-Lo-tech-8-bit-ide-adapter-assembled.jpg

Circa 2014.

Lo-tech's web page at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

Per the web page,
set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF (PIO with BIU Offload)' ('XT-CF BIU' being the shortened form of that)'

Lo-tech 8-bit IDE Adapter rev.3

Click on photo for larger view.

"Rev.3" appears on back of the card.

Lo-tech's web page at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

Per the web page,
set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF (PIO with BIU Offload)' ('XT-CF BIU' being the shortened form of that)'

Lo-tech XT-CFv3

Circa 2015

Click on photo for larger view.

This card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

This card supports DMA.

Lo-tech's web page at here.

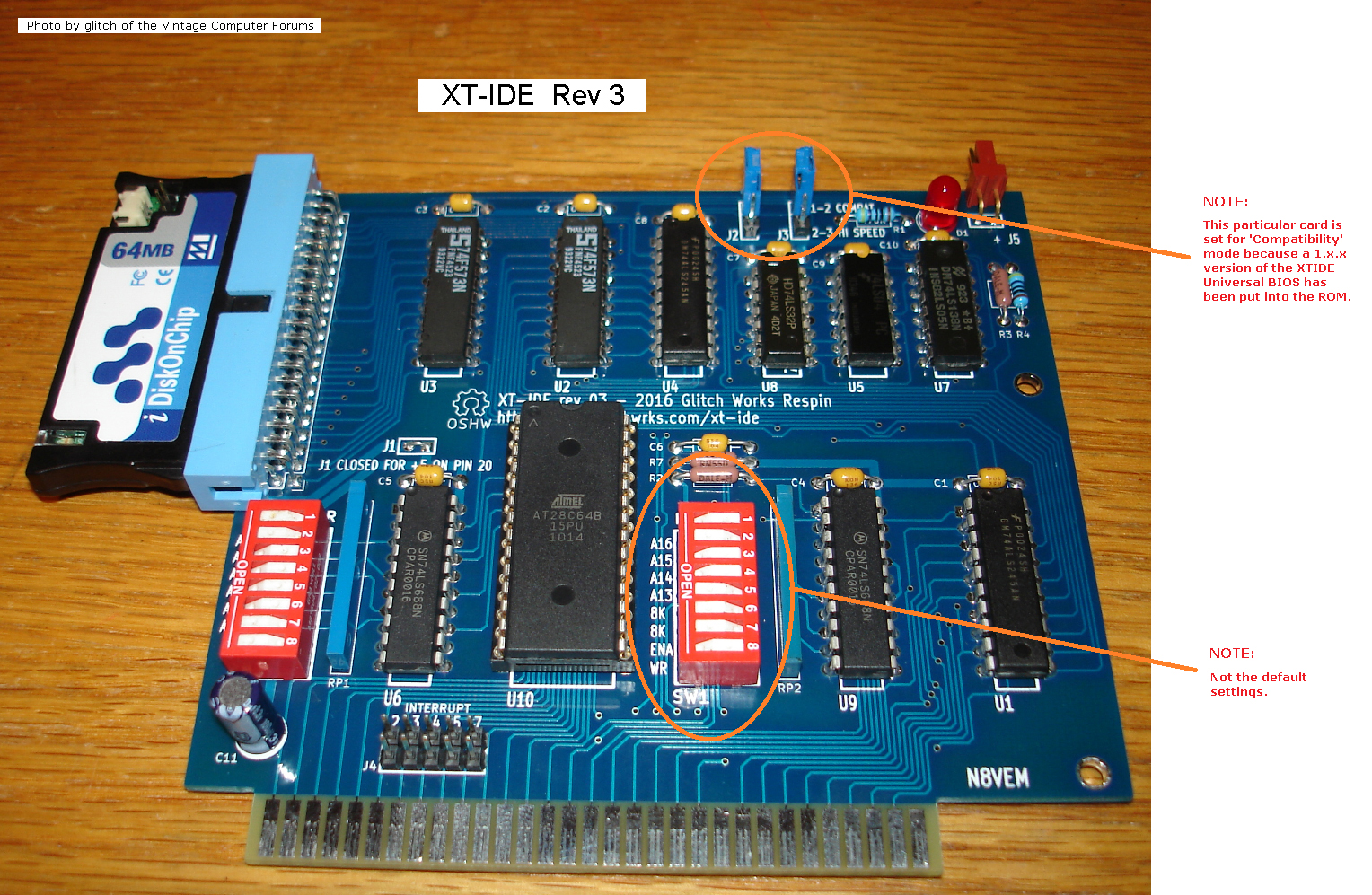

Glitch Works XT-IDE Rev 3

../rev_3/XT-IDE%20Rev%203%20-%20photo.jpg

Circa 2016.

Click on photo for larger view.

An enhancement of the Vintage Computer Forums XT-IDE Rev 2.

Information at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

See the relevant information at here.

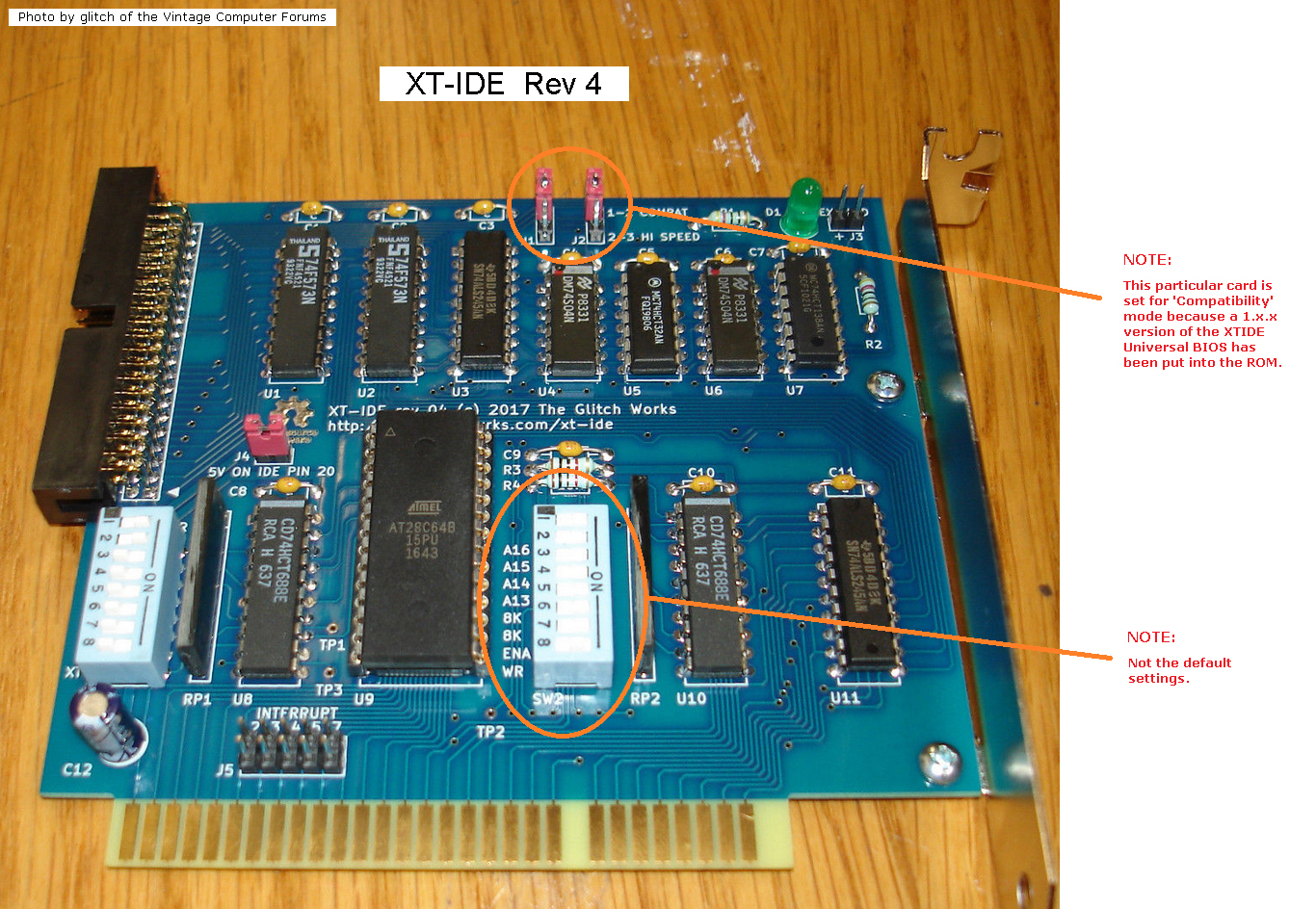

Glitch Works XT-IDE Rev 4

../rev_4/XT-IDE%20Rev%204%20-%20photo.jpg

Circa 2017.

Click on photo for larger view.

Information at here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

See the relevant information at here.

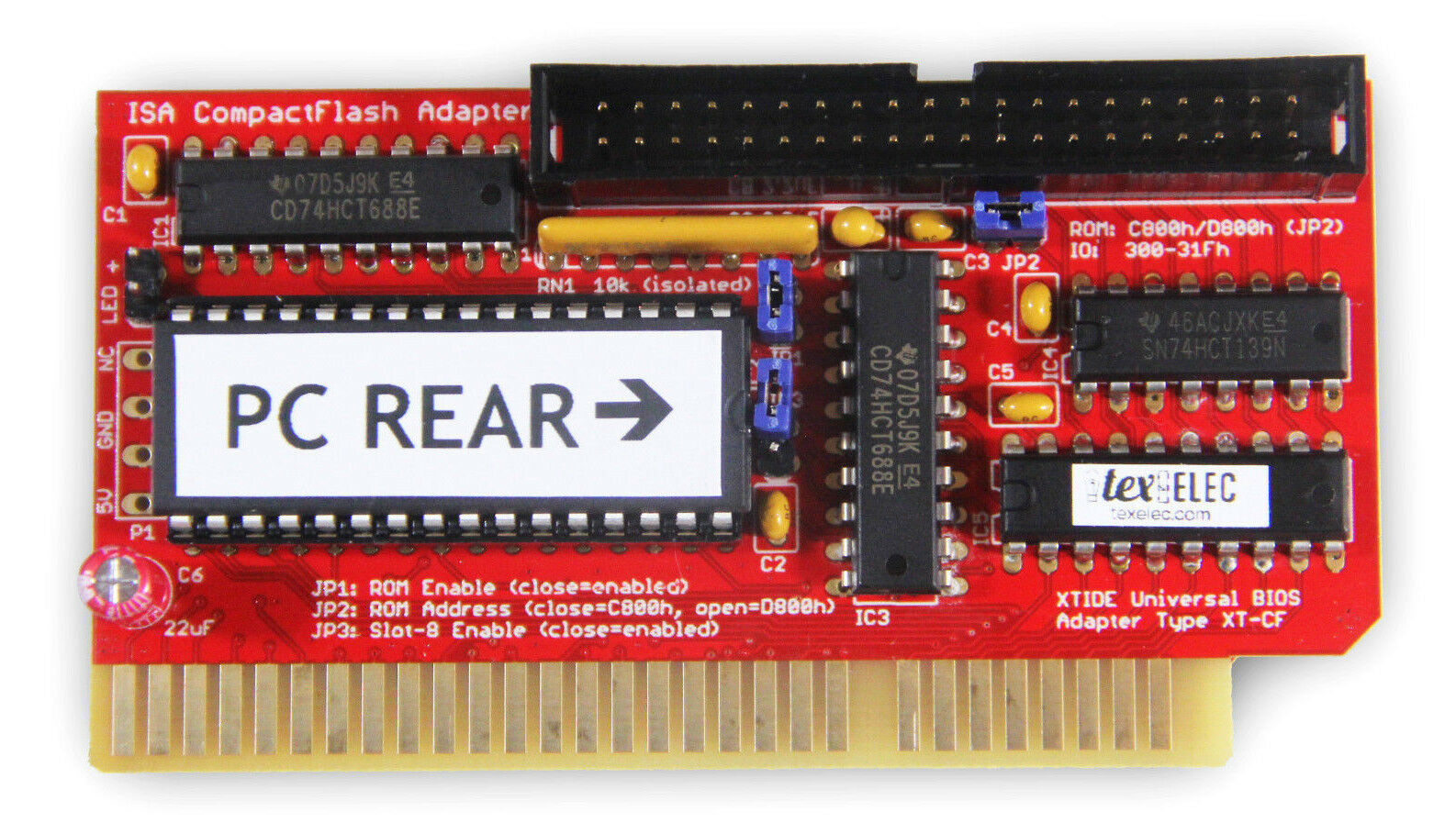

Lo-tech ISA CompactFlash Adapter revision 3


Click on photo for larger view.

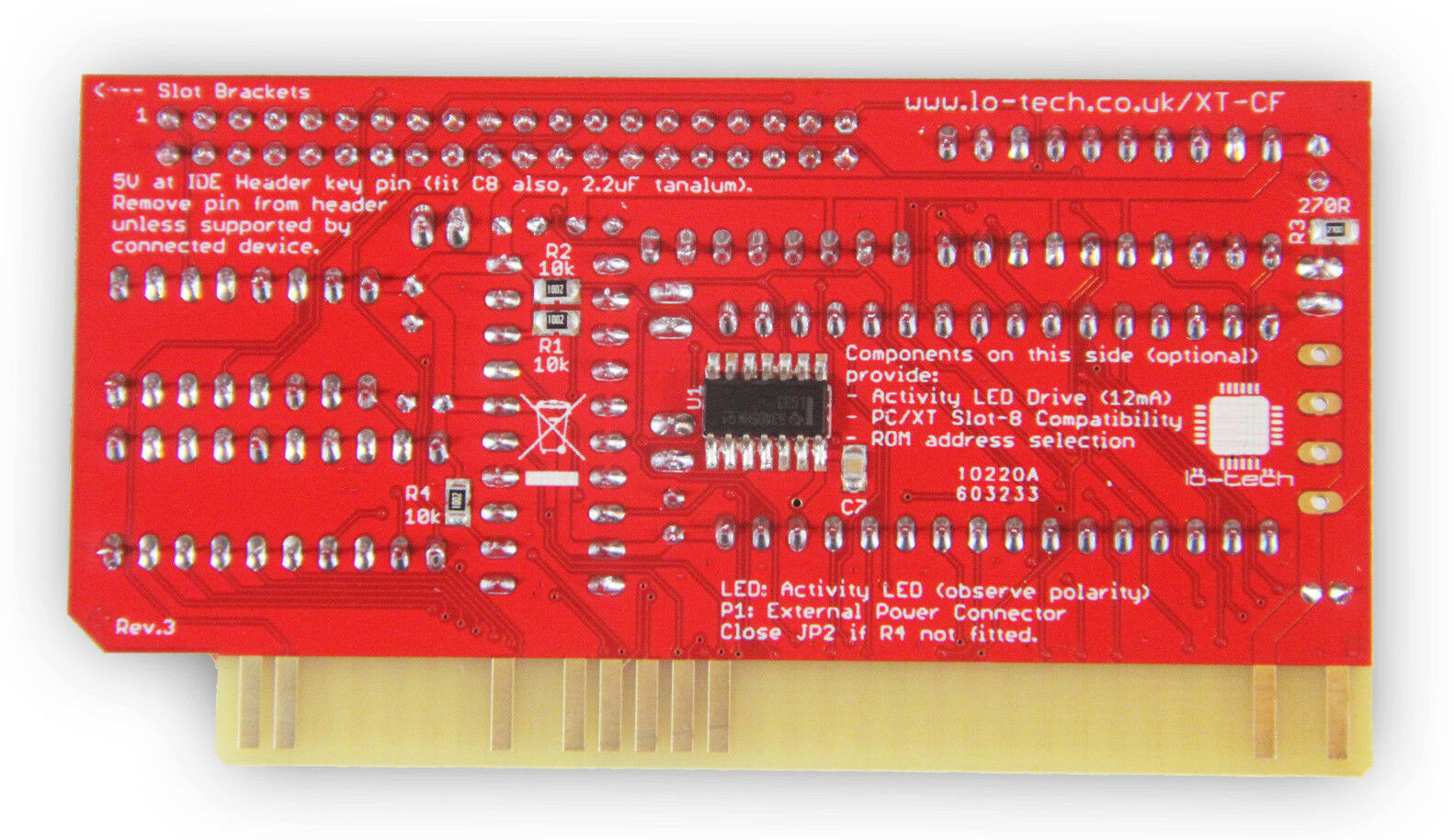

"Rev.3" appears on back of the card.

Intended to be used with a CF card and a CF-to-IDE adapter.

This particular card will require a CF card that works in 8-bit mode - the vast majority do, but not all.

The pictured one supplied by texELEC - see here.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

Based on "Adapter type XT-CF" printed on the front,
set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF PIO8' ('BIU 8' being the shortened form of that)'

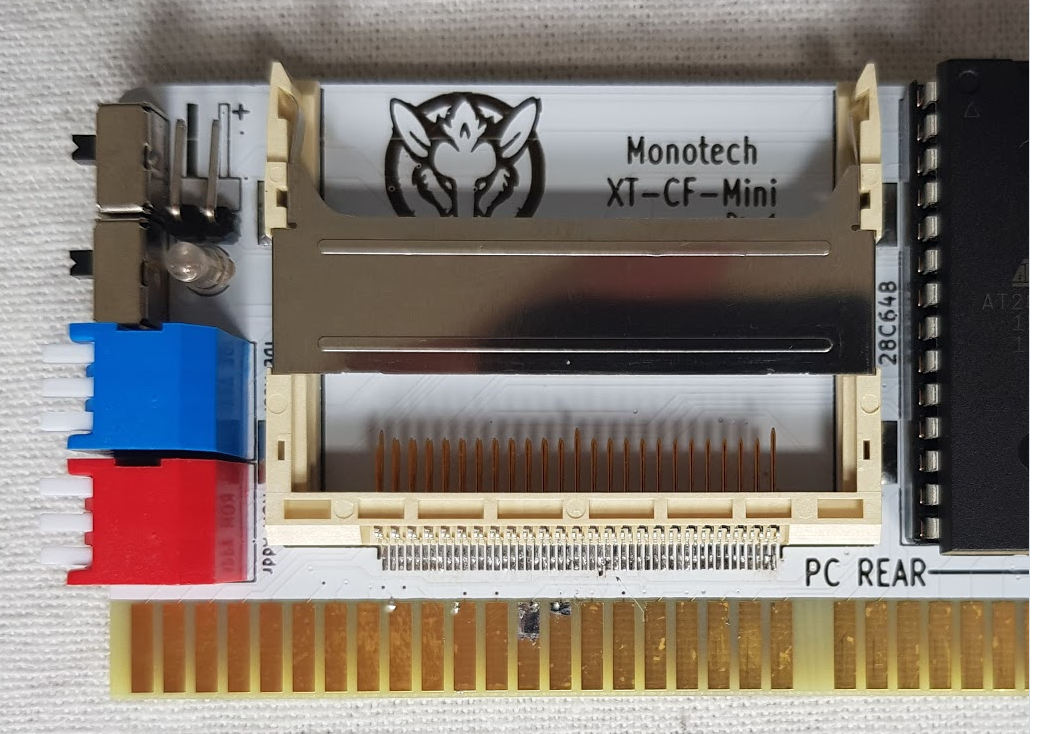

Monotech XT-CF-Mini Rev 1.1


Circa 2019.

Click on photo for larger view.

Web page at here. See the README.MD file.

This card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

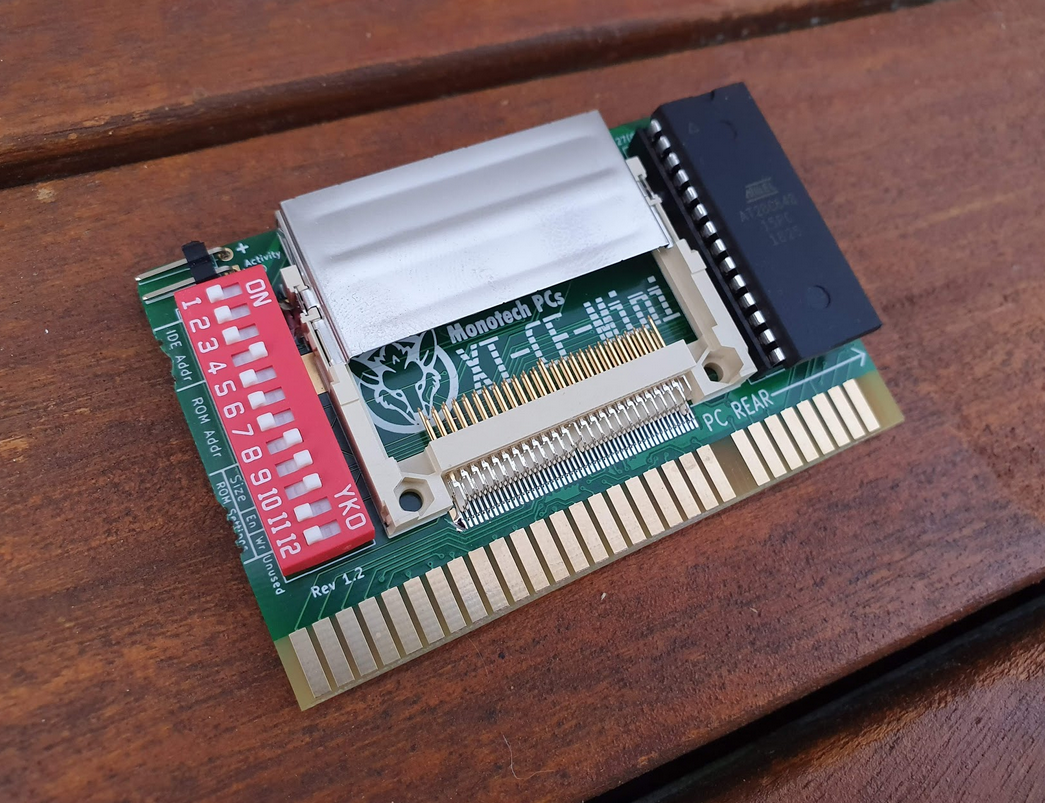

Monotech XT-CF-Mini Rev 1.2


Click on photo for larger view.

Monotech's advertising web page at here.

This card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

Per what is printed on card's back,
set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-CF PIO8' ('BIU 8' being the shortened form of that)'

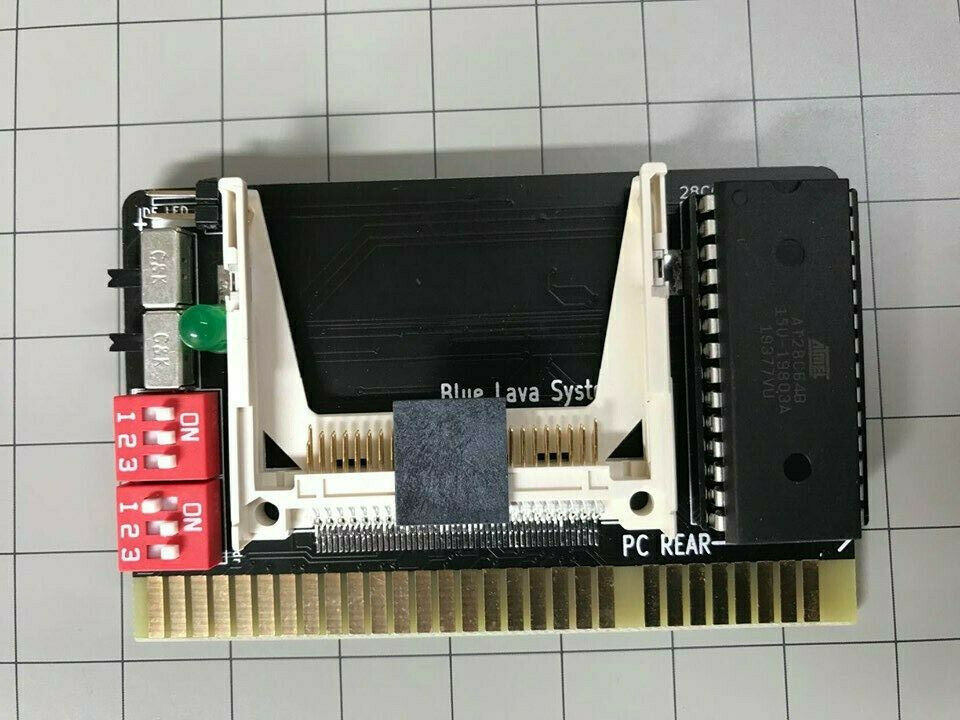

Blue Lava Systems XT-CF-Mini


Click on photo for larger view.

This is simply a rebranding of the 'Monotech XT-CF-Mini Rev 1.1'.

Click here for back.

Like for the 'Monotech XT-CF-Mini Rev 1.1', this card requires a CF card that works in 8-bit mode - the vast majority do, but not all.

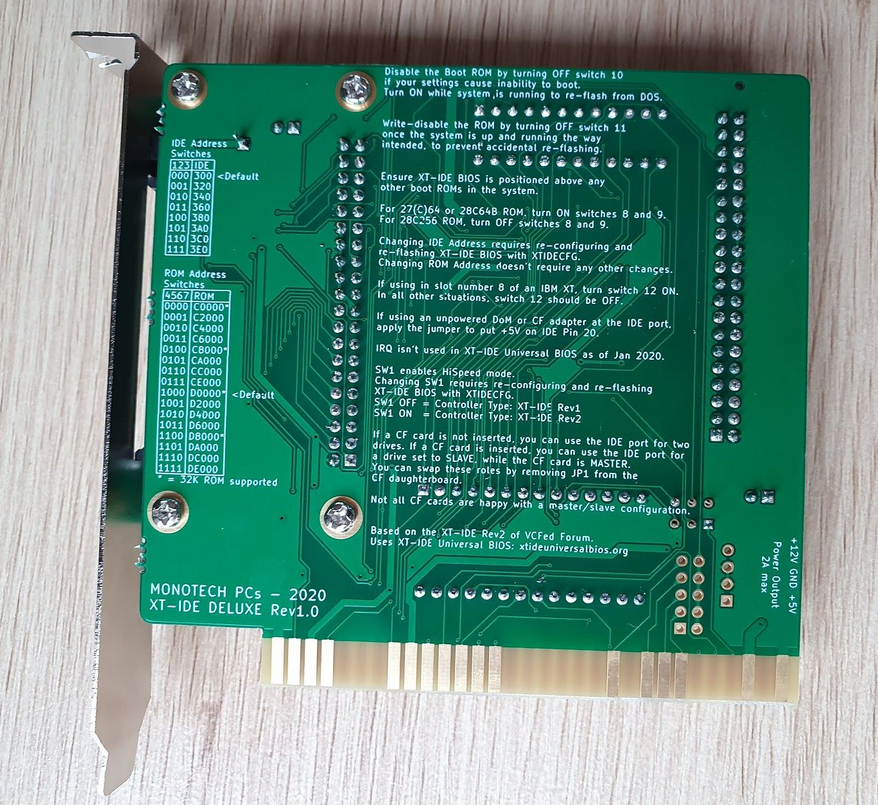

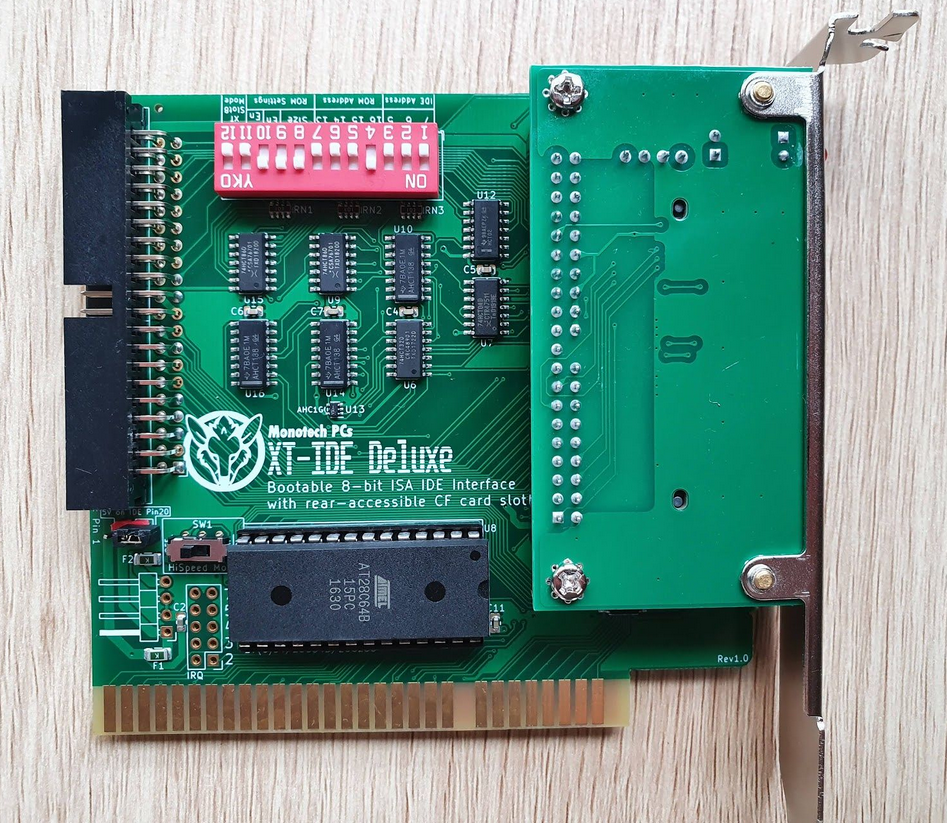

Monotech XT-IDE Deluxe Rev 1.0


Circa 2020.

Click on photo for larger view.

"Rev1.0" appears on back of the card.

Monotech's advertising web page at here.

Design information at here.

Does not require a CF card that works in 8-bit mode.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

If SW1 is OFF, i.e. hi-speed mode is OFF, set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-IDE rev 1'
If SW1 is ON, i.e. hi-speed mode is ON, set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-IDE rev 2 or modded rev 1'

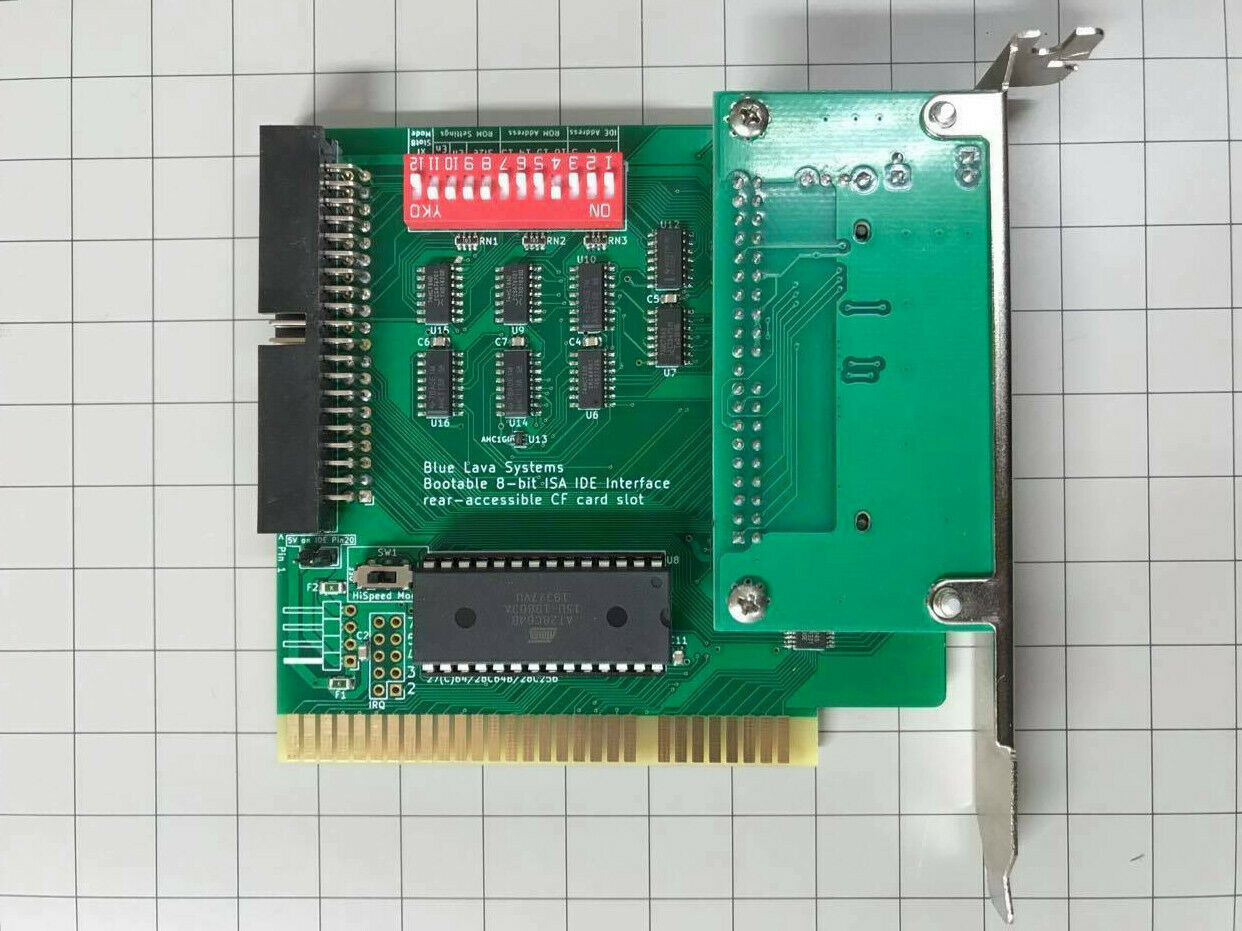

Blue Lava Systems XT-IDE Deluxe (XT-IDE CF+)


Click on photo for larger view.

This is simply a rebranding of the 'Monotech XT-IDE Deluxe Rev 1.0'.

"XT-IDE CF+" appears on back.

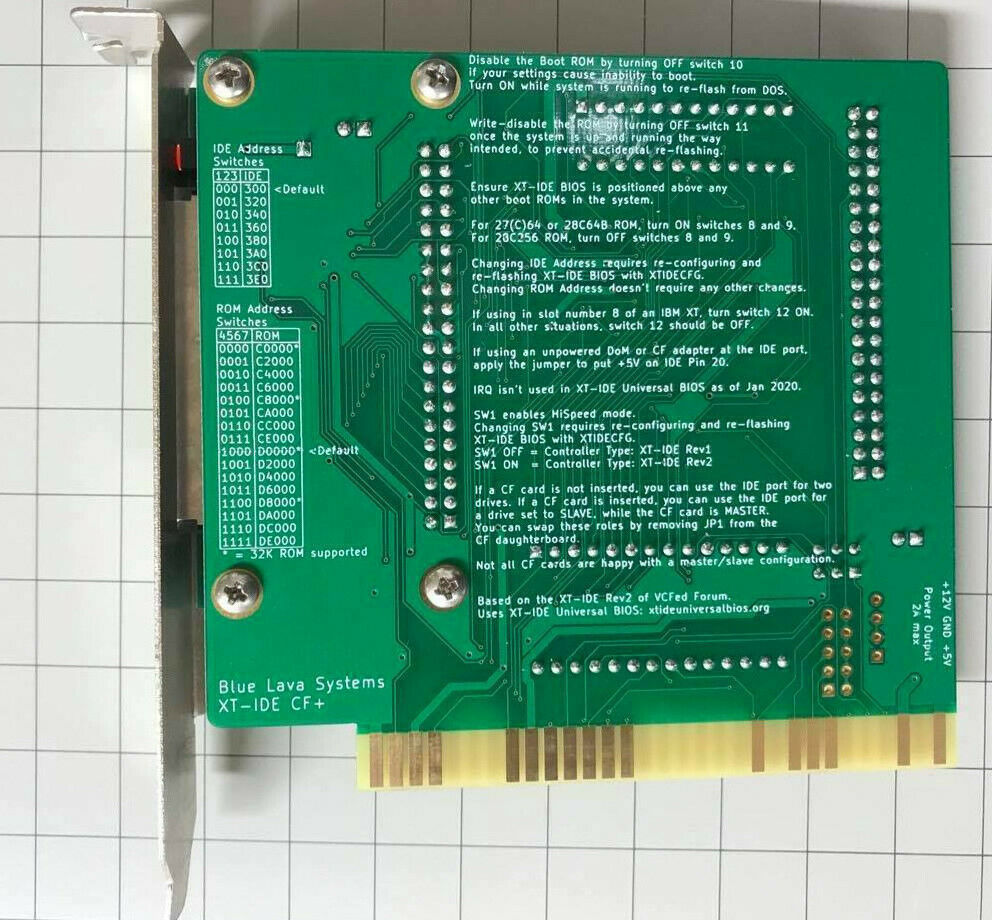

Click here for back.

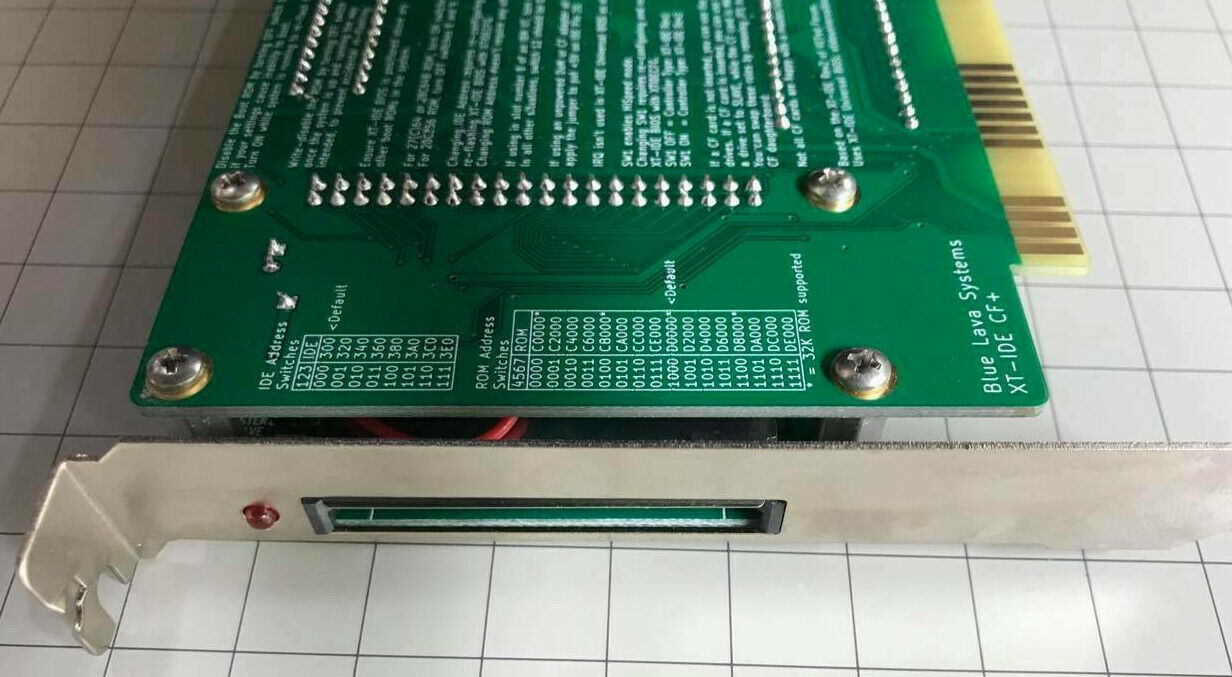

Click here for end.

Does not require a CF card that works in 8-bit mode.

Configuration of adapter/controller/device type in XTIDE Universal BIOS (a.k.a. XUB):

If SW1 is OFF, i.e. hi-speed mode is OFF, set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-IDE rev 1'
If SW1 is ON, i.e. hi-speed mode is ON, set the 'Device type' in XUB version 2.0.0 beta 3+ to 'XT-IDE rev 2 or modded rev 1'
