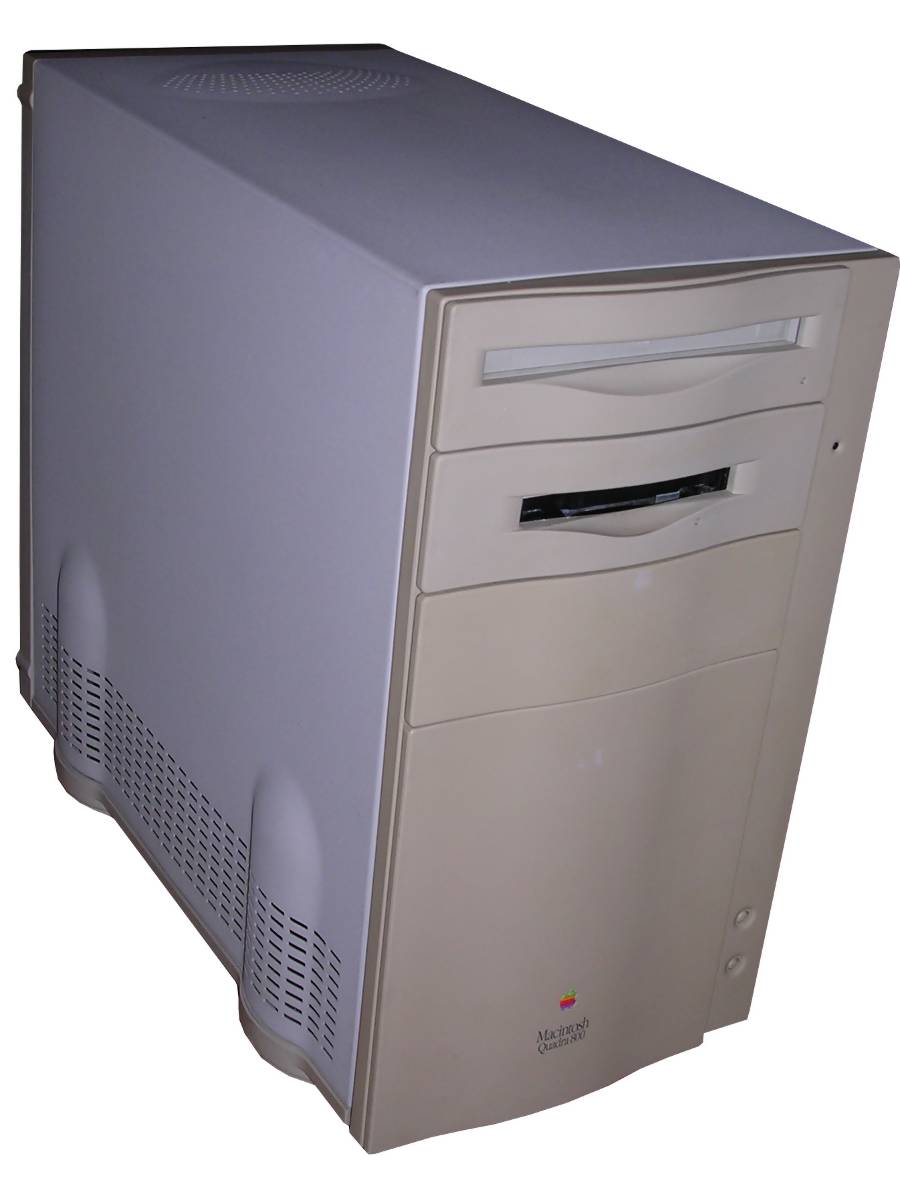

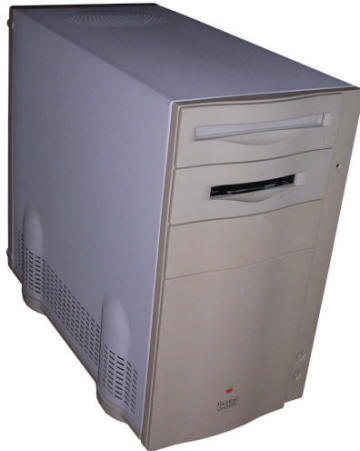

Macintosh Quadra 800
This particular model has been introduced as something
"in between" Quadra 700 (becoming
slower with CPU development) and Quadra 950,
a true high-end machine dedicated to larger projects. A speed-bumped
Quadra with 33MHz processor has a re-designed tower casing allowing for
better expansion. The CPU was as fast as Quadra 950, but a whole
computer was much cheaper and in less bulky casing. There also were a
few interesting options: It was possible to buy it with a 2X CD-ROM
drive, VRAM upgrade making it display as 950 or, in some cases, even a
video board. The hard disk was 230MB or, for bigger needs, 500MB.
Although generally well received, there were some negative opinions
mostly related to intentionally reducing VRAM to make Quadra 950 more
competitive.
Quadra 800 has been offered in a server version as Workgroup Server 80.
| Model No: | M1206 |
|
| Year: | 1993 | |
| Discontinued: | 1994 | |
| CPU: | Motorola 68040 33MHz | |
| RAM: | 24MB (16+8MB on board) | |
| Max. RAM: | 136MB | |
| RAM Type: | 4x72-pin SIMM | |
| Hard disk: | 500MB SCSI, 3.5" SL Also delivered with 230MB |
|
| Floppy drives: | 1 1.4M 3.5" | |
| Other drives: | SCSI, Caddy-based double-speed CD-ROM | |
| Graphics: | 1MB (originally 512k) Expandable with 2 VRAM SIMMs |
|
| Sound: | 1-channel | |
| Display: | External, 15-pin connector Some BTO options with video board. |
|
| Dedicated OS: | Mac System 7.1 | |
| Maximum OS: | Mac System 8.1 | |
| Expansions: |
-
ADB. - 4 SIMMs for RAM Expansion - ROM SIMM in some units - 2 VRAM SIMMs - 3 NuBus slots - CPU PDS Slot |
|
|
|
||
|
|
||
| Connectors: | - 15-pin video
connector - External SCSI port (DB25) - AAUI network card connector - 2 serial ports (RS-422) for modem and printer) - 2 ADB connectors for keyboard and mouse - Sound output - Microphone in |
|
My unit comes from a graphics studio, where it was used
with some graphics software. Unfortunately I don't know exactly for
what, as it came well sanitized, with German Mac OS 7.1 and a wallpaper
with a yellow symbol of German, football club :). A few smaller issues
have been corrected and 7.5.3 installed. Before, I experimentally tried
with 8.0.
So, from experience, even with 40MB of RAM, not 24MB, avoid 8.x-line as
graphics software will not run smoothly and system will be a bit slow.
Disassembly
The disassembly is similar to Power Mac
9500. Remove two rear screws and move the casing to the front. Rear
side stays in chassis, front side goes with metal casing. Remove two
stands by pressing latches, one between drives and PSU, another between
bottom and drives, parallel to mainboard (in Power Mac 9500 there is a
fan). All drives are sliding out towards front by pulling or pushing the
latches. It is also possible to remove speaker assembly.
To remove mainboard, remove the reset/debug buttons first by unlocking
latches. Remember how it goes in as it looks like it won't fit in holes,
but it fits there. Now remove a single screw on the mainboard plate, on
the solderside of the board. Disconnect power cables, SCSI. Now unlock
two latches on the top to unlock top of mainboard. Slide the board
towards front and open. The distance should be enough to remove
additional wires connected to mainboard to remove the rest, or to
add/remove RAM and replace RTC battery.
Unfortunately there is no easier way to remove or
replace RAM or battery.
