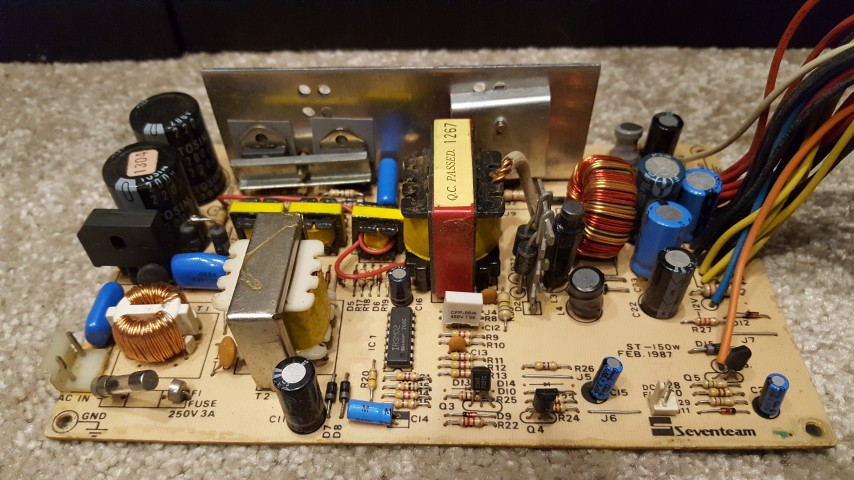

In part 3 I plan on transplanting the circuit board from the new M-300U PSU into the original Seventeam PSU casing in order to retain the old-skool big red power switch, cooling fan and possibly even solder in a mains passthrough to the monitor power socket (modern power supplies don't provide power for a monitor - I think it's a nice touch as you have a single plug for your whole computer into the wall, and the monitor can auto-power on when you switch the computer on!).

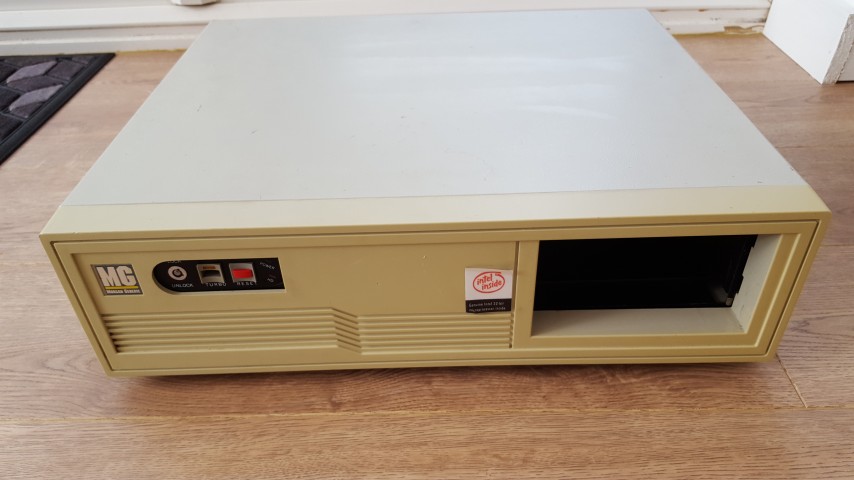

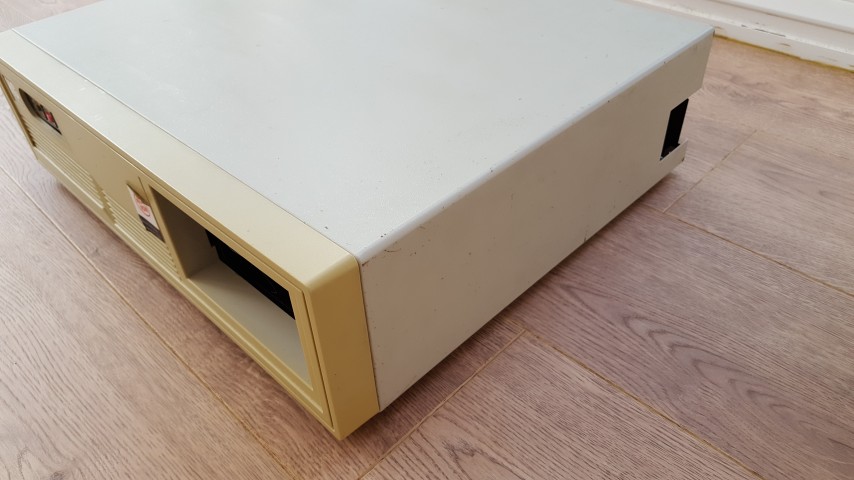

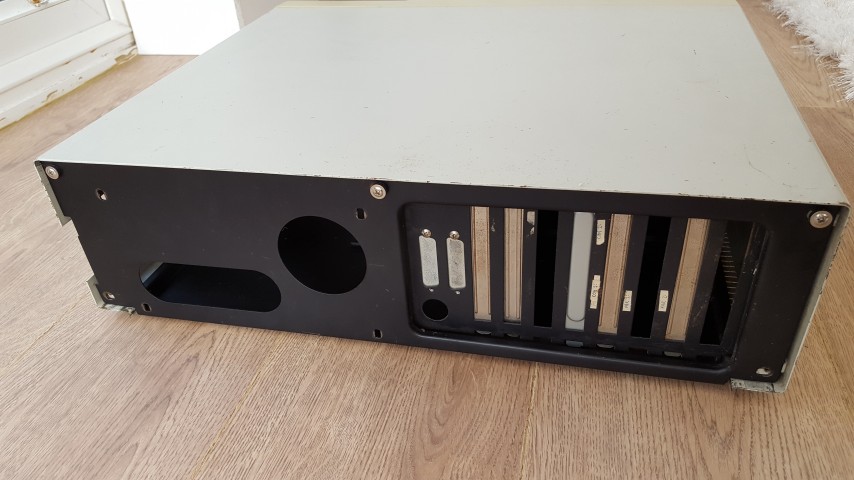

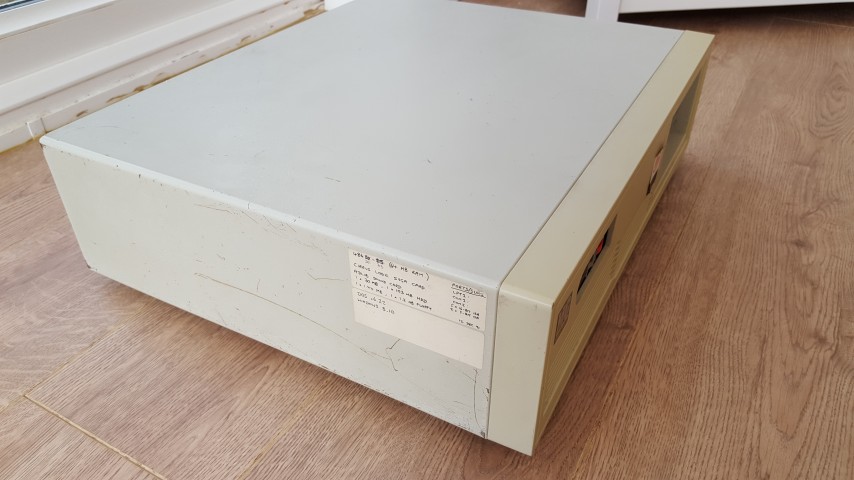

Onto the front panel, and this isn't in too bad a condition - just the Turbo switch and LED appear to be missing:

I love how they took the time to have their own logo manufactured - it's a proper metalised piece too, just like on an IBM!

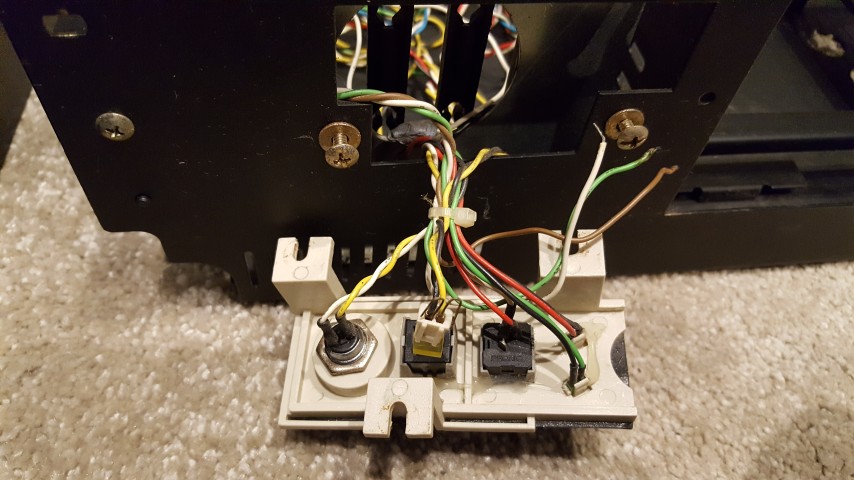

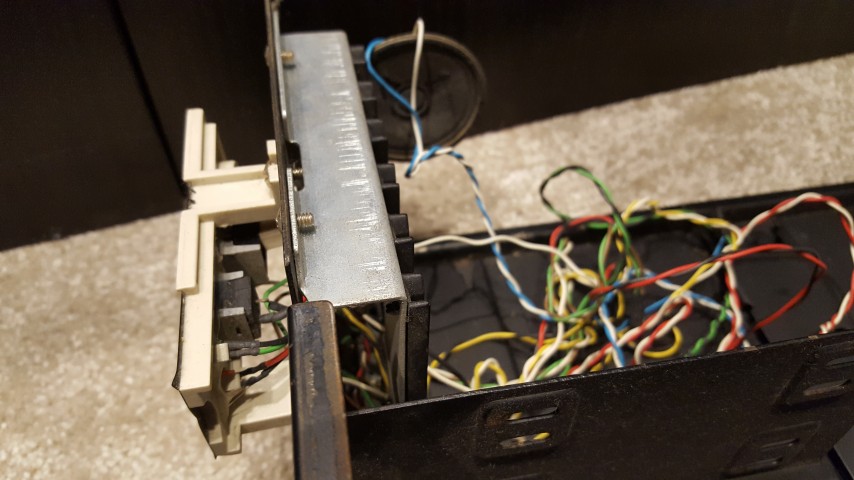

Here's the front panel as it is mounted to the case front, and removed:

So there's a little bit of repair work to be done here. The front panel is missing its green Turbo switch and the Turbo LED isn't in it's housing. Apart from that it's not looking too shabby. If I'm being picky the keylock is a bit banged up but that's a minor point.

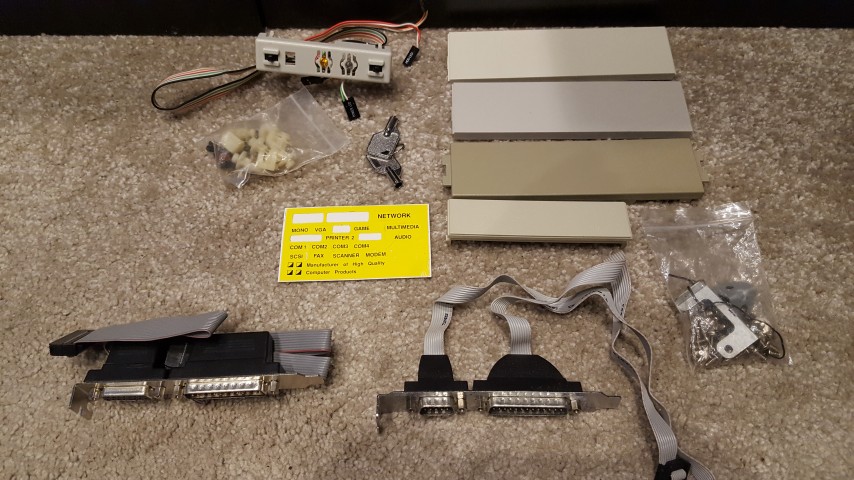

Looking through my old PC parts bin I couldn't find the green turbo button, but I did find some other goodies that I could possibly use for this project:

There's a front panel unit from a mini tower with some switches installed, 4 drive bay fascias of different shades, some motherboard standoffs and screws, a set of keylock keys, some stickers for the expansion slots, a bag of metal mounting brackets and screws and two expansion slot faceplates with ports on. The left has a game port and a serial port and the right has 2 serial ports.

First off, let's see if one of those front panel switches will work to replace my Turbo switch. Of course being a Turbo switch it needs to be a true 'push to make' switch, not a momentary switch like 'Reset'. There are two switches on this panel, one marked Reset SW and the other Power SW. I took my mulimeter to the Power SW one since Reset switches are always momentary. Unfortunately the power switch is momentary as well, which means this panel came from an ATX system where a single 'power on' signal is all it needs. Shame. The metal brackets I'm thinking I can use with the new PSU - I need to make sure the much smaller circuit board is safely elevated off the floor of the large Seventeam PSU casing.

Back to the front panel, now is a good time to write down the wiring colours...

All of these are pins on the XT's motherboard with the exception of the hard disk LED, which will be connected to the XT-CF Lite's LED pins in the top-left corner of the board.

Since I'm now waiting for a number of parcels to arrive, let's get the board into the case and wired up...

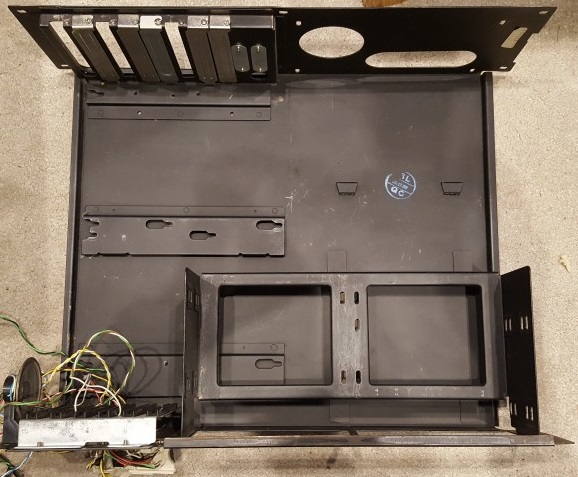

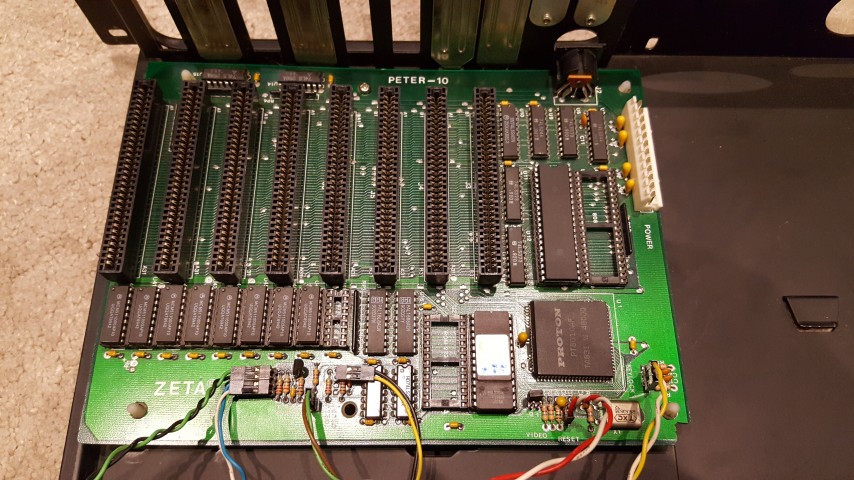

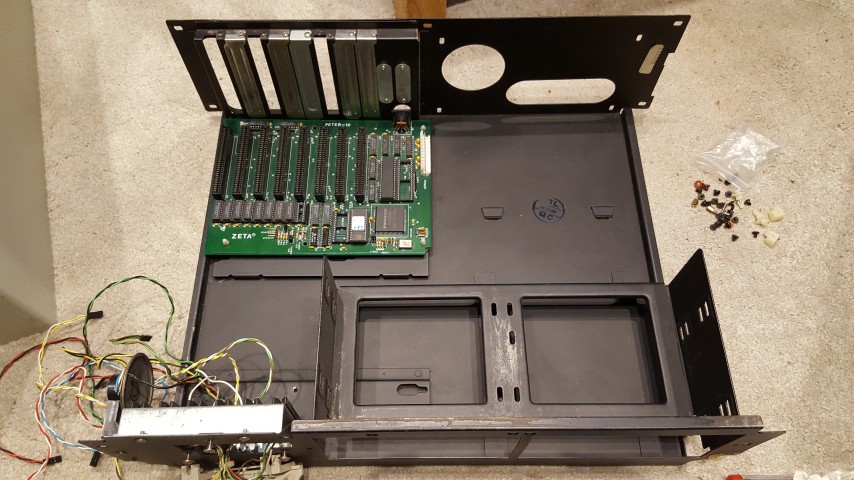

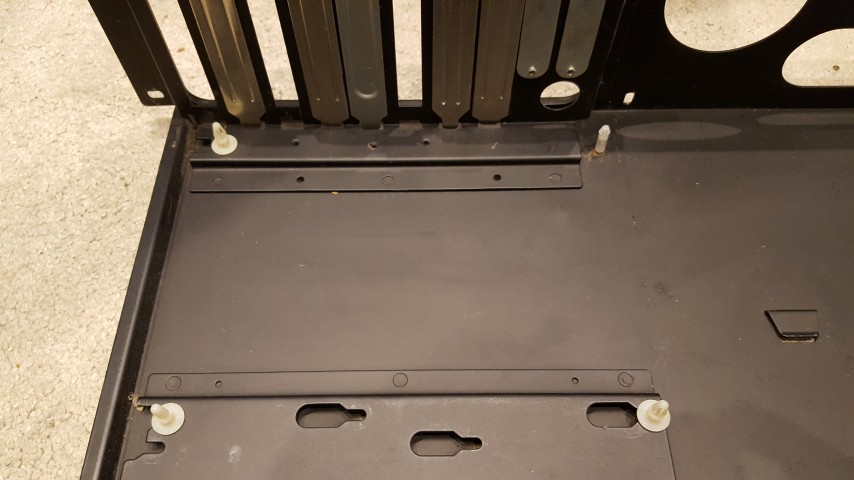

Clockwise from top-left: (1) empty case, (2) motherboard standoffs in place, (3) board in, (4) front panel wiring installed.

Now to get some cards installed. Currently I'm trying to get this back to 'stock', or as close as possible.

You've already seen my Hercules card(s) in part 1 - now onto the floppy disk controller. I actually don't have an XT-class floppy disk controller that would have been used back in 1990 - one that only supports drives up to 720 KB. The only card I have is really one of my planned "upgrades":

It's a multi-I/O card much like the original that came with this computer, though this one has its own ROM BIOS in order to support high-density floppy drives in an 8-bit PC - what an upgrade that would have been in 1990! The card also features a realtime clock, 2 serial ports, parallel port and game port. That's a lot of bang for the buck in a single card!

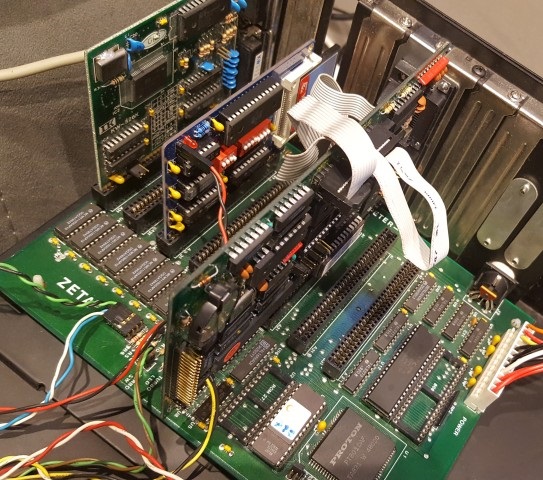

And into the case it all goes...

next to one of those expansion slot faceplates - the one with the two serial ports - one 9-pin and one 25-pin, since the card has its parallel port on the card backplate.

I installed my original 360 KB 5.25" floppy drive and this works (at least, the light goes on when I request the A: drive - getting a disk to read is another story - more on that later!). However, the 3.5" 720 KB drive that I got about 7 months later (Christmas 1990) doesn't want to work with this controller. I moved it to my main retro PC and it worked just fine, including reading disks, so there's something odd going on with this floppy disk controller and the drive.

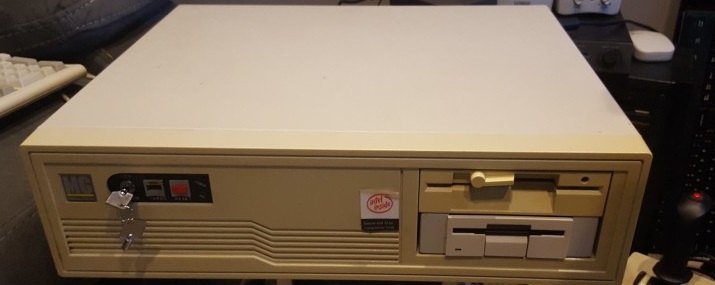

Anyway, here's a pic of the drives both installed as it was after Christmas 1990 (please forgive the mess in my den - I have four PCs in here right now, some in bits, monitors and cables everywhere):

Somehow, my 3.5" drive looks wrong - it came with this metal 5.25" drive bay housing that you see in the pics, but I'm certain it used to be flush with the front rather than protruding - it just seemed to want to sit 'outside' like you see here. I do love this 3.5" 720 KB drive though, partly because it's so unique with it's eject button underneath - I had not seen that anywhere before apart from the Commodore 1541, and not since* so get in touch if you've seen this design anywhere else (btw, this drive is a YE-Data YD-645B. You will find nothing on the web about this drive - it's not even in the DOS Days list of floppy drives, but it has a real retro vibe - it had that even when I got it brand new - when I first unboxed it I was aware of what a typical 3.5" floppy drive looked like with the little eject button to the right side, but this little guy soon won me over with its charm!

*Actually, I saw this advert in PC Magazine, 24th November 1987, which has a similar eject button on a 5.25" drive! According to the ad, these are low-density "direct drive" (not belt driven) ones and are a famous brand.

**UPDATE! EEPROM Programmer and 5 EPROM Chips have arrived**

Pretty good delivery time, about 4 days. I unboxed the Programmer and was a little underwhelmed - it didn't come in the blue box as pictured before - it was just in a small cardboard box for shipping, and then bubblewrapped in there. Hmm, makes me wonder if it's a brand new item or not.

Anyway, rather than trying to dig out a CD-ROM drive for the mini-CD-ROM included in the box, I downloaded the EPROM programming software from here:

https://icmasteronline.com/product/xp8710-universal-usb-icsp-programmer/

The downloaded file was called SetupXP8710.rar, and contained a single file called SetupXP871.exe. About 4 MB in size.

Once the installation was nearing completion, this ambiguous prompt appeared:

To which I'm thinking 'this USB driver has not been installed, but I do have a USB driver already installed. So should I hit Install or Cancel?

I decided to hit 'Install':

It then asked me if I was sure I wanted to install the driver, along with a box that said 'Always trust software from Shengzen...' which I unticked and proceeded:

The full Driver Name in the screenshot above read: (MiniProWdf) WDFMiniPro (06/22/2012 1.0.0.0). An oldie but a goodie I hope! Incidentally, the TL866 programmer I referred to before is called the MiniPro, so this XP8710 product is either the same under the hood or it just uses the same software.

Anyway, I fired up the "XP8710 Software" app from my desktop:

I started with a Self-Test of the Programmer:

To tell the software what chip I had inserted, I went to "Select IC" in the top-left corner and tried to locate the one I have:

So unfortunately, there is no Mitsubishi 2764 in the supported ICs list. A quick Google told me the TL866 range don't have this either. The one I highlighted above is a compatible chip, however. Both have identical pinouts and operate on 5V, and both enter programming mode with +21V on pin VPP.

After choosing the IC, it gives some parameters that are selectable at the bottom:

I then chose the Device menu and picked the 'Read Chip' option. It popped up with a graphic reminder of the chip's orientation, and I clicked 'Read'. As expected since the EEPROM's quartz window is exposed to UV light, the chip is empty (0xFF in all bytes). So now is the time to cover up the window.

I then chose 'Open File' and located my dumped ZETA P-10 .bin file (the 8 KB one):

followed by Device menu -> Program Chip. I quickly got this error after starting the burn:

After playing around with a few of the settings, I have come to the conclusion that the programmer or the EEPROM itself is very susceptible to minor changes in voltage . I changed the USB port I was using and decreased the Vdd Write setting to 5.0V.

If all goes well you get something like this:

It's always a good idea to run the Verify operation just to be sure the chip has the same code on it as what's in the buffer (the .bin file you loaded):

So there we have it - I have duplicated the P-10 ROM BIOS successfully in case my original dies.

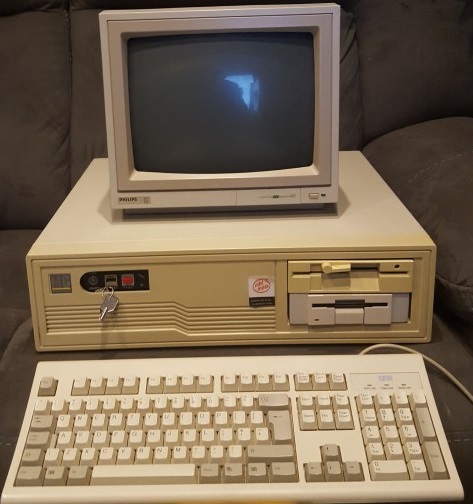

Putting the monitor on top and a keyboard in place for the [almost] full effect...

Ah yes, that's how I remember it... undersized monitor, or oversized system unit - whichever. I learned to program in Pascal and C on this baby.

**UPDATE 25th Nov 2020: It's now been nearly 2 weeks since my order went to Scan Computers, so I'm really not too happy with their service. The primary item in this order is the CIT power supply, so I've had to delay work on this project until that arrives. Keep checking in for Part 3, which I hope to get completed in the next week**

**UPDATE 29th Nov 2020: OK, the new power supply is not coming - Scan don't know when they will next have it in stock, so I cancelled the order. I've found another modern ATX supply in my collection which should do the trick instead:


Also from CIT, though this one's about 10 years old - model M-400U. Most importantly, it handles up to 20A on the +5V line and 21A on the +12V line so good for an XT/AT.

It's been a good journey so far, but we're not quite there - I have grand plans to put into action in Part 3!
